Ebern Designs 110V LED Table Lamp
Quick guide for the Ebern Designs 110V LED Table Lamp. Learn how to assemble, charge, operate the touch dimmer, and maintain your lamp.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Ebern Designs 110V LED Table Lamp is a rechargeable lighting fixture. Before first use, it is recommended to fully charge the lamp. It requires a qualified power adapter with a SELV output of 5V, 2A (not included). The lamp features a touch dimmer switch for brightness adjustment and has a built-in 5000mAh battery providing 12-24 hours of light depending on the intensity.
Package contents
- Lamp body (A)
- Rubber washers (B) - 2 pieces
- Shade (C)
- Cap (D)
- Finial (E)
- USB cable (F)
Assembly instructions
- Place the first rubber washer (B) onto the nipple of the lamp body (A).
- Place the shade (C) over the nipple.
- Place the second rubber washer (B) on top of the shade.
- Place the cap (D) over the nipple.
- Secure the assembly by threading the finial (E) onto the nipple. Hand-tighten until snug.

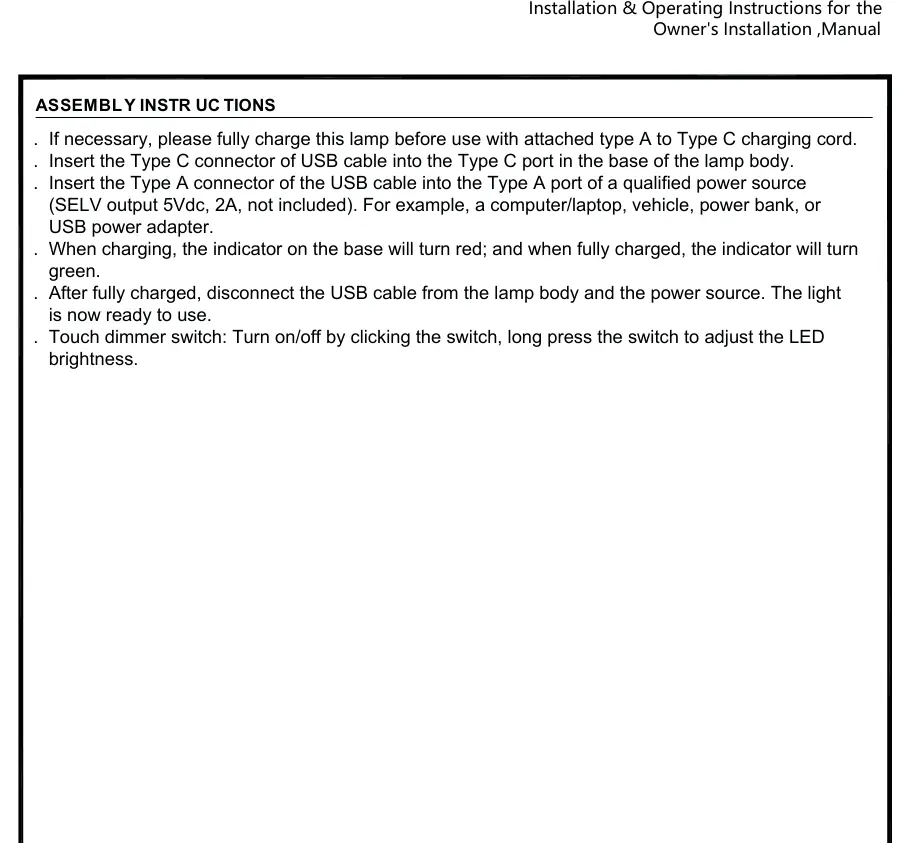

Charging and operation
Charging: Insert the Type C connector of the USB cable into the port on the base of the lamp. Connect the Type A end to a qualified power source (5V, 2A). The indicator on the base will turn red while charging and green when fully charged. Disconnect the cable once charging is complete.
Operation: Use the touch dimmer switch to control the light. Click the switch to turn the lamp on or off. Long press the switch to adjust the LED brightness.
Care and maintenance
Always ensure the electric current is turned off before cleaning. Use a soft, moist cloth with mild non-abrasive soap to clean the fixture. Never use glass cleaner, as it will damage the metal finish. Glass shades may be washed in a towel-lined sink with warm water and mild soap; do not wash them in an automatic dishwasher.
Troubleshooting
If the lamp does not light, ensure the lamp is charged. If the issue persists, the power adapter may be broken and should be replaced.
Practical help
Common problems
Lamp does not light
Charge the lamp or replace the power adapter.
Before use
- Ensure you have a qualified power adapter with SELV output 5V, 2A (not included).
- Fully charge the lamp before first use.
- Verify all parts (A-F) are present.
- Ensure the surface is stable.
Show more Show less
Specs in practice
- Battery Capacity
- 5000mAh, providing 12-24 hours of operation depending on light intensity.
- Charging Time
- Approximately 5 hours to reach full charge.
Images and diagrams
- Assembly sequence: Lamp body -> Rubber washer -> Shade -> Rubber washer -> Cap -> Finial.
Model compatibility
- LED bulbs are non-replaceable.
- Do not wash glass shades in an automatic dishwasher.
