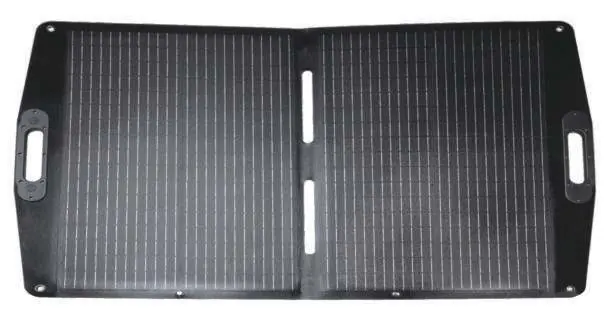

User Manual for Eco-Worthy 100W and 200W Portable Solar Panel
Quick guide for the Eco-Worthy portable solar panel. Includes technical specifications for 100W and 200W models, safety precautions, and support contact information.
Table of contents
Quick guide from the manual
This manual provides instructions for the Eco-Worthy portable solar panels, available in 100W and 200W versions. The panels are designed for portable power generation. Ensure the panels are fully extended during use and placed on a stable, flat surface to maximize efficiency. Avoid any obstructions like trees or buildings that may cast shadows on the panels, as this significantly reduces charging performance.
Technical Specifications
The panels feature specific electrical characteristics based on the model:
- 100W Model: Maximum Power (Pmax) 100W, Voltage (Vmp) 18.2V, Current (Imp) 5.5A, Open Circuit Voltage (Voc) 21.8V, Short Circuit Current (Isc) 5.85A.
- 200W Model: Maximum Power (Pmax) 200W, Voltage (Vmp) 25.0V, Current (Imp) 8.0A, Open Circuit Voltage (Voc) 30.0V, Short Circuit Current (Isc) 8.48A.
- Common Specs: Module Efficiency 23%, Cable length 1.5 meters with MC4 to DC8020, DC7909, XT60 connectors.
Packing List
Each package includes:
- 1x Portable Solar Panel
- 1x Wire (Cable)
- 1x User Manual
Safety Precautions
Follow these guidelines to ensure safe operation and longevity of the equipment:
- Connect devices strictly according to positive and negative polarity markings to avoid equipment damage.
- Do not use in extreme weather conditions such as heavy rain, hail, or strong winds.
- Do not clean the equipment while it is powered on to avoid electric shock.
- Do not disassemble or modify the circuitry or batteries.
- Be careful of pinching hands when folding or unfolding the device.
- Do not use sharp objects to scratch the panels.
- Wipe the surface regularly with a soft cloth or sponge dipped in a neutral cleaner.
- Ensure the device is completely dry before folding and storing to prevent mold growth.
Technical Support
If you experience technical problems, contact Eco-Worthy support:
US & CA: 1-866-939-8222
DE: +49 6175 6514 999
UK: +44 7553 406988
Email: [email protected]
Website: www.eco-worthy.com
Official resources from the manual
Manufacturer information
ECO-WORTHY
Practical help
Common problems
Charging efficiency is low
Ensure panels are fully extended and free from shadows (trees, buildings). Note that efficiency significantly decreases in winter or on cloudy days, which is normal.
Equipment damage
Ensure correct polarity when connecting devices. Reverse connection may cause damage.
Before use
- Ensure the solar panels are fully extended.
- Place on a flat and stable surface to prevent tipping.
- Check for obstructions that may cast shadows.
- Verify polarity markings before connecting cables.
- Ensure the device is dry before folding for storage.
Model compatibility
- Includes 1.5m cable with MC4 to DC8020, DC7909, and XT60 connectors.
