Ecosmart FLEX 18IL Island Fireplace User Guide

Quick guide from the manual

The Ecosmart FLEX 18IL is an island fireplace designed for both indoor and outdoor use. It features a zero-clearance construction, allowing it to be framed into wood or metal studs. The unit uses clean-burning e-NRG bioethanol fuel. Before installation, verify that your cut-out dimensions match the physical model dimensions provided in this manual.

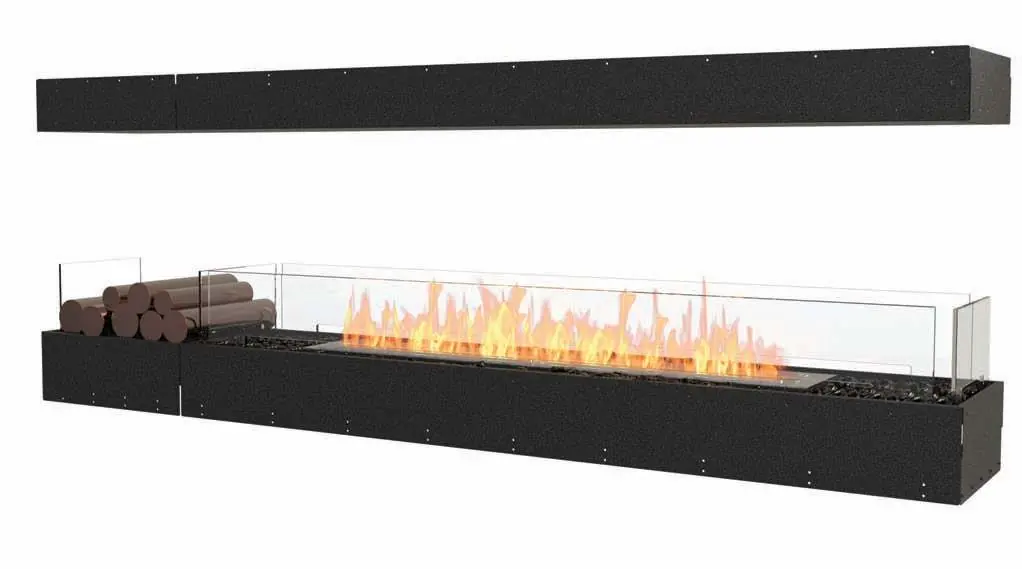

Product Overview

The FLEX 18IL is built to last with zinc-sealed steel construction and a high-temperature black powder-coated finish. Key features include:

• Clean Burning: Fueled by e-NRG bioethanol.
• Toughened Safety Screen: Integrated windscreen sits flush behind the frame to stabilize the flame in windy conditions.
• Room Divider Application: Four-sided fireplaces allow viewing from the front, back, and sides.
• Zero Clearance: Allows for flexible installation into wood or metal studs.

Technical Specifications

The following specifications apply to the FLEX 18IL (Model ESF.1.FX.18IL):

• Weight: 22.2kg (including burner, glass, and charcoal).
• Burner: AB3 x 1.
• Volume Capacity: 2.5 Litres.
• Burn Time: 8 - 11 hours (approximate).
• Heats on Average: Over 20 square metres (when used indoors).
• Minimum Room Size: 40 cubic metres per fireplace.

Accessories

The following items are included with your fireplace:

• Jerry Can
• Lighting Rod + Lighter
• Operations Manual
• Baffles
• Black Glass Charcoal

Optional decorative steel log sets are available for purchase separately. Note that decorative logs must NOT be placed directly over an open flame; they are designed to sit near the heat.

Safety and Installation

Ensure the fireplace is installed in a location that meets the minimum room size requirements. Always verify physical model dimensions against cut-out dimensions before beginning installation to ensure tolerances align. The fireplace is compliant with global standards, including UL Listed, EN 16647 BSI Certified, and ACCC Safety Mandate compliant.
