User Manual for Ecosmart FLEX 122IL Island Fireplace

Quick Guide

This document serves as an overview for the Ecosmart FLEX 122IL Island Fireplace series. It outlines key features, model specifications, and safety guidelines. Please note that for detailed installation procedures and clearance requirements, you must refer to the separate Clearance & Installation Manual.

Product Overview

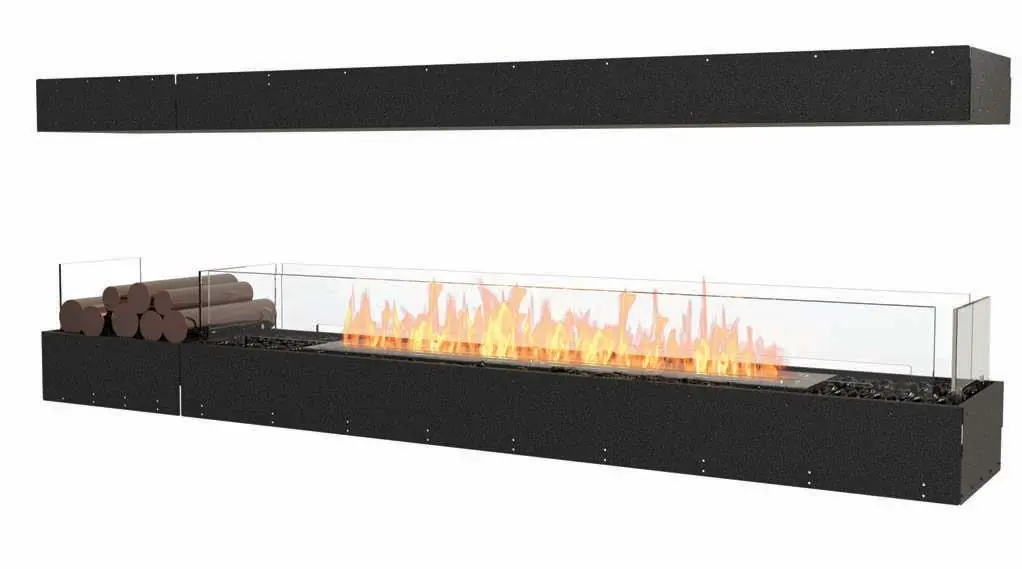

The FLEX 122IL is a zero-clearance bioethanol fireplace designed for both indoor and outdoor use. It features a toughened safety screen to stabilize the flame in windy conditions and is constructed with zinc-sealed steel and high-temperature black paint. The unit is designed to be framed into wood or metal studs.

Model Variants & Specifications

There are three main configurations for the FLEX 122 series:

• 122IL (Flame Only): Features 3 burners, 9L capacity per burner, 8-13 hours burn time.
• 122IL.BX2 (Left & Right Decorative Boxes): Features 2 burners, 9L capacity per burner, 8-13 hours burn time.
• 122IL.BX1 (Left Decorative Box): Features 2 burners, 10L capacity per burner, 9-14 hours burn time.

Note: The 122IL.BX1 model can be rotated so the decorative box sits on the right side.

Safety & Usage

• Fuel: Use only clean-burning e-NRG bioethanol.
• Decorative Logs: If using optional decorative steel logs, do not place them directly over an open flame. They are designed to sit near heat, not over flames.
• Installation: The zero-clearance design allows for framing into wood or metal studs. Verify all dimensions against cut-out requirements before beginning installation.
