EDEN 16030EDAMZ 5 Pattern Rotary Sprinkler Head

Product Overview

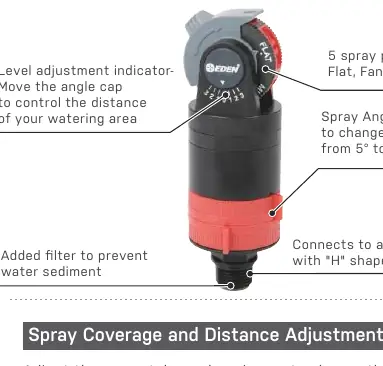

The EDEN 16030EDAMZ is a versatile 5-pattern rotary sprinkler head designed for efficient garden irrigation. It features an integrated filter to prevent water sediment buildup and is compatible with various Eden sprinkler bases, including H-shape and tripod models. The device allows for precise control over watering coverage and distance, ensuring water is directed exactly where needed.

Spray Coverage and Distance Adjustment

Users can customize the watering area using two primary controls:

• Spray Angle: Adjust the range tabs to set the spray angle anywhere from 5 to 360 degrees.
• Distance Control: Move the angle cap to adjust the arc of the water. Higher levels (1-3) create a higher arc for maximum distance, while lower levels (3-1) direct the spray downwards to reduce the watering area. Level 0 provides a balance between dispersed and concentrated coverage.

Spray Pattern Adjustments

The sprinkler offers five distinct patterns to suit different watering needs:

• FLAT: Produces a flat wave of water.
• FAN: Disperses water in a wide fan shape.
• MIST: Ideal for cooling down small areas.
• LARGE: Designed to cover the maximum possible area.
• MULTI: Combines Flat, Fan, and Large patterns for versatile coverage.

Safety and Maintenance

To ensure longevity and safe operation, please follow these guidelines:

• Usage: For outdoor use with cold water only. Do not spray near electrical connections.
• Maintenance: After each use, rinse the tool with water to remove dirt and debris. Dry the unit thoroughly before storing it indoors.
• Safety Warning: This product may expose users to chemicals including styrene, which is known to the State of California to cause cancer.

Technical Specifications

Performance at 40 PSI:

• Large: 39 ft (12 m) radius, up to 4860 sq ft (452 m²) coverage.
• Multi: 37 ft (11.5 m) radius, up to 4470 sq ft (415 m²) coverage.
• Flat: 29 ft (9 m) radius, up to 2730 sq ft (250 m²) coverage.
• Fan: 27 ft (8.5 m) radius, up to 2440 sq ft (226 m²) coverage.
