User Manual for Einhell 15-TLG Compressed Air Set
Quick guide for the Einhell 15-TLG Compressed Air Set. Learn how to connect, use adapters for inflation, read pressure, and replace batteries.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Einhell 15-TLG Compressed Air Set is designed for inflating tires and other inflatable items. It features a pressure gauge for monitoring and adjusting tire pressure. The set includes various adapters for different valve types.
Safety instructions
- Compressors and lines reach high temperatures during operation; avoid contact to prevent burns.
- Wear safety goggles when using the blow-out gun to protect against foreign bodies.
- When disconnecting the hose, hold the coupling element firmly to prevent injury from the whiplashing hose.
- Keep batteries out of reach of children and do not mix new and used batteries.
Device description
The set includes a tire inflator with a display, a control lever for air inlet, a pressure relief button, and an air hose. It also includes an 8-piece inflation adapter set.
Setup and connection
Connect your compressed air hose to the device using the quick-release coupling. Push the nipple into the coupling; the sleeve will automatically spring forward. To disconnect, pull back the sleeve and remove the hose.
Operation
Important: Fit adapters (3, 4, 5) fully onto the connector (6) to prevent them from being thrown off during use.
- Ball needle (Fig 1): For pumping up balls. Moisten slightly before inserting.
- Valve adapter (Fig 2): Fits bicycle tire valves.
- Adapter 3 (Fig 3): For valves with an internal diameter over 8mm (e.g., airbeds, pools, boats).
- Adapter 4 (Fig 4): For screw valves (e.g., dinghies, kayaks).
- Vent adapter (Fig 5): For deflation valves on large inflatables.
To switch the device on, press the ON button. Use the FUNC button to change the display mode. The display switches off automatically after approximately 60 seconds. To inflate, connect the adapter to the valve, squeeze the lever to increase pressure, or press the pressure relief button to decrease it.
Battery replacement
If the display is not working, replace the batteries. Pull the plastic cap off the display housing, unscrew the battery holders, remove the old batteries (2x CR2032), insert new ones, and reassemble.
Cleaning and maintenance
Clean the device immediately after use with a moist cloth and soft soap. Do not use cleaning agents or solvents. There are no user-serviceable parts inside the device.
Manufacturer information
Einhell
Practical help
Common problems
Adapter comes off during use.
Ensure adapters (3, 4, 5) are fitted fully onto the connector (6).
Inaccurate pressure reading.
The device is not calibrated. Check pressure with a calibrated meter at a petrol station.
Before use
- Check for transport damage.
- Ensure all 15 pieces are present.
- Check battery status (2x CR2032).
- Ensure air supply is clean and free of contaminants.
Specs in practice
- Working pressure
- 0-13 bar
- Battery type
- 2x CR2032 (3V, 0.2 Ah)
Images and diagrams

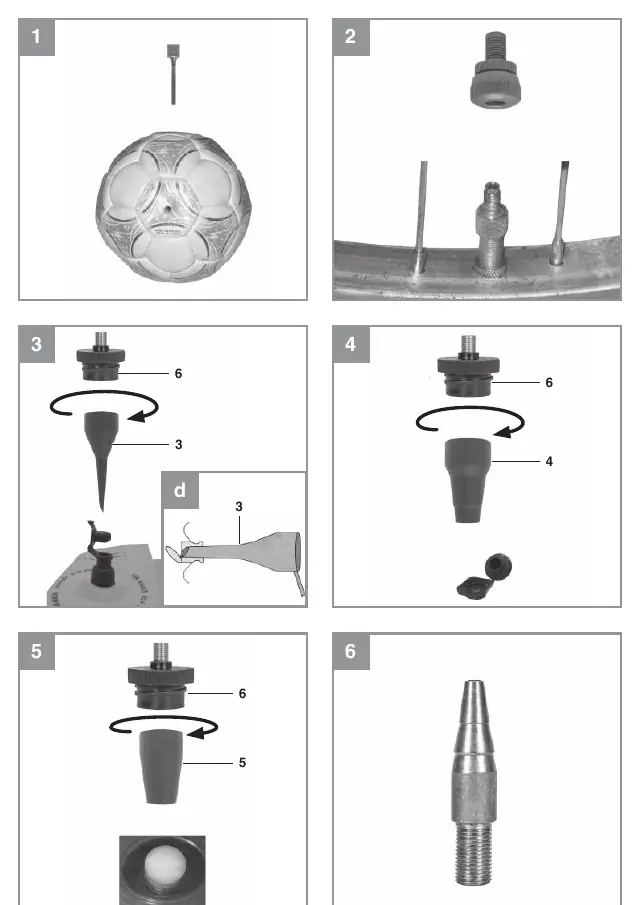

- Fig 1-7: Adapter usage guide for various valves.
- Fig 9: Device components including lever, pressure relief, and display.
- Fig 10-11: Battery replacement procedure.
Model compatibility
- Adapter 3 is for valves with internal diameter > 8mm.
- Adapter 4 is for screw valves.
Manual page author
Emily Carter
User documentation editor
Prepares concise manual descriptions and highlights the most useful setup, operation, and maintenance information for readers.
