This cordless hammer drill/screwdriver is designed for tightening and undoing screws, drilling in wood, metal, and plastic, and impact drilling in stone using appropriate bits. Always read the safety instructions before use.
Device Description
- 1. Torque selector
- 2. Battery capacity indicator
- 3. Changeover switch
- 4. ON/OFF switch
- 5. Battery
- 6. Charger
- 7. Selector switch for 1st/2nd gear
- 8. Pushlock button
- 9. Quick-change drill chuck
- 10. LED lamp
- 11. Anti-kickback system button
- 12. Anti-kickback system status LED
- 13. Selector switch for driving/drilling/impact drilling
Operation
Charging the Battery
Remove the battery pack (5) from the handle by pressing the pushlock buttons (8). Connect the charger (6) to the mains; the green LED will flash. Slide the battery onto the charger. Refer to the charger indicator table for status meanings.
Torque Setting
The tool features a mechanical torque selector. Use the set-collar (1) to adjust the torque based on the screw size and material hardness. The clutch disengages with a grating sound when the set torque is reached. Important: Only adjust the torque when the tool is at a standstill.
Gear Selection
Use the selector switch (7) to choose between 1st and 2nd gear. Only change gears when the tool has stopped to avoid damaging the gear unit.
Anti-Kickback System
The tool features an anti-kickback system that switches off the tool if it suddenly rotates due to jamming. The status LED (12) shines green when active. If triggered, the LED flashes. Use the button (11) to temporarily deactivate the system.
Maintenance and Cleaning
Always pull out the mains plug before cleaning. Keep safety devices, air vents, and the motor housing free of dust and dirt. Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents.
Troubleshooting
If the battery fails to charge, check the mains voltage and the contacts on the charger. If it still fails, return the charger and battery pack to our Customer Service Department.
Manufacturer information
Einhell
Practical help
Common problems
Battery fails to charge
Check if there is voltage at the socket-outlet and ensure proper contact at the charging contacts on the charger.
Battery temperature fault
If the battery is too hot or too cold, remove it and keep it at room temperature for one day.
Anti-kickback system triggered
The tool switches off due to sudden rotation. Wait for the system to reset or use the anti-kickback button to temporarily deactivate.
Before use
- Check for concealed electric cables and gas/water pipes in walls
- Use only sharp drill bits and suitable screwdriver bits
- Ensure the battery is charged
- Set the correct gear and torque for the task
- Ensure the tool is securely clamped in the chuck
Specs in practice
- 0-450 / 0-2000 rpm
- Idling speed (1st/2nd gear)
Images and diagrams

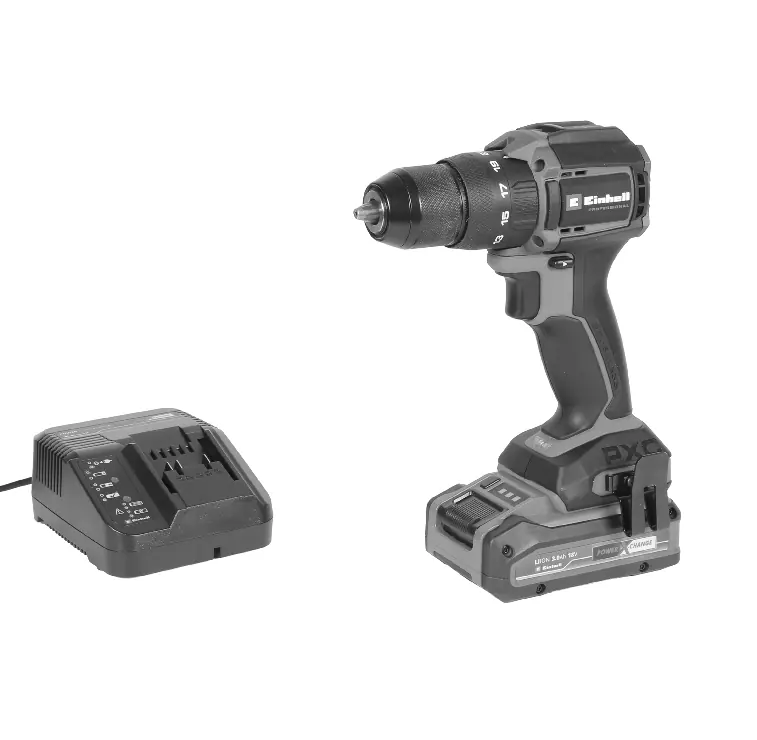

- Fig 1: Overview of the tool components
- Fig 2-3: Battery charging procedure
- Fig 4: Torque and gear settings
- Fig 7: Tool change procedure
- Fig 8: Anti-kickback system
Model compatibility
- Use only with compatible Power X-Change batteries and chargers
