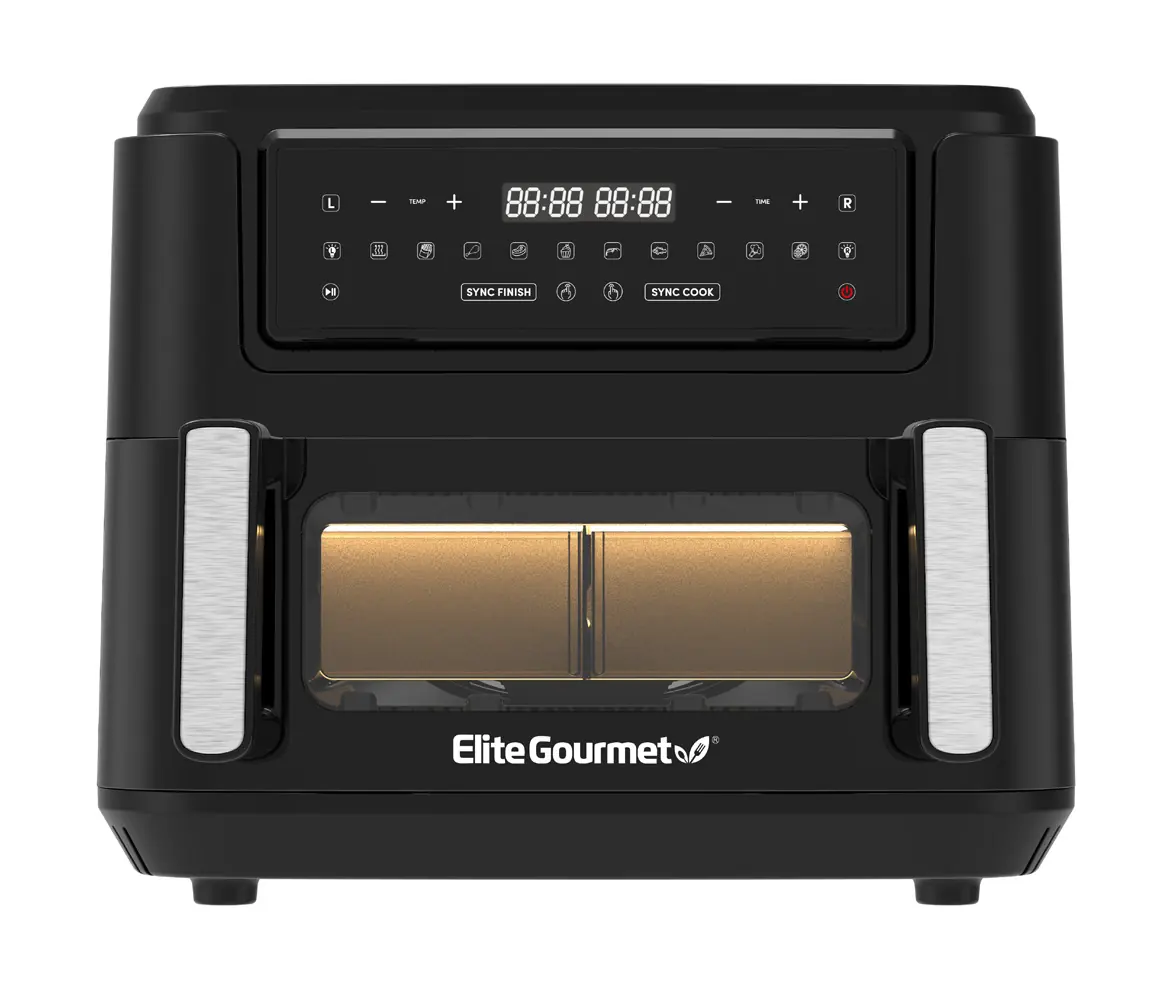

User Manual for Elite Gourmet 10.5L Digital Dual Zone Air Fryer Oven EAF1055D

Quick guide from the manual

The Elite Gourmet 10.5L Digital Dual Zone Air Fryer Oven allows for versatile cooking with two independent zones. Key features include Sync Finish, which coordinates different cooking times to finish simultaneously, and Sync Cook, which applies the same settings to both zones. Always ensure the unit is placed on a heat-resistant surface with at least 4 inches of clearance.

Important safeguards

• Do not immerse the main housing in water.
• Unplug the unit when not in use and before cleaning.
• Do not operate under wall cabinets or in an appliance garage.
• Never leave the unit unattended during use.
• Do not use aerosol sprays on the nonstick coating as it may cause peeling.
• Use only the door handle or oven mitts, as the exterior becomes very hot.

Parts identification

The unit consists of a main housing with a digital control panel, a frying basket, a basket rack, and a divider for separating foods. Air vents are located on the unit, and the power cord is attached at the rear.

Control panel

The control panel features independent controls for the Left and Right zones. You can adjust temperature and time for each zone individually. Preset buttons are available for common foods like fries, chicken, steak, cake, shrimp, fish, pizza, vegetables, and dehydration. The panel also includes buttons for interior lights, preheat, and the Sync Finish/Sync Cook functions.

Before first use

Remove all packaging materials. Wash the basket and rack with warm, soapy water and a non-abrasive sponge. Wipe the interior and exterior of the main housing with a damp cloth. Ensure the unit is placed on a dry, flat, stable, and heat-resistant surface.

How to use

Prepare your food and place it in the basket. If cooking two different items, use the divider. Select the desired zone (Left or Right), choose a preset or manually adjust the temperature and time using the -/+ buttons. Press the Start/Pause button to begin. You can remove the basket during cooking to stir or flip food; the unit will automatically pause and resume when the basket is reinserted.

Sync finish and sync cook

Sync Finish: Allows you to program two different foods with different times/temperatures to finish at the same time. The unit delays the start of the zone with the shorter cooking time.

Sync Cook: A shortcut to apply the settings from the Left Zone to the Right Zone simultaneously.

Cleaning and maintenance

Unplug the unit and let it cool completely before cleaning. The basket and rack are top-rack dishwasher safe. Do not use abrasive cleansers or metal scouring pads on the nonstick surfaces. Wipe the interior and exterior of the unit with a damp cloth; do not submerge the main housing in water.

Troubleshooting

If the unit does not work, ensure it is plugged in. If food is not cooking evenly, use smaller batches or stir mid-way through the cycle. White smoke may occur if cooking oily foods or if there is built-up residue on accessories; clean accessories thoroughly after every use.
