Ernitec 0070-24224-WATERPROOF CCTV Monitor User Manual
Comprehensive user manual for the Ernitec 0070-24224-WATERPROOF CCTV monitor. This guide provides instructions on installation, OSD menu configuration, connection options, and troubleshooting common issues.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential instructions for operating the Ernitec 0070-24224-WATERPROOF CCTV monitor. Key procedures include connecting external equipment, configuring the On-Screen Display (OSD) menu, and performing basic maintenance. Always ensure the power is disconnected before cleaning or servicing the unit.
Introduction
The monitor supports multiple input sources including HDMI, VGA, and BNC. The package includes the monitor, power cable, power cord, remote control, and this user manual. Ensure all accessories are present upon unpacking.
Installation
Battery Installation: Open the battery compartment on the back of the remote control. Insert one CR2032 3V battery, ensuring correct polarity. Point the remote towards the sensor on the monitor within a 7-meter range.
External Equipment Connections:
- Power: Connect the power cord to a dedicated circuit.
- BNC Connection: Connect the BNC output of your processor to the BNC input on the monitor.
- PC Connection: Connect the RGB output of the PC to the VGA jack on the monitor. The monitor supports plug-and-play capability via the DDC protocol.
Basic OSD Setup
Access the main menu by pressing the MENU button. Use the arrow buttons to navigate and select submenus:
- Picture: Adjust Contrast, Brightness, Color, Tint, Sharpness, Color Temp, Aspect Ratio, and Picture Mode.
- Sound: Adjust Bass, Treble, Balance, Sound Mode, and Auto Volume.
- Option/Function: Configure OSD Language, OSD Duration, Transparency, and perform Software Updates via USB.
Troubleshooting
If you encounter issues, perform these checks:
- No sound/picture: Check that the power plug is connected, the power button is pressed, and contrast/brightness settings are correct.
- Normal picture but no sound: Check volume levels, ensure the mute function is off, and verify audio cable connections.
- Remote control not working: Check for obstructions, verify battery polarity, or replace batteries.
- Signal out of range (VGA): Adjust resolution, frequency, or check the signal cable connection.
Maintenance
Regular cleaning extends the life of the monitor. Use a soft, dry, lint-free cloth to clean the cabinet. For the screen, use a soft cloth dampened with a mixture of lukewarm water and a mild fabric softener or dishwashing detergent. Wring the cloth until almost dry before wiping. Ensure the screen is completely air-dried before powering on.
Manufacturer information
Ernitec
Practical help
Common problems
No sound or picture
Check that the wall plug is connected, the power button is pressed, and contrast/brightness settings are adjusted.
Normal picture but no sound
Check volume levels, ensure the mute function is off, and verify audio cable connections.
Remote control not working
Check for obstructions between the remote and sensor, verify battery polarity, or install new CR2032 batteries.
Signal out of range (VGA mode)
Adjust the resolution, horizontal frequency, or vertical frequency. Check if the signal cable is connected securely.
Before use
- Ensure the power cord is connected to a dedicated circuit.
- Check that all signal cables (HDMI, VGA, BNC) are securely connected.
- Install one CR2032 3V battery in the remote control with correct polarity.
- Ensure the monitor is placed in a well-ventilated area away from heat sources.
- Verify that the monitor is not exposed to dripping or splashing liquids.
Specs in practice
- Aspect Ratio
- Adjusts the display format (e.g., 4:3, Panorama, Zoom1, Zoom2, Auto, Point to Point).
- Picture Mode
- Presets for image quality (Standard, Soft, Vivid, User).
Images and diagrams

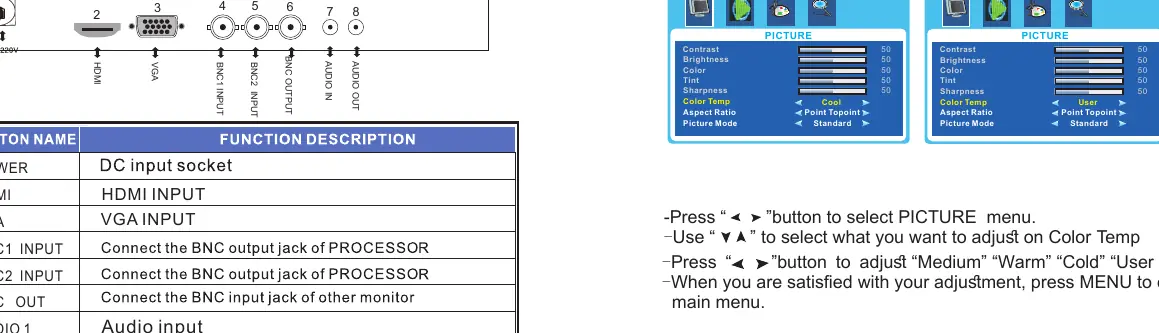

- Rear Panel: Shows ports for HDMI, VGA, BNC Input/Output, and Audio In/Out.
- Remote Control: Layout of buttons for Power, Mute, Input, and Menu navigation.
Model compatibility
- Supports VGA, HDMI, and BNC inputs.
- PC connection via VGA supports plug and play (DDC protocol).
