User Manual for Ernitec 0070-24122-POE Monitor
Quick guide for the Ernitec 0070-24122-POE monitor. Includes setup instructions, OSD menu navigation, connection diagrams, and troubleshooting steps.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This monitor is designed for CCTV and general display applications. Before operating, ensure you have all accessories: power cable, power cord, remote control, and this manual. Keep the monitor in a well-ventilated area, away from heat sources, moisture, and direct sunlight. If the monitor is unused for a long period, unplug the power cord to protect against power surges.
Connection Options
The monitor features multiple input and output ports located on the back panel:
- DC12V: Power input.
- HDMI (x2): High-definition video inputs.
- VGA: Analog video input for PC connection.
- USB: Data/media interface.
- Audio In/Out: 3.5mm audio connections.
- PoE Input: Power over Ethernet input.
- LAN Output: Network output.
OSD Menu Setup
Use the buttons on the front panel or the remote control to navigate the On-Screen Display (OSD) menu:
- Menu Navigation: Press the MENU button to access the main menu. Use the arrow buttons to select submenus and adjust settings. Press MENU again to exit.
- Picture Adjust: Modify Contrast, Brightness, Color, Sharpness, and Tint.
- ColorTemp Adjust: Change color temperature settings (Red, Green, Blue gain).
- Aspect Ratio: Switch between 4:3 and 16:9 display modes.
- Noise Reduction: Adjust settings (Off, Low, Middle, High) to improve image quality.
- User Reset: Restore factory settings if needed.
Remote Control Functions
The remote control allows for convenient operation:
- POWER: Toggle monitor standby mode.
- MUTE: Silence audio.
- INPUT: Cycle through input sources (VGA, BNC1, BNC2, HDMI, YPbPr).
- PICTURE: Cycle through available video picture modes.
- Navigation: Use arrow keys for menu selection and adjustment.
Troubleshooting
If you encounter issues, perform these checks:
- No picture: Ensure the power plug is connected, the monitor is powered on, and brightness/contrast settings are correct.
- No sound: Check volume levels, ensure the mute function is off, and verify audio cable connections.
- Remote not working: Check batteries, ensure there is no obstruction between the remote and sensor, and verify the correct operating mode.
- Signal out of range: Adjust resolution and frequency settings on your PC.
- Unstable screen color: Check the signal cable connection or reinstall the PC video card.
Maintenance and Safety
To clean the screen, use a soft cloth dampened with a mixture of lukewarm water and a mild fabric softener or dishwashing detergent. Wring the cloth until it is almost dry before wiping. Clean the cabinet with a soft, dry, lint-free cloth. Always turn off and unplug the monitor before cleaning. Do not block ventilation openings and only use attachments specified by the manufacturer.
Manufacturer information
Ernitec
Practical help
Common problems
Signal out of range
Adjust resolution, horizontal frequency, or vertical frequency. Check if the signal cable is connected or loose.
No sound
Check the volume level, ensure the MUTE button is not active, and verify that audio cables are properly connected.
Remote control does not work
Check if there is an obstruction, ensure batteries are installed with correct polarity, and verify the operating mode (MONITOR/VCR).
Unstable screen color
Check the signal cable connection or reinstall the PC video card.
Before use
- Verify all accessories are included (Power cable, remote control).
- Install CR2032 batteries in the remote control.
- Ensure the monitor is placed on a stable surface or mount.
- Connect the power cord to a dedicated circuit.
- Ensure proper ventilation around the monitor.
Specs in practice
- BNC Input/Output
- Used for connecting CCTV processors and daisy-chaining multiple monitors.
- Aspect Ratio
- Controls the display format, switchable between 4:3 and 16:9.
Images and diagrams

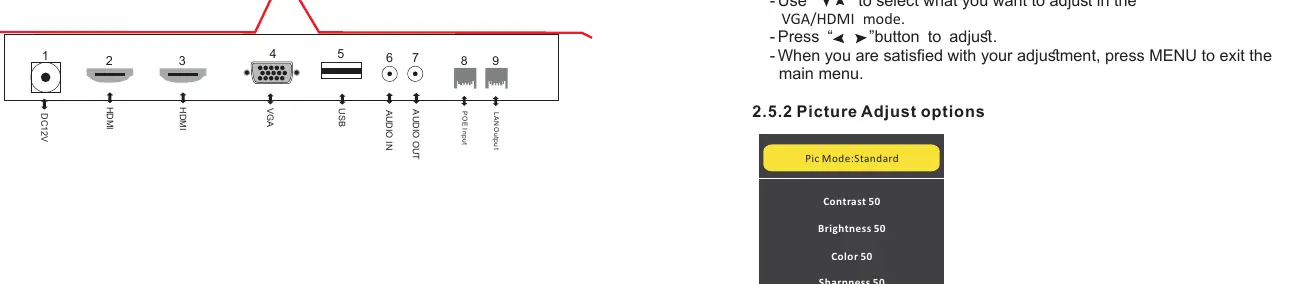

- The rear panel contains ports for DC12V, HDMI, VGA, USB, Audio, PoE, and LAN.
- The remote control includes dedicated buttons for Input selection, Picture modes, and Menu navigation.
- Battery compartment is located on the back of the remote control.
