User Manual for ETA 236490000EN Refrigerator with Freezer
Quick guide for the ETA 236490000EN refrigerator with freezer. Includes installation, door reversal, temperature settings, food storage tips, and troubleshooting.
Quick answers from the manual
Quick answer
- This manual provides instructions for the ETA 236490000EN refrigerator, including installation, door reversal, temperature control, and maintenance. p. 43, 62
Key actions
- Reverse the door p. 49, 51
- Adjust temperature p. 54
First start
- Wait at least 4 hours before connecting to allow oil to flow back into the compressor. p. 47
Show 3 more answers Show less
Problems and fixes
Appliance does not work
Check thermostat setting, power plug, and fuse/circuit breaker.
p. 60Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Climate Class | N, ST | Designed for ambient temperatures of 16-38°C. | p. 53 |
Where to find it in the PDF
- Safety Information p. 43, 48
- Installation p. 47, 52
- Daily Use p. 53, 59
- Troubleshooting p. 60, 61
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential information for the safe and efficient operation of your ETA 236490000EN refrigerator. It covers installation, daily use, maintenance, and troubleshooting.
Safety Information
- Children and vulnerable people: This appliance can be used by children aged 8 and above under supervision. Keep packaging away from children to avoid suffocation.
- General safety: Keep ventilation openings clear. Do not damage the refrigerant circuit. Do not use mechanical devices to accelerate defrosting.
- Electrical safety: Ensure the power plug is accessible after installation. Do not use multiple portable socket-outlets at the rear.
Installation
- Positioning: Install away from heat sources like radiators or direct sunlight. Ensure adequate air circulation around the back.
- Leveling: Adjust the two leveling feet at the front of the unit to ensure the doors and magnetic seals align properly.
- Electrical connection: Ensure the voltage and frequency match your domestic supply. The appliance must be earthed.
- Door Reversal: The door can be reversed. Follow the step-by-step instructions in the manual, ensuring the unit is unplugged and empty.
Daily Use
- Temperature Setting: Controlled by a thermostat with 8 settings (1 is warmest, 7 is coldest, 0 is off). Adjust based on ambient temperature.
- Food Storage: Follow the provided tables for recommended storage times and methods for meat, fish, vegetables, and fruits.
- Freezing: Use the freezer compartment for freezing fresh food and storing frozen items. Do not refreeze thawed food.
Maintenance and Cleaning
- Cleaning: Switch off and unplug before cleaning. Use lukewarm water and neutral soap. Do not use abrasive cleaners or steam cleaners.
- Drain Hole: Periodically clean the drain hole at the back of the fridge compartment to prevent defrost water from overflowing.
- Defrosting: If ice becomes thick in the freezer, perform a complete defrost by unplugging the unit and allowing the ice to melt.
Troubleshooting
If the appliance does not work, check the thermostat setting, power plug, and fuse/circuit breaker. If the food is too warm, check temperature settings and ensure the door is not left open. Unusual noises may be resolved by leveling the unit or moving it slightly away from walls.
Practical help
Common problems
Appliance does not work
Check if the thermostat is set to 0, if the plug is connected, or if the fuse/circuit breaker is tripped.
Food is too warm
Check temperature settings, ensure the door isn't left open, or if a large amount of warm food was recently added.
Unusual noises
Ensure the appliance is level and not touching walls or other objects.
Before use
- Unpack and check for damage.
- Wait at least 4 hours before connecting to allow oil to flow back into the compressor.
- Ensure adequate air circulation around the appliance.
- Clean the interior with lukewarm water and neutral soap.
Show more Show less
Specs in practice
- Climate Class
- Determines the ambient temperature range for optimal performance (N, ST).
- Temperature Settings
- 1 is the warmest, 7 is the coldest, 0 is off.
Images and diagrams
- Overview of fridge components (shelves, crisper, freezer drawers).
- Door reversal steps.

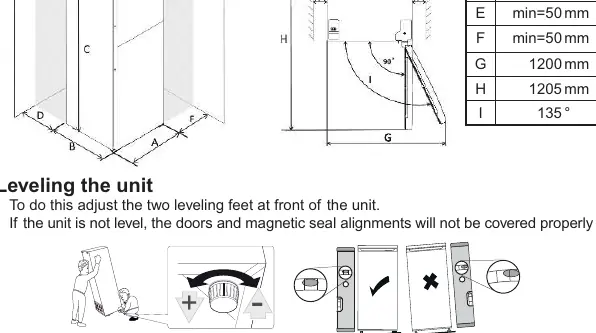

- Space requirements diagram.
Model compatibility
- Not intended for built-in installation.
- Not for use at altitudes exceeding 2000m.
