User Manual for ETA Combi Fridge
A comprehensive user guide for the ETA Combi Fridge, covering installation, daily operation, temperature settings, maintenance, and troubleshooting.
Quick answers from the manual
Quick answer
- This manual covers the installation, operation, and maintenance of the ETA Combi Fridge. Key features include No Frost technology, adjustable temperature zones, and various operating modes like ECO and Super Freezing. p. 1, 13, 14, 23
Key actions
- Adjusting temperature p. 15, 64
- Reversing the door p. 10, 11, 12, 58
First start
- Wait 4 hours before plugging in p. 7, 55
Show 4 more answers Show less
Problems and fixes
Appliance does not work
Check power connection, fuse, and temperature setting.
p. 23, 72Maintenance and reset
- Cleaning p. 22, 71
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Climate Classes | SN, N, ST, T | Determines ambient temperature operating range. | p. 13, 61 |
Where to find it in the PDF
- Safety Information p. 3, 51
- Installation p. 13, 61
- Daily Use p. 14, 62
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential information for the safe and efficient operation of your ETA Combi Fridge. Before first use, ensure the appliance is unpacked and checked for damage. It is recommended to wait at least four hours before connecting the appliance to the power supply to allow the oil to flow back into the compressor.
Installation
Proper installation is crucial for performance:
- Space Requirements: Ensure adequate air circulation around the appliance. Keep at least 50mm gap on both sides and 100mm above if positioned under an overhanging wall unit.
- Leveling: Use the adjustable feet at the front to ensure the unit is level, which is necessary for proper door and magnetic seal alignment.
- Positioning: Install in a location where the ambient temperature corresponds to the climate class indicated on the rating plate (SN, N, ST, T).
Daily Use and Control Panel
The control panel allows you to manage temperature and modes:
- Temperature Control: Adjust fridge and freezer temperatures independently.
- ECO Mode: Optimizes energy consumption (5°C fridge / -18°C freezer).
- Holiday Mode: Sets the fridge to 17°C for long absences.
- Super Freezing: Rapid freezing mode for fresh food, lasting up to 50 hours.
- Locking: The display locks automatically after 25 seconds of inactivity. Press and hold the mode button for 3 seconds to unlock.
Maintenance and Cleaning
Regular maintenance ensures longevity:
- Cleaning: Disconnect from power before cleaning. Use lukewarm water and neutral soap. Avoid abrasive cleaners or steam cleaners.
- Defrosting: The appliance features NO FROST technology, so manual defrosting is not required.
- Lamp Replacement: The LED light source must be replaced by a professional.
Troubleshooting
If you encounter issues:
- Appliance not working: Check if the knob is set to '0', check the power plug, or check the fuse/circuit breaker.
- Food too warm: Check temperature settings, ensure the door is not left open, or check if a large quantity of warm food was recently added.
- Unusual noises: Ensure the appliance is level and not touching walls or other objects.
Practical help
Common problems
Appliance does not work
Check if the temperature knob is set to '0', ensure the mains plug is connected, and check the fuse or circuit breaker.
Food is too warm
Check temperature settings, ensure the door is not left open for extended periods, and avoid placing large quantities of warm food inside at once.
Unusual noises
Ensure the appliance is level and not touching walls or other objects. If a pipe at the rear is touching the cabinet, carefully bend it away.
Before use
- Unpack the appliance and inspect for damage.
- Wait at least 4 hours before connecting to power.
- Ensure adequate ventilation space (50mm sides, 100mm top).
- Clean the interior with lukewarm water and neutral soap.
- Ensure the appliance is level using the adjustable feet.
Show more Show less
Specs in practice
- Super Freezing
- Rapid freezing mode for fresh food, automatically exits after 50 hours.
- Holiday Mode
- Sets fridge to 17°C for energy saving during long absences.
Images and diagrams
- Control panel layout showing temperature displays and mode icons.

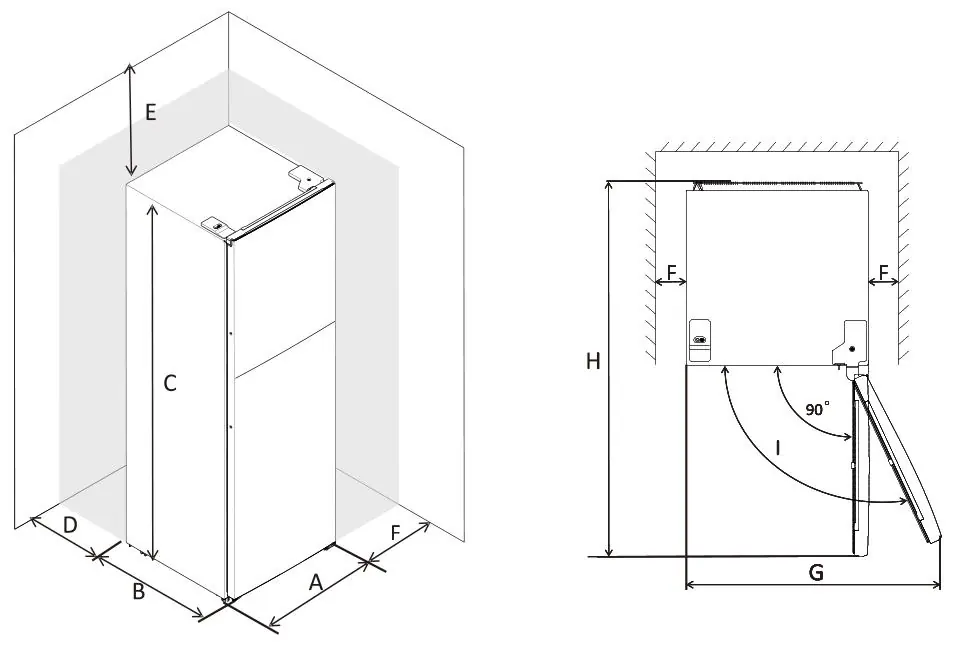

- Space requirement diagram showing necessary clearances.

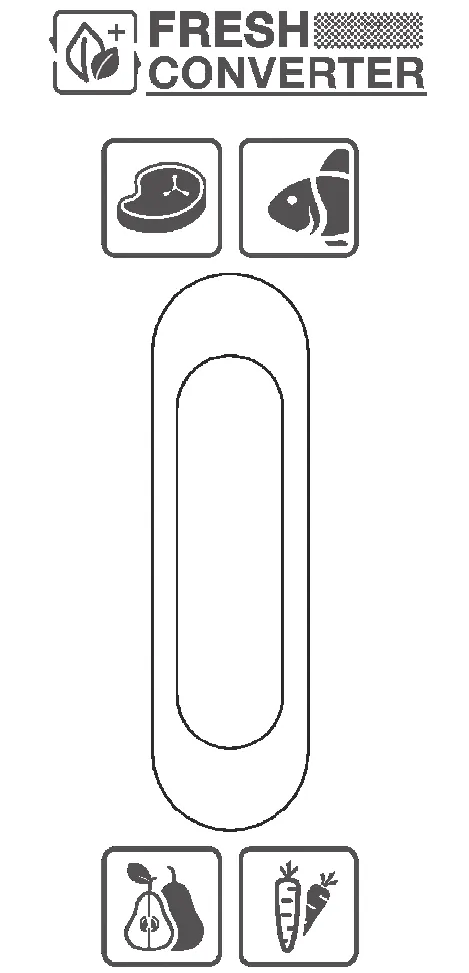

- Convertible zone slider settings for fresh food vs. meat/fish.
Model compatibility
- Not intended for built-in use.
- Ambient temperature requirements vary by climate class (SN, N, ST, T).
