Eurofase Lighting 44476 Venya 1-Light LED Outdoor Wall Lantern User Manual

Quick guide from the manual

This manual provides instructions for the Eurofase Lighting 44476 Venya 1-Light LED Outdoor Wall Lantern. The estimated assembly time is approximately 20 minutes. Installation should be performed by a qualified electrician to ensure safety and compliance with electrical codes.

Safety Instructions

• Always disconnect power at the circuit breaker or remove the fuse before starting installation.
• All electrical connections must comply with local and National Electrical Code or Canadian Electrical Code standards.
• Use CSA or UL certified wire connectors suitable for the gauge, type, and number of conductors.

Tools Required

• Flathead screwdriver
• Phillips screwdriver
• Pliers
• Electrical tape
• Wire cutters
• Wire strippers
• Ladder

Installation

1. Turn off the power supply at the circuit breaker.
2. Prepare the junction box.
3. Connect the fixture wires to the junction box wires using the provided wire connectors.

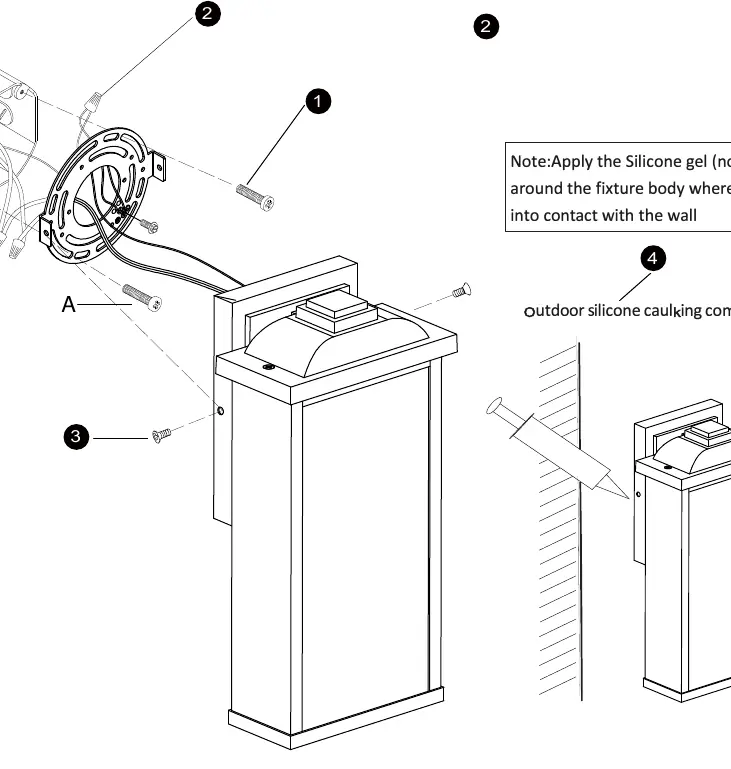

4. Secure the fixture to the wall using the provided screws.
5. Important: Apply outdoor silicone caulking compound around the fixture body where it contacts the wall to ensure a proper seal against moisture.

Wiring

• Black wire (L) from junction box to Black wire (L) from fixture.
• White wire (N) from junction box to White wire (N) from fixture.
• Green/Bare wire (G) from junction box to Green/Bare wire (G) from fixture.

Technical Specifications

• Power: 8W MAX
• Voltage: 120V~, 60Hz
• Light Source: Dimmable LED (Included)
