User Manual for Bailey LED Floodlight 100W
Quick guide for the Bailey LED Floodlight 100W. Includes installation steps, wiring diagrams, safety warnings, maintenance tips, and warranty information.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential installation and safety information for the Bailey LED Floodlight 100W. Please note that installation must be performed by a qualified electrician. The device is suitable for both indoor and outdoor use but is not compatible with emergency units. Ensure the supply voltage matches the rated voltage of the luminaire before installation.
Technical specifications
- Voltage: AC 100-260V 50/60Hz
- Ingress Protection: IP65
- Class: CLI
- Beam angle: 120°
- Operating temperature: -20°C to 45°C
Safety warnings
To ensure safety and prevent damage, adhere to the following guidelines:
- Disconnect the power supply before installation, servicing, or removal.
- Do not open the fixture or replace wiring cables.
- Only use in combination with LED-compatible photocell sensors.
- Do not cover the product or attach other items to it.
- Keep the product out of the reach of children.
- If the product shows signs of damage, flickering, burning smell, or overheating, switch it off immediately and disconnect the power.
Mounting and Installation

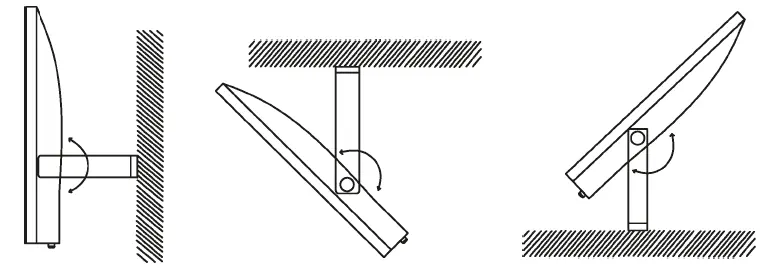

The floodlight can be mounted on walls, ceilings, or the ground. Ensure the mounting surface is stable. The mounting bracket allows for adjustment of the light angle.
Wiring instructions:
- The device requires a 3-core cable connection.
- Connect the Neutral (N), Earth (ground symbol), and Live (L) wires according to standard electrical practices.
- Ensure the connection is secure and protected against moisture.
Maintenance
To maintain the service life of the fixture, clean it regularly using a soft cloth, water, and soap. Avoid using volatile chemical substances such as alcohol, petrol, or pesticides, as these can damage the product.
Disposal
Do not dispose of this product with domestic waste. Electrical products must be recycled at designated collection points. Consult local authorities or the seller for advice on proper disposal.
Warranty
The product comes with a 2-year warranty starting from the date of purchase. The warranty covers material and manufacturing defects. It does not cover consequential damage, installation costs, or defects caused by improper use, external factors, or unauthorized modifications.
Manufacturer information
Bailey Electric & Electronics bv
Practical help
Common problems
Product is flickering or not working properly
Immediately switch off and disconnect power. Check for visible damage, overheating, or burning smells. Do not attempt to repair yourself; contact a qualified electrician.
Sensor not working
Ensure that the photocell sensor being used is specifically LED-compatible.
Before use
- Verify that the supply voltage matches the rated luminaire voltage (AC 100-260V).
- Ensure the installation environment is suitable for an IP65-rated fixture.
- Confirm that a qualified electrician is available to perform the installation.
- Disconnect the main power supply before beginning any work.
- Check that the mounting surface can support the weight of the fixture.
Specs in practice
- 120° Beam angle
- The spread of light emitted by the floodlight, providing a wide area of illumination.
Images and diagrams
- The mounting diagram illustrates the spacing for installation holes, with a total width of 270mm.
- The wiring diagram shows the three required connections: Neutral (N), Earth (ground symbol), and Live (L).
Model compatibility
- Not suitable for use with emergency lighting units.
- Only compatible with LED-compatible photocell sensors.
