User Manual for Extol Industrial Cordless One Handed Chain Saw SHARE 20V

Quick guide for the Extol Industrial Cordless One Handed Chain Saw SHARE 20V. Includes setup, operation, maintenance, and safety instructions.

Quick answers from the manual

Quick answer

  • The Extol Industrial Cordless One Handed Chain Saw is a 20V battery-powered tool designed for pruning trees, bushes, and minor wood trimming. It features a brushless motor and automatic chain lubrication. p. 34

Key actions

  • Tension the chain so the gap from the guide bar is 2-3 mm. p. 36
  • Fill the oil tank to 3/4 capacity with chain saw oil. p. 36

First start

  • Insert the charged battery into the chainsaw until it clicks into place. p. 36

Problems and fixes

Chain not lubricated

Clean the oil outlet (Fig 5) with a wire or needle.

p. 36

Technical specifications

Parameter Value Meaning Pages
Chain speed 7.8 m/s Speed of the saw chain p. 35
Weight 1.3 kg Weight without battery p. 35

Where to find it in the PDF

  • Parts and Controls p. 35
  • Technical Specifications p. 35
Table of contents

Manual images

Click an image to enlarge
Fig 1: Parts and controls diagram Page 2 Fig 4: Checking chain tension (2-3mm) Page 2 Fig 5: Oil outlet location Page 2 Fig 10: Felling escape routes Page 6 Fig 17: Chain sharpening principle Page 8

Quick guide from the manual

This manual provides instructions for the Extol Industrial Cordless One Handed Chain Saw (SHARE 20V system). The tool is intended for pruning trees, bushes, and minor trimming cuts. Before use, ensure the battery is charged and the chain is properly tensioned and lubricated.

Description and Parts

The chainsaw features a brushless motor and an automatic chain lubrication system. Key components include:

Fig 1: Parts and controls diagram
Fig 1: Parts and controls diagram
  • 1: Motor vents
  • 2: Trigger lock release button
  • 8: Trigger switch
  • 11: Chain guard mounting screw
  • 12: Chain tension adjustment ring
  • 14: Guide bar
  • 15: Saw chain
  • 18: Oil tank cap

Preparation for use

Chain Tensioning: Wear gloves. Pull the chain at the center of the guide bar; the gap should be 2-3 mm. If larger, loosen the mounting screw (11) and turn the tension ring (12) towards the '+' symbol. Tighten the screw after adjustment.

Fig 4: Checking chain tension (2-3mm)
Fig 4: Checking chain tension (2-3mm)
Fig 5: Oil outlet location
Fig 5: Oil outlet location

Lubrication: Open the oil tank cap (18) and fill to 3/4 capacity with chain saw oil. Do not use other types of oil. Ensure the chain is lubricated before operation. Check the oil outlet (Fig 5) if lubrication is not occurring.

Operation

To start the saw, press the trigger lock release button (2) and then the trigger switch (8). To stop, release the trigger switch.

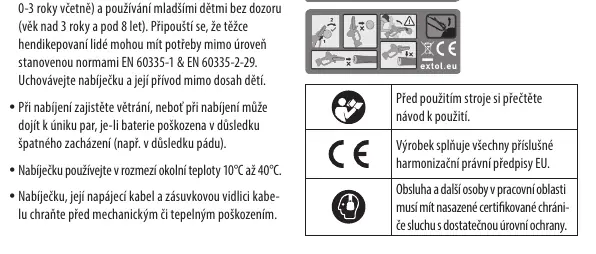

Safety Instructions

Always hold the saw firmly with both hands. Do not cut above shoulder height. Be aware of kickback risks, which occur if the guide bar tip touches an object or the wood closes in on the chain. Always stand on the upper side of a slope when cutting logs to prevent them from rolling onto you.

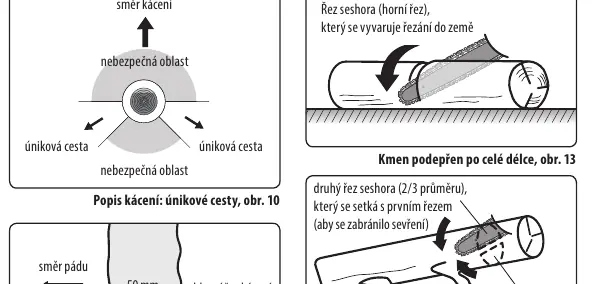

Fig 10: Felling escape routes
Fig 10: Felling escape routes

Maintenance

Sharpening: Sharpening should be performed by a professional. If doing it yourself, use a special file at a 30-degree angle to the cutting segment, moving in one direction only (2-3 passes).

Fig 17: Chain sharpening principle
Fig 17: Chain sharpening principle

Cleaning: Clean the motor vents and oil supply outlet (Fig 5) after each use. Do not use organic solvents to clean the plastic body.

Storage

Store in a dry, safe place out of reach of children. Remove the battery before storage. If storing for a long time, drain the oil tank.

Manufacturer information

Extol

Brand profile
Manufacturer website https://www.extol.eu Support https://www.extol.eu

Practical help

Common problems

Chain is too loose

Loosen the mounting screw (11), turn the tension ring (12) towards the '+' symbol to tighten, then re-tighten the mounting screw.

Chain is not being lubricated

Check oil level in the tank. Clean the oil outlet (Fig 5) using a wire or needle to remove debris.

Before use

  • Charge the battery fully
  • Check chain tension (2-3mm gap)
  • Fill oil tank to 3/4 capacity
  • Inspect chain for damage or excessive wear
  • Ensure chain guard is in place and functioning

Specs in practice

Oil tank capacity
50 ml
Weight (without battery)
1.3 kg

Images and diagrams

  • Fig 1: Overview of parts and controls
  • Fig 4: Correct chain tension check (2-3mm)
  • Fig 17: Chain sharpening principle (30-degree angle)

Model compatibility

  • Compatible with SHARE 20V battery system
  • Use only specified Extol batteries and chargers
