User Manual for Extol Premium Cordless Barrel Rain Water Pump SHARE 20V
Quick guide for the Extol Premium Cordless Barrel Rain Water Pump SHARE 20V. Includes setup, operation, maintenance, and safety instructions for models 8891930 and 8891931.
Quick answers from the manual
Quick answer
- The Extol Premium Cordless Barrel Rain Water Pump is designed for pumping clean water from barrels or containers for garden irrigation. It is powered by the SHARE 20V battery system. p. 3, 24
Key actions
- Adjust submersion depth p. 2, 26
- Clean the filter p. 5, 26
First start
- Assemble the pump, attach the hook, insert the charged battery, and submerge in water before turning on. p. 5, 26
Problems and fixes
Pump does not run
Check battery charge and ensure the pump is submerged.
p. 5, 26Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max. delivery height | 21 m | Vertical water column | p. 4, 25 |
| Max. submersion depth | 0.5 m | Maximum depth for pump | p. 4, 25 |
Where to find it in the PDF
- Parts and Assembly p. 2
- Technical Specifications p. 4, 25
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Extol Premium Cordless Barrel Rain Water Pump is designed for pumping clean water from barrels or containers for garden irrigation. It is powered by the SHARE 20V battery system. The pump is not intended for pumping liquids other than clean water and must not be operated without water.
Description of parts
- 1: Suction holes
- 2: Quick connect hose connection coupler
- 3: Submersion depth adjustment hose
- 4: Elbow for hanging on the rim of a water vessel
- 5: Water outlet valve
- 6: Battery SHARE 20 V
- 7: External unit battery cover
- 8: Elbow for hanging the external unit on the rim of a water vessel
- 9: External unit for battery SHARE 20 V
- 10: Power switch with LED battery charge level indicators
Assembly
Assemble the pump according to the diagram. Adjust the submersion depth by pulling the hose on the side of the valve at the top of the hook. The maximum submersion depth is 0.5 m. The external unit can be hung on the edge of the water vessel or on a wall hook.
Operation
Before use, ensure the pump body, cables, and external unit are undamaged. Check that the filter is clean and installed. Submerge the pump in clean water (max 0.5 m depth). Do not place the pump on the bottom of the vessel where sediment or mud may accumulate. Press the button on the external unit to turn the pump on or off. The pump must not run without water.
Maintenance
After each use, rinse the pump with clean water. Check the filter (located at the bottom of the pump) for clogs. If clogged, rinse under clean running water or replace with a new original filter (part no. 8891930A). If there is a risk of freezing, remove the pump from the water, disconnect the hose, and drain all water from the pump and hose to prevent damage.
Manufacturer information
Extol
Practical help
Common problems
Pump does not run
Check battery charge level and ensure the pump is properly submerged in water.
Low water flow
Check if the filter is clogged or if the hose is kinked.
Pump stops during operation
Battery may be empty; check the LED indicators on the battery unit.
Before use
- Check pump body and cables for damage.
- Ensure the filter is clean and installed.
- Check battery charge level.
- Ensure the pump is submerged in water (max 0.5m).
- Ensure the external unit is protected from water (IPX4).
Specs in practice
- Max. delivery height
- 21 m (vertical water column).
- Max. submersion depth
- 0.5 m.
Images and diagrams

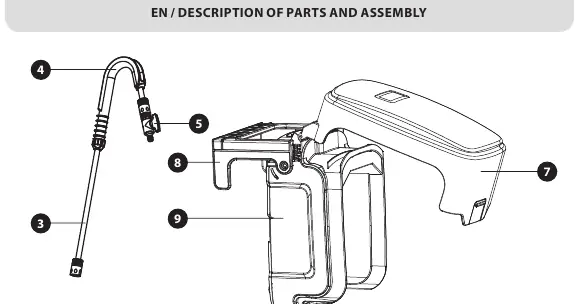

- Fig 1: Parts and assembly overview.
- Fig 2: Submersion depth adjustment.

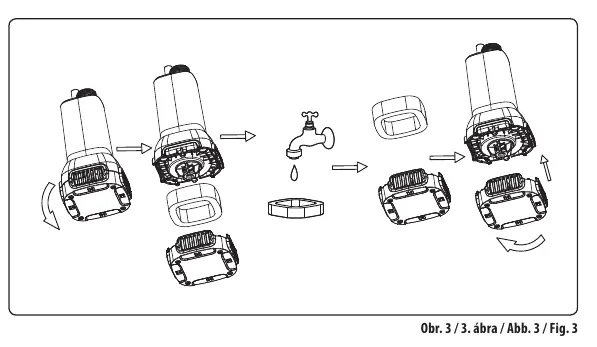

- Fig 3: Filter cleaning procedure.
Model compatibility
- Compatible with the SHARE 20V battery program.
