Falmec Level Invisible Range Hood User Manual
Quick guide for the Falmec Level Invisible range hood. Includes installation steps, touch control operation, remote control setup, maintenance, and safety instructions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Falmec Level Invisible is a high-performance range hood designed for domestic kitchens. This guide provides essential information for installation, operation, and maintenance. Always ensure the hood is installed by qualified personnel and that all safety regulations are followed.
Safety Instructions
- Installation: Must be performed by qualified installers. Do not modify the electrical, mechanical, or functional structure of the unit.
- Electrical Safety: Ensure the electrical system is properly grounded and complies with local safety standards. Disconnect the power supply before any maintenance.
- Fumes Discharge: Do not connect the hood to exhaust pipes of combustion fumes (e.g., boilers, fireplaces). Ensure proper ventilation if using gas appliances simultaneously.
- Usage: Do not use the hood with wet hands or bare feet. Do not leave open flames unattended under the hood.
Installation
The hood can be installed in wall or island configurations. Follow the specific diagrams for your chosen setup. Ensure the wall can support the weight of the unit (32 kg). Use the provided template for cutting the installation hole.
Operation
The hood is operated via a touch panel on the top surface. Functions include:
- Light: Short touch to toggle, long touch to change color temperature (2700K - 5600K).
- Motor: ON/OFF control and speed adjustment (1 to 4).
- Timer: Auto-switch off after 15 minutes.
- Hood Position: Use the adjustment buttons to open or close the hood.
Maintenance
- Cleaning: Clean external surfaces at least every 15 days using mild detergents or specific stainless steel wipes. Do not use abrasive materials.
- Filters: Metal anti-grease filters must be washed at least once a month (or every 30 hours of use) in hot water with dish soap. Dishwasher use is permitted at low temperatures (max 60°C).
- Carbon-Zeolite Filters: Optional filters for recirculation mode; refer to the specific instructions provided with the filter packaging.
Manufacturer information
Falmec S.p.a.
Practical help
Common problems
Hood is completely inactive
Disconnect power for approximately 5 seconds, preferably via the main switch, to reset the system.
Remote control not working
Ensure the hood is away from electromagnetic interference (e.g., microwave ovens). Re-pair the remote using the activation procedure.
Before use
- Verify that the electrical mains voltage matches the identification plate inside the hood.
- Ensure the installation surface can support the 32 kg weight of the unit.
- Check that the electrical system is properly grounded.
- Ensure the hood is installed at the minimum required distance from the cooking surface.
- Confirm that the metal anti-grease filters are correctly installed.
Specs in practice
- Max hob power
- 12 kW
- Remote control frequency
- 433.92 MHz
- Filter cleaning interval
- Every 30 hours of operation
Images and diagrams

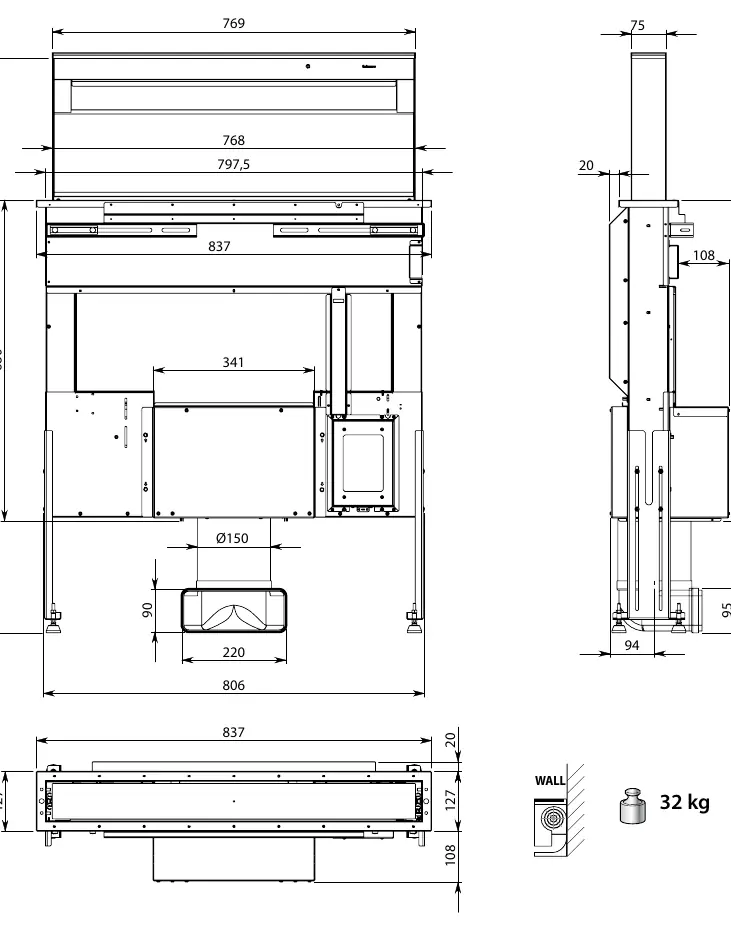

- Wall installation: Shows motor in front position.

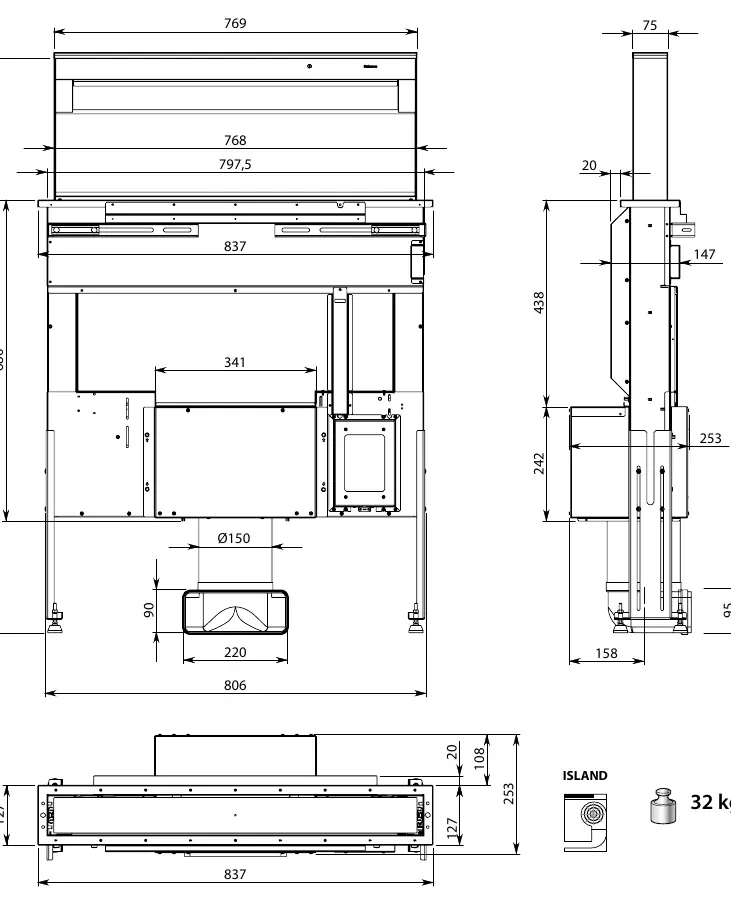

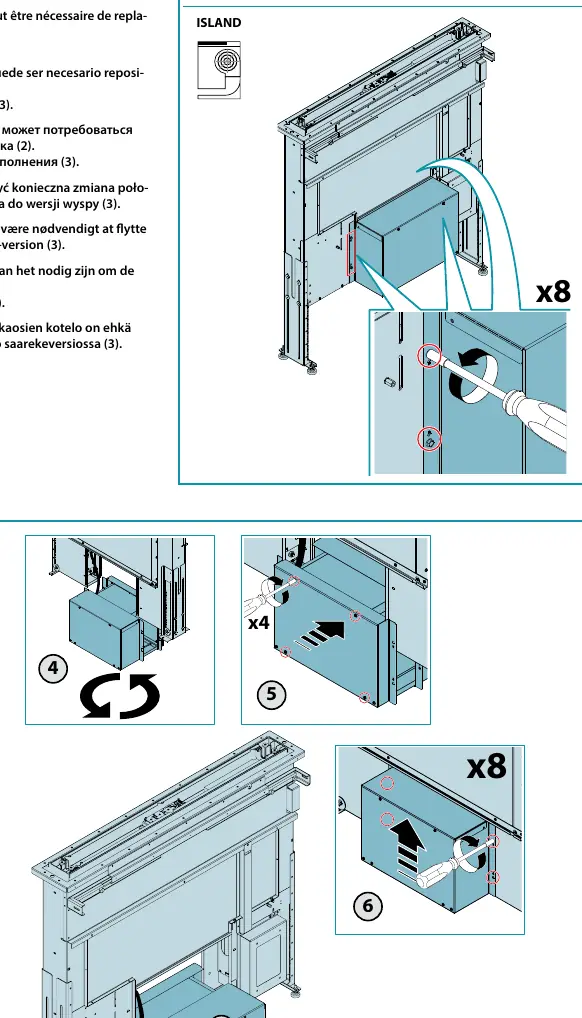

- Island installation: Shows motor in rear position.

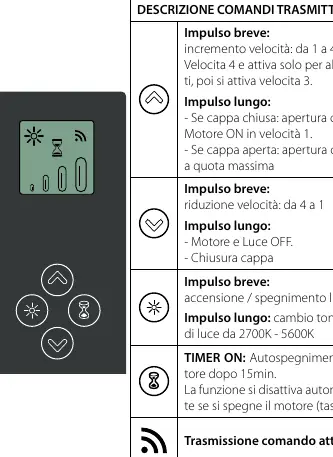

- Touch panel: Explains button functions for light, motor, and speed.
Model compatibility
- Compatible with optional carbon-zeolite filters for recirculation mode.
- Not suitable for outdoor installation.
