User Manual for Falmec Design Tab Range Hood
Quick guide for the Falmec Design Tab range hood. Includes installation steps, operation instructions, maintenance, and safety warnings.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This guide provides essential information for the installation, operation, and maintenance of the Falmec Design Tab range hood. Always refer to the full manual for detailed safety instructions and technical specifications.
Installation
The hood can be installed in various configurations. Ensure all installation work is performed by qualified personnel in compliance with local regulations.
- Wall Mounting: Use the provided fixing kit (screws and plugs) only on masonry walls. For other wall types, assess alternative fixing systems based on wall strength and hood weight.
- Outlets: The hood supports both vertical and rear outlets. Ensure the outlet pipe has a diameter not less than the hood fitting, minimal bends, and a slight downward slope in horizontal sections to prevent condensation.

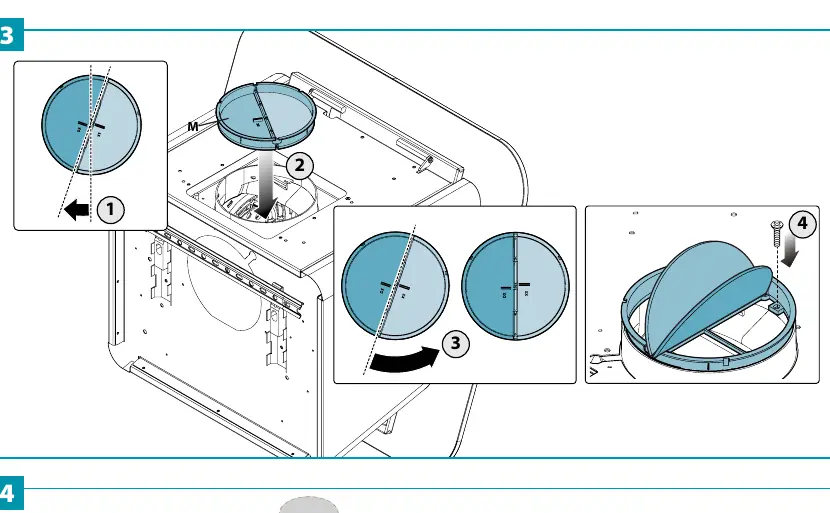

- Safety Screws: Mandatory safety screws must be installed as shown in the assembly steps.
Operation
The hood is controlled via an electronic pushbutton panel:
- Motor ON/OFF: Turns the motor on or off.
- Speed Control: Increase or decrease speed from 1 to 4. Speed 4 is active for a few minutes before reverting to speed 3.
- Light: Turns the lighting on or off.
- Timer: Enables auto-switch-off after 15 minutes.
- Filter Alarm: Indicates when metal anti-grease filters require maintenance (after approximately 30 hours of use). Press and hold the timer button for 3 seconds to reset the counter.
Maintenance
Regular maintenance ensures optimal performance and longevity.
- Cleaning: Clean external surfaces at least every 15 days using a damp cloth and neutral detergent or "Magic Steel" wipes for stainless steel. Do not use abrasive or corrosive products.
- Metal Anti-Grease Filters: Wash at least once a month in hot water with dish soap or in a dishwasher at low temperatures (max 60°C) without detergent.
- Active Carbon Filters: These are optional and retain odors. Replace according to the instructions provided with the filter packaging.
- Lighting: The hood uses high-efficiency LED spotlights. If replacement is necessary, follow the steps illustrated in the manual.
Safety
Always disconnect the power supply before cleaning or maintenance. Do not use the hood with wet hands or bare feet. Ensure the room is well-ventilated if other gas-powered appliances are in use simultaneously.
Manufacturer information
Falmec S.p.a.
Practical help
Common problems
Pushbutton panel is completely inactive
Disconnect the power supply for approximately 5 seconds, preferably using the main switch, then reconnect to restore normal operation.
Filter alarm is active
Clean the metal anti-grease filters, then press and hold the timer button for 3 seconds to reset the counter.
Before use
- Check that the mains voltage matches the data plate inside the hood.
- Ensure the electrical system is properly earthed.
- Verify that the hood is not installed outdoors.
- Ensure metal anti-grease filters are correctly installed.
- Check that the electrical socket is easily accessible.
Images and diagrams

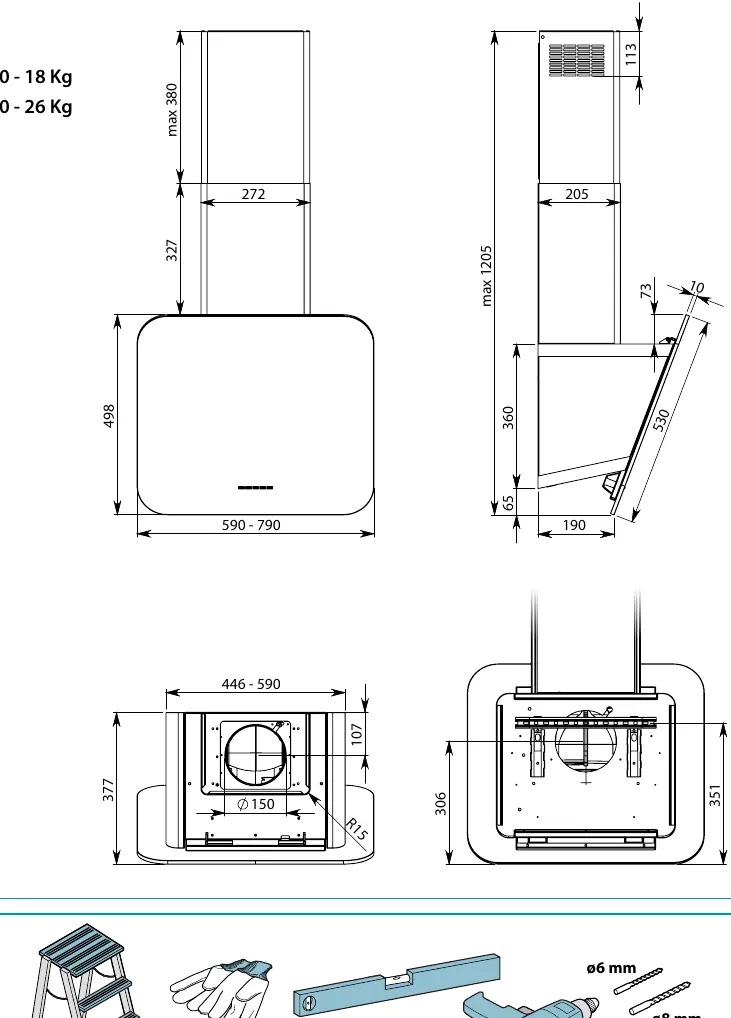

- Installation diagrams show wall mounting measurements and safety screw placement.

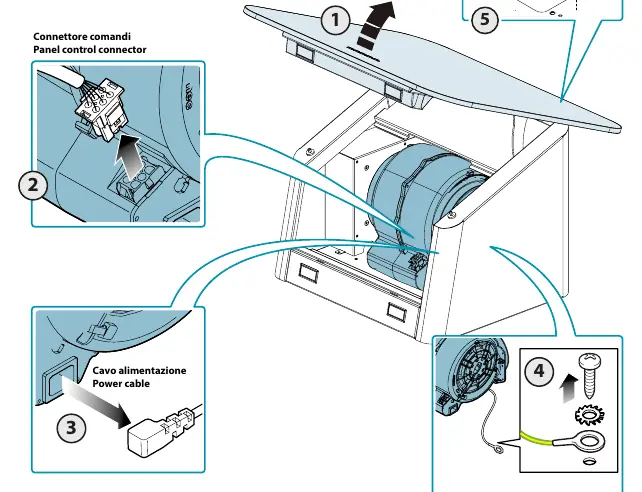

- Wiring diagrams illustrate the motor and control panel connections.
- Filter maintenance diagrams show how to remove and clean the metal filters.
Model compatibility
- Minimum distance from gas hob: 65 cm (can be reduced per EN60335-2-31).
- Not for outdoor use.
- Requires adequate ventilation if used with gas-powered appliances.
