User Manual for Festive 120cm Waving Reindeer on Tree (P058157)

Quick Guide

This product is a seasonal decoration designed for both indoor and outdoor use. It features an inline timer switch that automatically cycles the lights (8 hours on, 16 hours off). The transformer must be kept indoors at all times. Ensure all cables are fully unwound before use to prevent tripping hazards.

Box Contents

• 1 x Infinity light
• 1 x Mounting base
• 1 x Transformer with inline timer function
• 1 x Pack of outdoor fittings

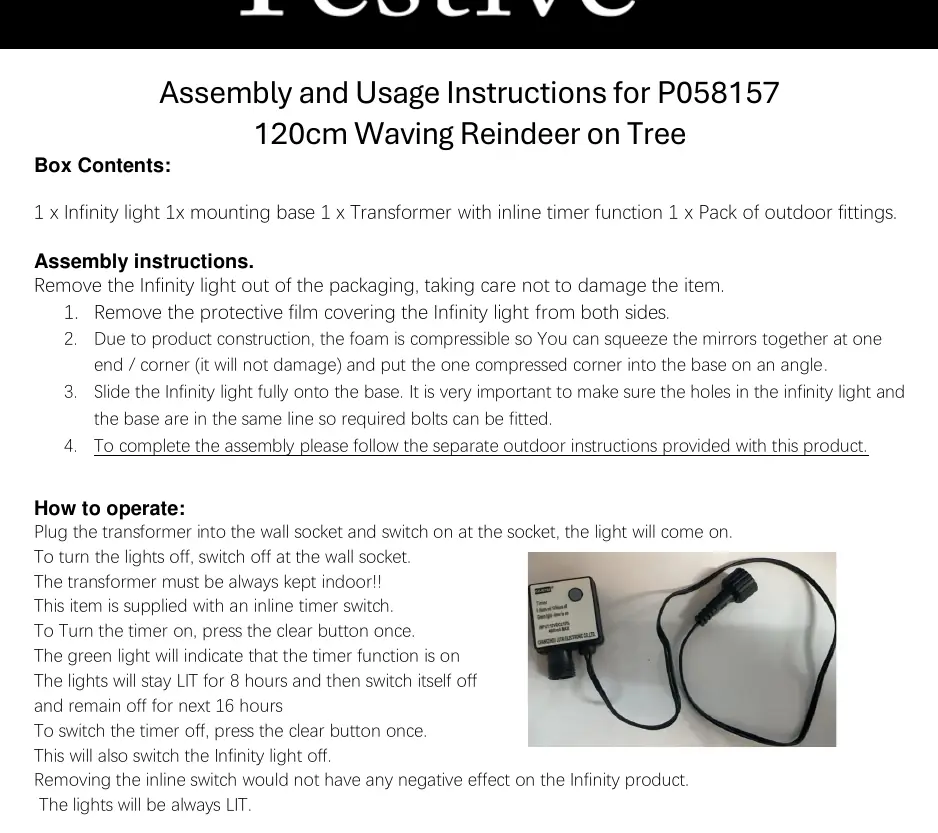

Assembly

1. Remove the Infinity light from the packaging, taking care not to damage the item.
2. Remove the protective film covering the Infinity light from both sides.
3. Due to the compressible foam construction, you can squeeze the mirrors together at one end or corner to insert it into the base at an angle.
4. Slide the Infinity light fully onto the base. Ensure the holes in the light and the base are aligned so the required bolts can be fitted.
5. Follow the separate outdoor instructions provided with this product to complete the setup.

Operation

Plug the transformer into a wall socket and switch it on. The lights will come on.

• Timer Function: Press the clear button on the inline switch once to turn the timer on. A green light will indicate that the timer is active.
• Cycle: The lights will stay lit for 8 hours, then switch off automatically for 16 hours.
• Turning Off: Press the clear button once to switch the timer off. This will also turn off the Infinity light.
• Continuous Operation: Removing the inline switch will cause the lights to remain lit constantly.

Care and Maintenance

• Check fittings regularly to ensure they remain tight.
• Check outdoor fixing cables regularly to ensure they are taut and prevent the item from tipping over.
• Remove the base and store the item flat when not in use.
• Clean the product with a dry, clean cloth.

Safety Warnings

• Never connect this product directly to the mains supply without the supplied transformer.
• The transformer is for indoor use only.
• Keep away from children and pets.
• Do not operate the item while it is still in the packaging.
• The LED lamps are not replaceable.
• Do not connect this set electrically to another set.
• Do not secure wiring with staples or nails.
• Do not close doors or windows on the product, as this may damage the wiring insulation.
• Do not overload wall sockets.
• Do not lay the cable under carpets or where it can be damaged.

Electrical Specifications

• Input: 230-240V ~ 50Hz
• Operating Voltage: 10.8V DC 23.4W
• Transformer Rating: 12V DC 36W
• LED Bulb Rating: 3V 0.067A 0.2W
