User Manual for Holiday Living 4ft Flocked Potted Tree 016-997-4R

Quick guide for the Holiday Living 4ft Flocked Potted Tree (016-997-4R). Includes assembly instructions, safety guidelines, fuse and bulb replacement procedures, and troubleshooting tips.

Table of contents

Quick Guide: Assembly and Maintenance

This guide provides essential instructions for the Holiday Living 4ft Flocked Potted Tree. Before assembly, ensure all parts are present. The estimated assembly time is 15 minutes. Always inspect the product for damaged wires or loose connections before use. This product is intended for indoor and covered outdoor use.

Safety Information

Do not install on trees with metal needles, leaves, or branch coverings.
Do not secure wiring with staples or nails.
Unplug the product when leaving the house, retiring for the night, or if left unattended.
Do not close doors or windows on the product or extension cords.
This product is equipped with push-in type lamps; do not twist them.
If the fuse blows, unplug the product and any additional strings attached before replacing it.

Assembly Instructions

Follow these steps to assemble your tree:

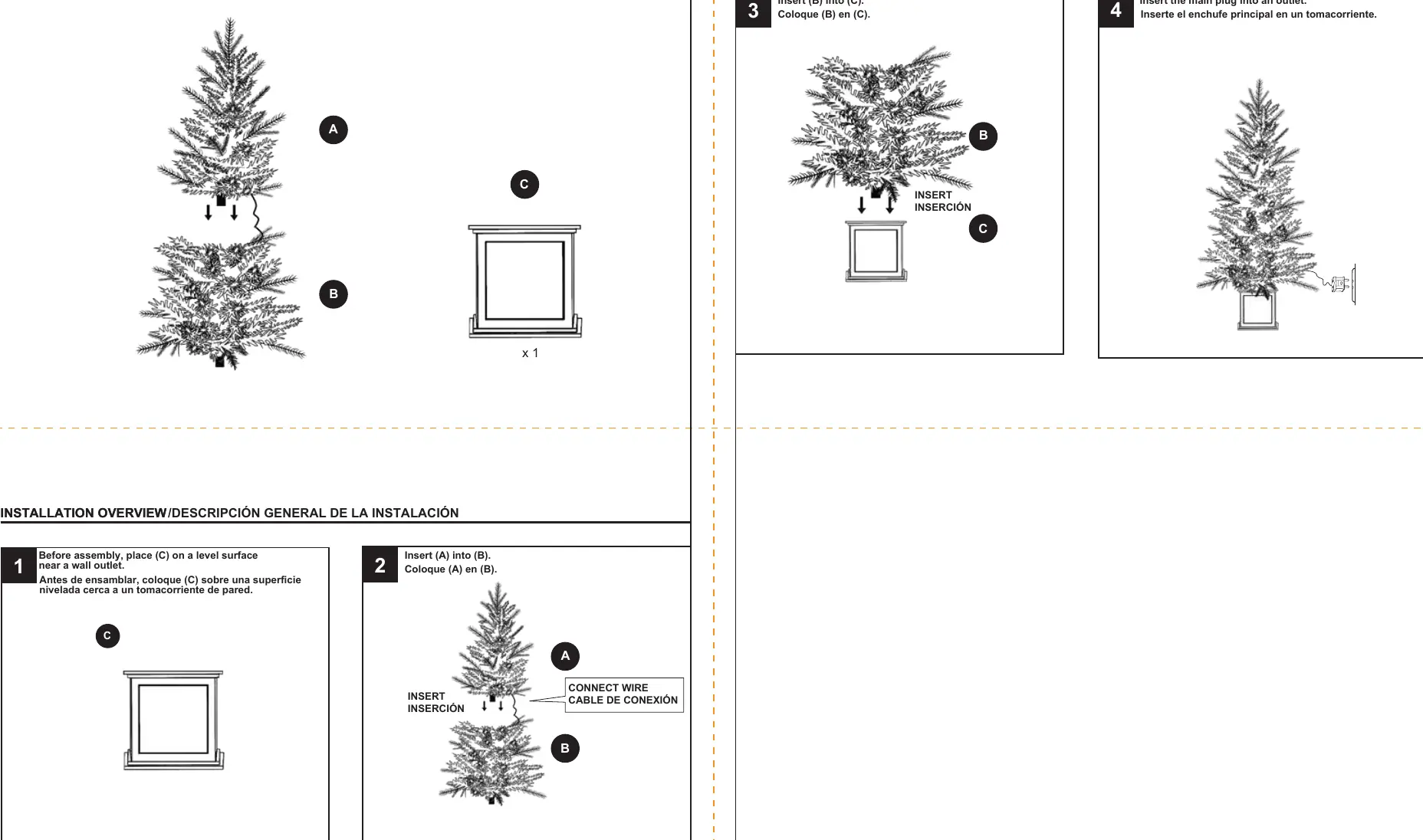

Assembly steps for the tree sections and base.

Preparation: Place the base (C) on a level surface near a wall outlet.
Assembly: Insert the tree section (B) into the base (C).
Top Section: Insert the top section (A) into the tree section (B).
Connection: Connect the wires between the sections.
Power: Insert the main plug into an electrical outlet.

Maintenance and Servicing

Replacing the Fuse

Unplug the product from the outlet. Do not pull by the cord.
Slide open the fuse access cover on top of the attachment plug.
Remove the fuse carefully.
Replace only with a 3 Amp, 125 Volt fuse.
Slide the fuse access cover closed.

Replacing the Lamp

Unplug the product.
Pull the lamp and plastic base straight out of the lamp holder.
Replace with a 3.6 Volt, 0.072 Watt LED lamp.
If the new lamp base does not fit, straighten the lamp leads, thread them through the holes of the old base, and bend the leads up to touch the contacts inside the holder.

Troubleshooting

One section does not light: Check each bulb one at a time; replace any broken or loose bulbs.
Item does not light up: Ensure the power is on, check the fuse in the main plug, or check for broken/loose bulbs.

Practical help

Common problems

One section does not light

Check each bulb individually and replace any broken or loose bulbs.

Item does not light up

Verify the power source, check the fuse in the main plug, or inspect for broken/loose bulbs.

Before use

Ensure all parts are present before starting assembly.
Place the base on a level surface near a wall outlet.
Inspect the product for cut, damaged, or frayed wire insulation.
Ensure the tree is well secured and stable.
Verify the product is not placed near heat sources like heaters or fireplaces.

Specs in practice

Assembly Time: Approximately 15 minutes.

Images and diagrams

Assembly involves placing the base (C), inserting section (B) into (C), and section (A) into (B).
Ensure wires are connected between sections before plugging in.

Model compatibility

For indoor and covered outdoor use.
Do not install on trees with metal needles or branches.
Do not exceed 216 Watts total when connecting multiple light strings.
