User Manual for Feyree 11KW Portable EV Charger
Quick guide for the Feyree 11KW Portable EV Charger. Learn about touch screen operation, intelligent scheduling, WiFi connectivity, safety features, and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
The Feyree 11KW Portable EV Charger is an advanced charging solution featuring a 4.3-inch capacitive touch screen, intelligent scheduling, and WiFi connectivity. This device is designed for modern electric vehicles using a Type 2 connector, providing up to 11kW of power via a 3-phase 380V connection.
Touch Screen Interface
The charger features an intuitive touch screen that serves as the central control hub. Users can monitor real-time data, including:
- Charging duration and energy transferred.
- Voltage and current metrics.
- Gun head and external shell temperatures.
- Charging status and error logs.
Intelligent Scheduling
The system allows for precise charging control to optimize energy costs:
- Daily Recurring Cycles: Set consistent charging routines that repeat every 24 hours.
- Customizable Windows: Program charging sessions during off-peak hours to reduce costs.
- Default Settings: The charger can learn and remember preferred charging times and durations.
WiFi and App Connectivity
The charger includes built-in WiFi for remote management:
- App Support: Compatible with Tuya Smart and SmartLife applications.
- Remote Control: Monitor status, adjust settings, and initiate charging sessions from anywhere with internet access.
- Updates: Supports firmware updates over-the-air (OTA) to ensure the latest security and features.
Safety and Protection
The device is built with enterprise-grade safety mechanisms:
- RCD Protection: Type B Residual Current Device with dual leakage detection (AC 30mA + DC 6mA).
- Thermal Monitoring: Continuous monitoring of the gun head and shell temperature with overheat protection.
- Electrical Protections: Includes overvoltage, undervoltage, overcurrent, overload, lightning, and short circuit protection.
- Durability: IP66 waterproof rating with a robust 3.5mm shell and ePTFE waterproof breathing membrane.
Technical Specifications
- Max Power: 11kW
- Connection: 3-phase 380V
- Adjustable Current: 8A, 10A, 13A, 16A
- Connector Type: Type 2
- Materials: Copper alloy components with silver-plated connectors
Manufacturer information
Shenzhen Feyree Technology Co., Ltd.
Practical help
Common problems
WiFi connection issues
Navigate to the 'Net Settings' menu on the touch screen and use the 'Reset WIFI' function to reconfigure the connection.
Charging not starting
Ensure the device is properly bound to the app and check that all safety parameters (Ground Check, Leakage Check) are enabled and satisfied in the 'Basis Settings' menu.
Before use
- Verify the power supply is a 3-phase 380V connection.
- Ensure the vehicle is compatible with a Type 2 charging connector.
- Check that the charger is placed in a safe, dry location (IP66 rated, but avoid submersion).
- Confirm the charger is securely connected to the power source.
- Check the touch screen for any active error logs or temperature warnings before starting.
Specs in practice
- Type 2 Connector
- The standard plug type used for most European electric vehicles.
Images and diagrams

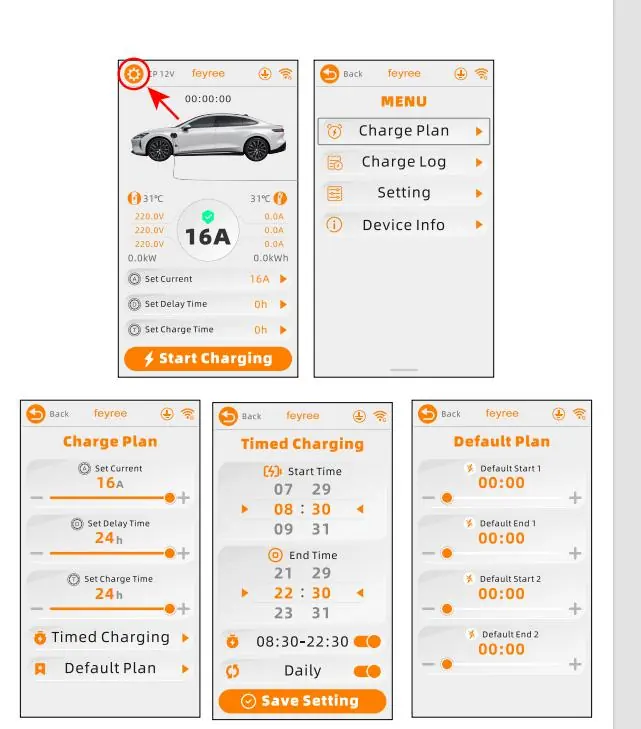

- The touch screen interface provides a 'Menu' to access Charge Plan, Charge Log, Settings, and Device Info.

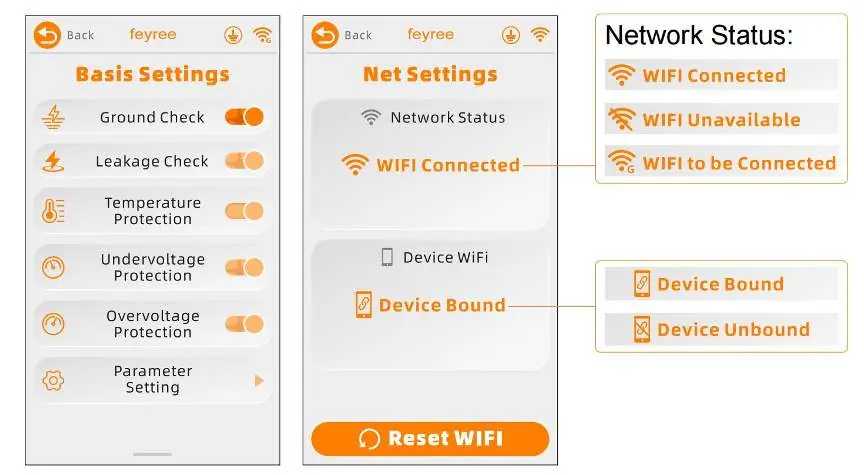

- The 'Basis Settings' menu allows users to toggle safety protections like Ground Check, Leakage Check, and Temperature Protection.
- The 'Net Settings' menu displays the current WiFi status and allows for device binding/unbinding.
Model compatibility
- Compatible with Tuya Smart and SmartLife mobile applications.
- Designed for use with European electric vehicles equipped with Type 2 charging ports.
