Roline Portable EV Charging Cable User Manual
Comprehensive user manual for the Roline Portable EV Charging Cable. Includes operating instructions, LED status indicators, safety precautions, and technical specifications for safe vehicle charging.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Roline Portable EV Charging Cable is designed for safe and efficient electric vehicle charging. Key operational requirements include an operating temperature range of -30°C to +50°C. The device features 11 built-in protection measures, including over-voltage, under-voltage, over-current, temperature, and leakage protection. Always ensure the power source is properly grounded before use.
Product overview
The charging system consists of a Type 2 EV connector, a control box (IC-CPD) with an OLED screen, and a power plug. The control box is rated IP67, while the vehicle connector is rated IP54 (unmated). The system includes buttons for reservation charging time and switching current.
Operating instructions
The control box interface allows you to manage charging parameters:
- Switch current button: Use this to toggle between available charging currents (6A/10A).
- Reservation charging time button: Use this to set a delayed start for charging.
- OLED Screen: Displays real-time data including selected current, charging time, electricity consumed, and temperature.

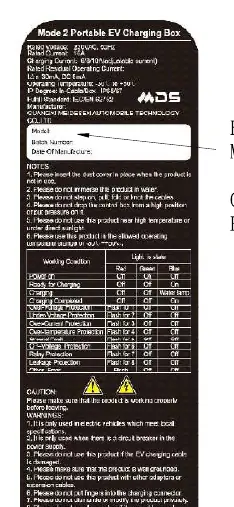

LED status indicators
The device uses LED lights to communicate the current working condition:
- Ready for Charging: Green light on.
- Charging: Green light flashing.
- Charging Completed: Green light on.
- Over-Voltage/Under-Voltage Protection: Red light flashing.
- Over-Temperature Protection: Red light flashing.
- Leakage Protection: Red light flashing.
Safety precautions
To ensure safe operation, follow these guidelines:
- Do not immerse the product in water.
- Do not use the product if the cable or control box is damaged.
- Ensure the power outlet is properly grounded.
- Do not use with extension cables or adapters.
- Do not pull or twist the cables.
- Keep the control box away from high temperatures or pressure.
- Do not insert fingers into the charging connector.
Technical specifications
- Rated Voltage: 250V AC
- Rated Current: 6A/10A
- Operating Temperature: -30°C to +50°C
- Protection: IP67 (Control box), IP54 (Connector)
- Mechanical Life: >10,000 insertions
Manufacturer information
ROLINE
Practical help
Common problems
Over-temperature protection triggered
Stop charging and allow the device to cool down in a well-ventilated area.
Under-voltage or Over-voltage protection
Check the power source voltage and ensure it is stable and within the rated range.
Leakage protection triggered
Check the connection and ensure the power outlet is properly grounded.
Before use
- Inspect the cable and plug for any visible damage.
- Ensure the power outlet is properly grounded.
- Verify the charging connector matches your vehicle's port.
- Check that the environment is within the -30°C to +50°C temperature range.
- Ensure the control box is not submerged in water.
Specs in practice
- IP67 (Control Box)
- The control box is protected against dust and temporary immersion in water.
- IP54 (Connector)
- The connector is protected against dust and water splashes from any direction.
Images and diagrams

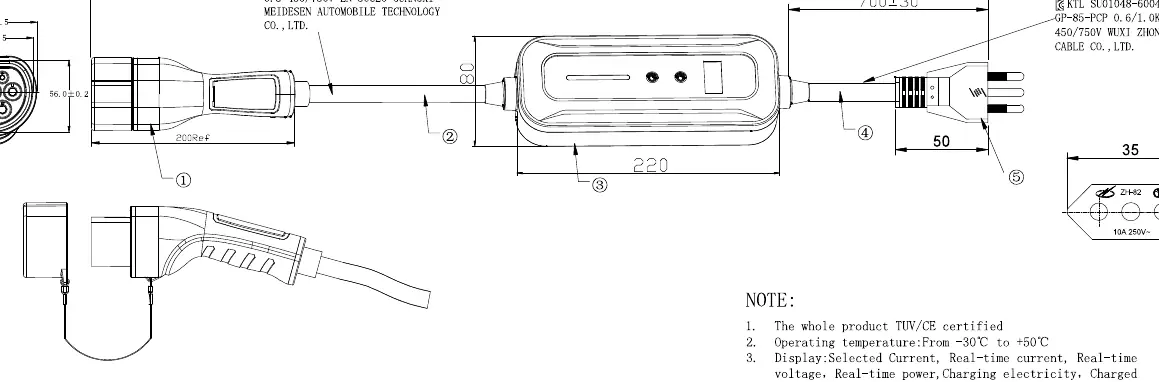

- The technical drawing on page 1 illustrates the cable assembly, including the plug, control box, and EV connector dimensions.
- The control box interface diagram on page 2 identifies the location of the reservation and current switch buttons.
Model compatibility
- Designed for Mode 2, Type 2 charging applications.
- Not compatible with extension cables or adapters.
