Fiamma F43van Awning User Guide
Quick guide for the Fiamma F43van awning. Learn about technical features, installation with standard and vehicle-specific brackets, LED setup, and compatible accessories.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Fiamma F43van is a wall-mounted awning specifically designed for campervans. It features a compact design that reduces the maximum height from the ground, allowing for easier access to parking spaces. The awning operates via a winch with a magnetic catch concealed in the cover and offers negative inclination opening to maximize usable space at full height (up to 2.20m).
Technical features
- Winch with magnetic catch: Concealed in the cover for a clean look and convenient operation.
- Negative inclination: Allows the awning to open at an angle to maintain height.
- LED provision: The case box is designed to accommodate LED lighting.
- Telescopic leg: Equipped with a reinforced joint and Secure Lock system to adjust the height of the lead bar.
- Guides: Features 3 guides (2 concealed in the front and 1 in the case box).
Installation
The F43van awning comes standard with corresponding brackets (yellow). If your vehicle requires a specific mounting solution, optional vehicle-specific brackets (red) are available. These optional brackets are designed to match the mounting points of the awning.
LED predisposition
The awning case box includes a dedicated channel for LED lighting installation. This allows for integrated lighting solutions to be added to the awning structure.
Accessories
The F43van is compatible with a wide range of Fiamma accessories, including:
- Room Van Premium
- Blocker Pro 260 Van
- Blocker
- Sun View XL 100/260
- Side Block
- Shade Sun View
- Rafter Led Van
- Tie Down
- Patio-Mat / Light
- Kit Led Strip Awning F43van
- Kit Awning Pegs
- Kit Awning Plate
- Kit Awning Hangers
- Kit Rain Guard
Technical specifications
The F43van is available in two main sizes:
- F43van 270: 270cm length, 225cm extension, 6.9m² shade surface, 19.0kg weight.
- F43van 300: 310cm length, 250cm extension, 8.9m² shade surface, 21.5kg weight.
Manufacturer information
Fiamma SpA
Practical help
Common problems
Mounting compatibility
The standard bracket (yellow) may not fit all vehicles. Check if your specific campervan model requires the optional vehicle-specific bracket kit (red).
Height clearance
The F43van is designed with a compact shape to reduce maximum height from the ground, which helps in accessing parking spaces.
Before use
- Verify the awning length (270cm or 310cm) matches your vehicle requirements.
- Confirm if you need the standard bracket (included) or an optional vehicle-specific bracket kit.
- Ensure the winch mechanism is free of obstructions before operating.
- Check that the telescopic legs are properly secured using the Secure Lock system.
Specs in practice
- Negative inclination
- Allows the awning to open at a downward angle, ensuring maximum usable space at full height (max 2.20m).
- Magnetic catch
- A concealed mechanism in the cover that secures the winch handle.
Images and diagrams
- The bracket installation diagram illustrates the difference between the standard bracket (yellow) and the optional vehicle-specific bracket (red).

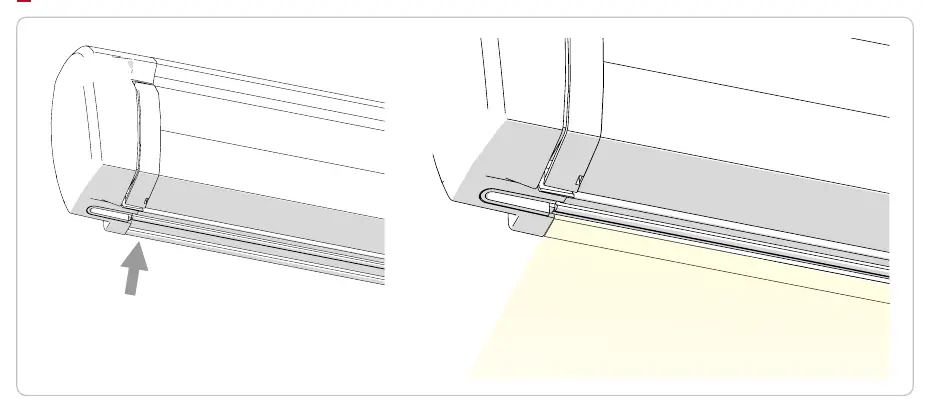

- The LED predisposition diagram shows the channel within the case box where LED strips can be installed.
Model compatibility
- Compatible with various Fiamma accessories including Room Van Premium, Blocker, and Sun View XL.
- LED strip installation is supported via the integrated channel in the case box.
