User Manual for Fiamma Caravanstore Support Leg
Quick guide for the Fiamma Caravanstore Support Leg. Learn how to install, use, and maintain your awning support leg for optimal stability and weather protection.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides installation and usage instructions for the Fiamma Caravanstore Support Leg. It is essential to check the product for any damage upon receipt and ensure it is compatible with your specific awning model. If you have any doubts regarding installation, usage, or product limitations, please contact your dealer.
Package contents
- 1x Support Leg (Weight: 1.7 kg)
Compatibility
The support leg is designed for use with the following Fiamma awning models:
- Caravanstore XL 440 (Item No. 07740G01(X))
- Caravanstore XL 500-550 (Item Nos. 07740H01(X), 07740L01(X))
Installation and usage
Follow these steps to install and use the support leg:
- Preparation: Ensure the awning is positioned correctly.
- Insertion: Insert the support leg into the designated slot on the awning structure.
- Securing: Use the locking mechanism to secure the leg in place.
- Adjustment: Adjust the height and tension of the leg to ensure the awning fabric is taut and stable.
Safety and maintenance
The awning is designed primarily for sun protection. In case of wind, rain, or snow, it is strongly recommended to close the awning.
If you must keep the awning open during light rain, take the following precautions to prevent water pooling:
- Lower one side of the awning to allow water to flow away.
- Install the tension rafter to maintain proper fabric tension.
Manufacturer information
Fiamma SpA
Practical help
Common problems
Awning damaged by wind, rain, or snow
Close the awning immediately. If it must remain open during light rain, lower one side to allow water drainage and install the tension rafter.
Unsure about installation or product limitations
Contact your dealer for assistance.
Parts damaged during transport
Check all components upon receipt and contact the dealer if any parts are broken or deformed.
Before use
- Check that no parts were damaged or deformed during transport.
- Verify compatibility with your specific Caravanstore model (XL 440 or 500-550).
- Ensure you have the support leg and necessary tension rafter.
Images and diagrams

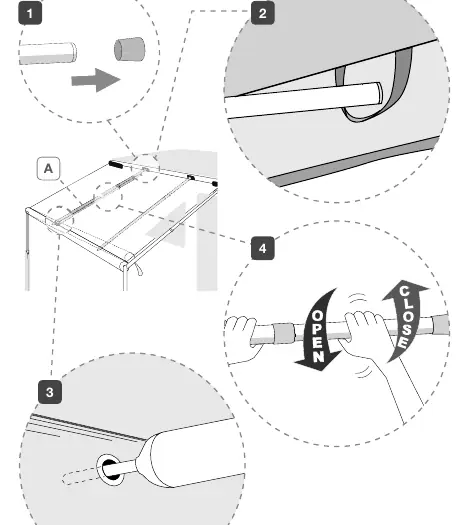

- Steps 1-4: Initial setup and insertion of the support leg into the awning structure.

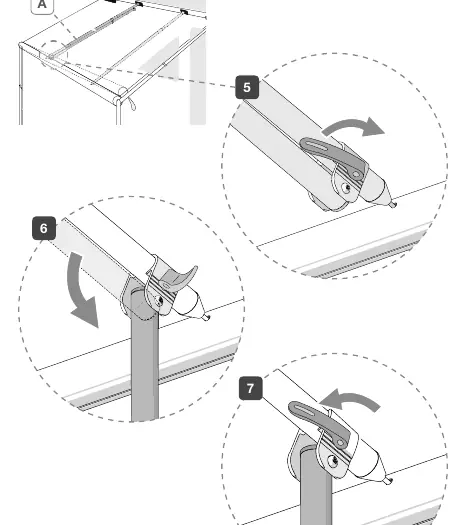

- Steps 5-7: Locking the support leg mechanism.
- Steps 8-9: Adjusting the height and tension of the leg.
- Rain drainage diagram: Shows how to lower one side of the awning to prevent water accumulation.
Model compatibility
- Designed for Caravanstore XL 440, 500, and 550 models.
