User Manual for Fieldmann FDU 201001-E Ash Vacuum Cleaner
Quick guide for the Fieldmann FDU 201001-E ash vacuum cleaner. Includes assembly, operation, filter cleaning, and safety instructions.
Quick answers from the manual
Quick answer
- The Fieldmann FDU 201001-E is an ash vacuum cleaner designed for dry vacuuming. It features a 20L container and a 1000W motor. Always ensure the filter is installed before use. p. 16, 20
Key actions
- Assembly p. 18
- Filter Cleaning p. 19
First start
- Assemble the hose and tube, ensure the filter is installed, and connect to a power source. p. 18
Problems and fixes
Reduced suction
Clean or replace the filter.
p. 19Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Input Power | 1000W | Power consumption | p. 20 |
Where to find it in the PDF
- Parts Diagram p. 3
- Assembly p. 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Fieldmann FDU 201001-E is an ash vacuum cleaner designed for dry vacuuming. Before using the device, ensure the filter is correctly installed. Never vacuum hot embers, burning items, or materials exceeding 40°C (104°F).
Machine Description
The vacuum cleaner consists of the following main components: switch, handle, motor top cover, motor body cover, power cord, collecting container, clamps, filter, metal hose, hose connector, hose handle, and aluminum tube.
Assembly
- Prepare all accessory parts.
- Attach the tube to the hose handle.
- Assemble the flexible hose and insert the connector into the suction hole on the upper side of the vacuum cleaner. Push inwards until you hear a click indicating it is in the correct position.
Operation
The vacuum cleaner is turned on and off using the ON/OFF switch. After finishing vacuuming, turn off the appliance, pull the plug from the mains socket, remove the hose from the suction hole, and empty the accumulated dust from the collecting container.
Filter Cleaning
It is recommended to clean the filter at least once a month, or when suction force is reduced and motor noise is higher than usual. Before cleaning, always disconnect the vacuum cleaner from the power supply. The best cleaning method is to shake out the filter manually. Do not use a dishwasher or a hairdryer for drying.
Safety
- Never vacuum liquids, flammable, or explosive substances.
- Always disconnect the plug from the mains socket when not in use or before maintenance.
- Never use the vacuum cleaner without an installed filter.
- Keep the appliance out of reach of children.
Manufacturer information
Fieldmann
Practical help
Common problems
Reduced suction power
Clean or replace the filter.
Motor noise is higher than usual
Clean the filter.
Before use
- Check if all parts are present
- Ensure the filter is installed
- Check the power cord for damage
- Ensure hands are dry before connecting to power
Specs in practice
- Container Capacity
- 20L
- Max Ash Temperature
- 40°C
Images and diagrams

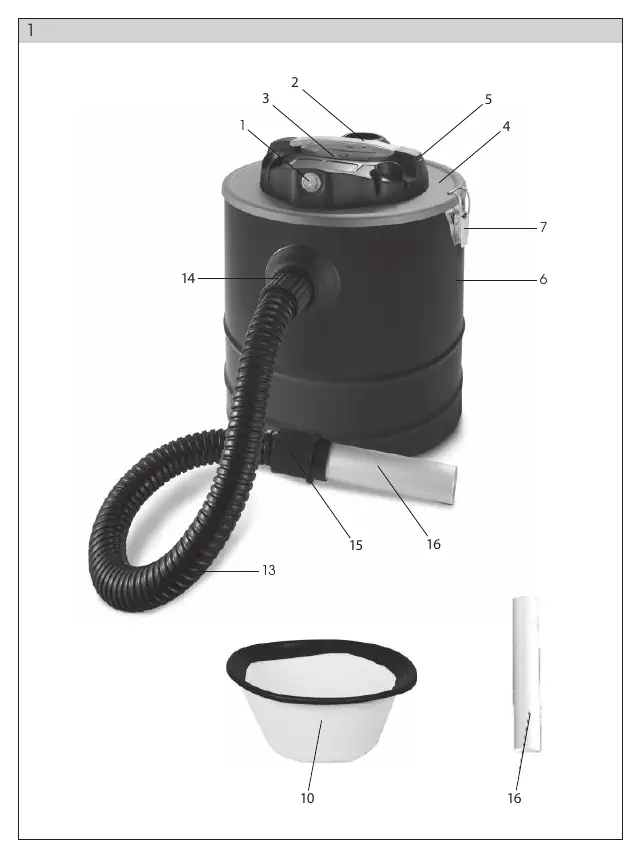

- Fig 1: Parts identification
- Fig 2: Assembly steps
- Fig 3: Power switch
- Fig 4: Emptying the container
- Fig 5: Filter maintenance
Model compatibility
- Intended for dry vacuuming only
- Do not vacuum hot embers or burning items
