User Manual for Fieldmann FZR 2041-E Electric Lawn Mower
Get started with your Fieldmann FZR 2041-E electric lawn mower. This guide covers assembly, operation, maintenance, safety instructions, and troubleshooting tips to ensure optimal performance.
Quick answers from the manual
Quick answer
- The Fieldmann FZR 2041-E is an 1800W electric lawn mower. To operate, assemble the handle and wheels, connect to a 230-240V power source, and use the safety button and switch lever to start. p. 3, 6, 12
Key actions
- Assemble the handle and wheels p. 10
- Adjust mowing height p. 12
- Replace the blade p. 15
First start
- Assemble the handle using the quick coupler levers. p. 10
- Attach the wheels to the axle. p. 10
- Connect to a 230-240V power source. p. 12
Problems and fixes
Mower does not work
Check cable connections and the electric socket.
p. 14
Excessive vibration
Stop the engine, disconnect power, and check for a bent shaft or unbalanced blade.
p. 14Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power input | 1800 W | Motor power | p. 13 |
| Coverage width | 380 mm | Cutting width | p. 13 |
| Mowing heights | 25-75 mm | Adjustable cutting height | p. 13 |
Where to find it in the PDF
- Assembly p. 10, 11
- Operation p. 12
- Technical Specifications p. 13
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Fieldmann FZR 2041-E is a rotary electric lawn mower. Before using the machine, ensure you have read all safety instructions. Key steps include assembling the handle and wheels, attaching the grass catcher, and connecting the power cable. Always disconnect the power before performing any maintenance, such as blade inspection or cleaning.

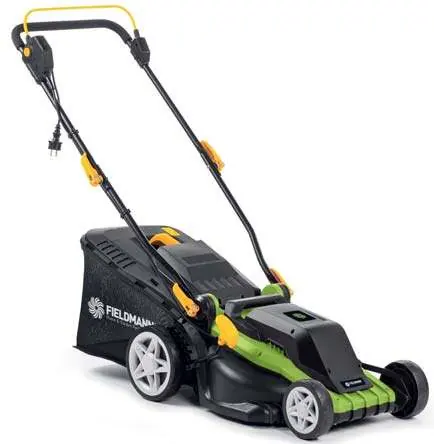

Product description
The mower features a start/stop trigger with a safety lock, an adjustable handle, and a central mowing height adjustment lever. The main components include:
- Start/stop trigger and safety lock
- Handle (top and bottom parts)
- Transport handle
- Mowing height adjustment lever
- Grass catcher
Assembly
Handle: Connect the top and bottom parts of the handle using the included screws and nuts with quick coupler levers. Attach the bottom part to the mower and secure the power cord using plastic clips.
Wheel attachment: Place the wheel on the axle, add the washer, secure with the cotter pin, and attach the wheel cover. Repeat for all four wheels.
Grass catcher: Insert the handle into the cover, mount the textile part to the frame, and attach the catcher by lifting the rear cover of the mower.
Operation
Mowing height: The mower features central height adjustment with 6 settings ranging from 25 to 75 mm. Push the lever outwards, move to the desired position, and push inwards to lock.
Starting/Stopping: To start, press and hold the safety button, then pull the switch lever toward the handle. To stop, release the switch lever. Do not turn the mower on and off in quick succession.
Maintenance
Regularly inspect the machine for loose parts or damage. Before inspecting the blade, always disconnect the power. Use protective gloves when handling the blade. If the blade is damaged or dull, contact an authorized service center for replacement or sharpening.
Troubleshooting
If the mower does not work, check the power cable connection and the electric socket. If the mower vibrates excessively, stop the engine immediately, disconnect the power, and check for a bent shaft or unbalanced blade. For uneven cutting, check the mowing area and adjust the mowing height.
Technical specifications
The mower operates on 230-240 V, 50 Hz power. It has a power input of 1800 W, a coverage width of 380 mm, and a grass catcher volume of 45 liters. The total weight is 10 kg.
Manufacturer information
Fieldmann
Practical help
Common problems
Mower does not work
Check if the extension cable is connected to both the mower and a live electric socket. The control trigger may be defective.
Mower vibrates at high speeds
Stop the engine, disconnect from power, and check for a bent engine shaft or an unbalanced blade.
Mower cuts grass unevenly
Check the mowing area for bumps and ensure the mowing height is set correctly.
Difficult to push
The grass may be too long or the mowing height is set too low. Increase the mowing height.
Before use
- Read the user manual carefully.
- Ensure the blade, mounting pin, and mower body are not damaged.
- Check that all nuts, pins, and bolts are securely tightened.
- Ensure the grass catcher is properly attached if in use.
- Verify the power cable is not damaged.
- Wear suitable footwear and long trousers.
Specs in practice
- Coverage width
- 380 mm, the width of the path cut by the blade.
- Mowing heights
- 25-75 mm, adjustable in 6 positions.
- Grass catcher volume
- 45 liters, the capacity of the collection bag.
Images and diagrams

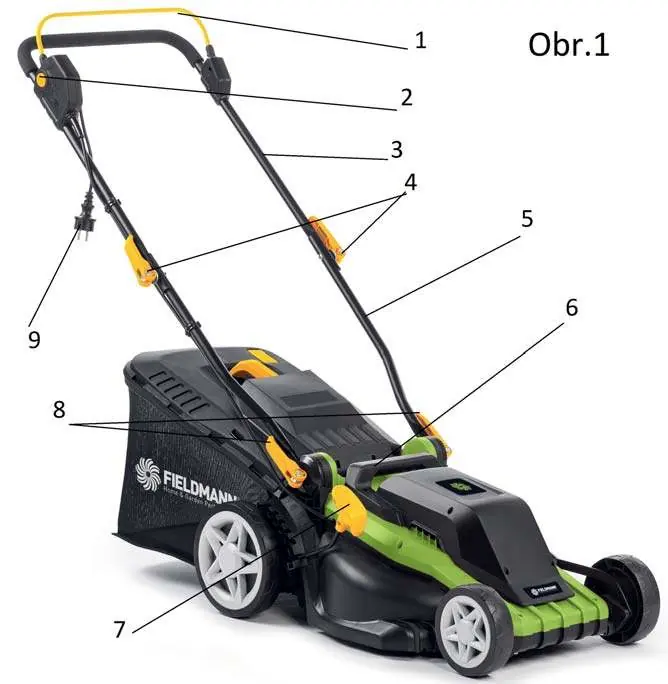

- Fig 1: Overview of the mower parts including the trigger, handle, and height adjustment.

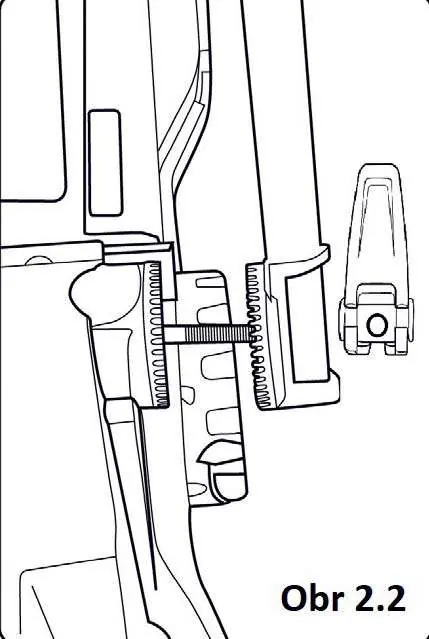

- Fig 2.1/2.2: Instructions for assembling the handle using quick coupler levers.

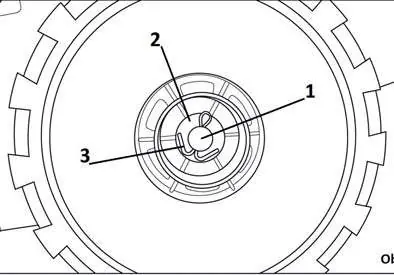

- Fig 3.1: Steps for attaching the wheels to the axle with a cotter pin.
- Fig 5: How to adjust the mowing height using the lever.
- Fig 6: Operation of the start/stop trigger and safety button.
Model compatibility
- Use only with 230-240 V, 50 Hz power supply.
- Recommended to use a residual current device (RCD) with a maximum leakage current of 30mA.
