User Manual for Fieldmann FZR 2021-E Electric Lawnmower
Comprehensive user guide for the Fieldmann FZR 2021-E electric lawnmower. Includes assembly instructions, operation steps, cutting height adjustment, maintenance procedures, and technical specifications.
Quick answers from the manual
Quick answer
- The Fieldmann FZR 2021-E is an electric lawnmower. To start it, connect to a 230-240V power source, press and hold the safety button, and pull the switch lever towards the handle. p. 11, 12
Key actions
- Adjusting cutting height p. 11
- Replacing the blade p. 14
First start
- Assemble the handle and grass catcher, check all fasteners, and ensure the power cable is clear of the cutting area. p. 9, 10, 12
Problems and fixes
Mower vibrates excessively
Check for loose parts or damaged blade.
p. 8Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 1200 W | Power consumption | p. 13 |
| Cutting Width | 320 mm | Blade length | p. 13 |
Where to find it in the PDF
- Assembly p. 9, 10
- Operation p. 11, 12
- Maintenance p. 14
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Fieldmann FZR 2021-E is an electric lawnmower designed for home garden use. Before starting, ensure the power cable is undamaged and the area is clear of debris. To operate, connect to a 230-240V power source, hold the safety button, and pull the switch lever. Always mow in dry conditions and avoid mowing over the power cable.
Safety Instructions
- General Safety: Do not use the mower if the power cable is damaged. Keep children and pets away during operation.
- Operational Safety: Always wear ear protection and eye protection. Do not mow in the rain.
- Blade Safety: The blades continue to rotate for a few seconds after the motor is switched off. Always unplug the mower before performing maintenance or if the cable is damaged.
- Slope Safety: Mow across slopes, not up and down.
Product Description
The mower consists of a handle assembly, switch unit, grass catcher, and cutting deck. Key components include the safety button, switch lever, and height-adjustable wheels.
Assembly
The mower is supplied partially disassembled. Follow these steps:
- Handle Assembly: Attach the switch box to the upper handle. Assemble the lower and upper handle parts using the provided screws and knobs. Secure the cable to the handle using the plastic clips.
- Grass Catcher: Assemble the upper and lower parts of the grass catcher. Attach it to the mower by lifting the rear safety cover.
- Wheels: Attach the wheels to the axles using the provided washers and cotter pins, then install the wheel covers.
Operation
- Cutting Height Adjustment: The mower has 3 height settings (20mm, 38mm, 56mm). Adjust the front and rear wheels to the desired height, ensuring all four wheels are set to the same level.
- Starting/Stopping: To start, press and hold the safety button, then pull the switch lever towards the handle. To stop, release the switch lever.
- Mowing: Always mow in a pattern that keeps the power cable away from the cutting path to prevent accidental cutting.
Maintenance
- General Maintenance: Regularly check that all nuts, bolts, and screws are tight. Inspect the grass catcher for wear.
- Blade Replacement: Unplug the mower before inspecting or replacing the blade. Use protective gloves. Use a screwdriver to prevent the blade from rotating while loosening the blade bolt. Ensure the new blade is installed in the correct orientation.
Technical Specifications
- Power Input: 1200 W
- Power Supply: 230-240 V, 50 Hz
- Cutting Width: 320 mm
- Cutting Height: 20/38/56 mm (3 positions)
- Grass Catcher Volume: 30 L
- Weight: 7.25 kg
Manufacturer information
Fieldmann
Practical help
Common problems
Excessive vibration
Check for loose parts or a damaged/unbalanced blade.
Grass not collecting in the basket
Check if the grass catcher is full or if the discharge chute is clogged.
Mower will not start
Verify the power connection and ensure the safety button is held down while pulling the switch lever.
Before use
- Check that the power cable is undamaged.
- Ensure all nuts, bolts, and screws are tightened.
- Verify the grass catcher is properly attached.
- Clear the lawn of stones, sticks, and debris.
- Ensure the blade is sharp and securely fastened.
Specs in practice
- Cutting Width
- 320 mm blade length.
- Cutting Height
- Adjustable to 20, 38, or 56 mm.
- Grass Catcher
- 30-liter capacity for clippings.
Images and diagrams

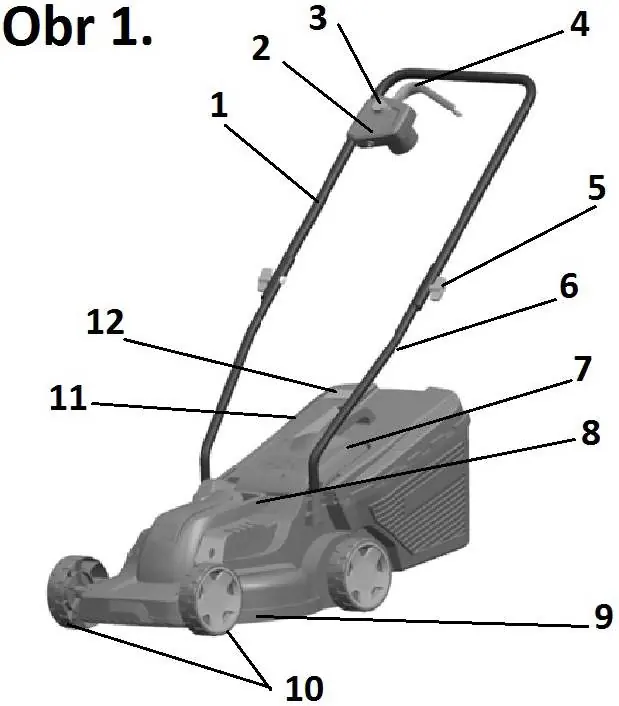

- Figure 1: Overview of mower components.

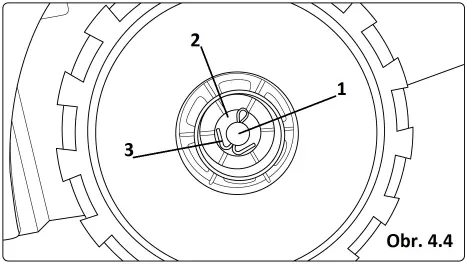

- Figure 4.4: Wheel assembly procedure.
- Figure 6: Starting mechanism (Safety button and switch lever).
- Figure 7: Recommended mowing pattern to avoid cable damage.
Model compatibility
- Use only with 230-240V, 50Hz power supply.
- Maximum recommended extension cord length is 30 meters.
