User Manual for Flamma FG200 Intelligent Combined Effects Pedal

Quick guide from the manual

The Flamma FG200 is a versatile effects pedal designed for guitarists. To get started, ensure the device is charged using a 5V/2A power source via the USB-C port. Connect your instrument to the INPUT jack and your amplifier or headphones to the OUTPUT or PHONES jack. The device defaults to PRESET mode upon startup. You can switch between LIVE and PRESET modes by pressing footswitches B and C simultaneously.

Safety Instructions

• Power Adapter: Use only a power adapter with specifications approved by relevant authorities (e.g., UL, CSA, VDE, CCC). Do not use in damp environments.
• Battery: Do not charge when wet. Use the designated charger. Charge within the specified temperature range. If the battery emits odors or swells, stop use immediately and contact support.
• Cleaning: Do not use abrasive powders, alcohol, solvents, or chemical agents.
• Placement: Avoid direct sunlight, heat sources, and excessively humid or dry environments.

Panel Description

The device features a module knob for parameter adjustment, a footswitch light bar for status indication, and four footswitches (A, B, C, D) for control. The screen displays mode status, preset information, and parameter values. The rear panel houses the INPUT, OUTPUT, PHONES jacks, and the USB-C port.

Device Connections

Standard Connection: Connect your guitar to the INPUT jack. Connect your amplifier, audio interface, or other pedals to the OUTPUT jack. Headphones can be connected to the PHONES jack.

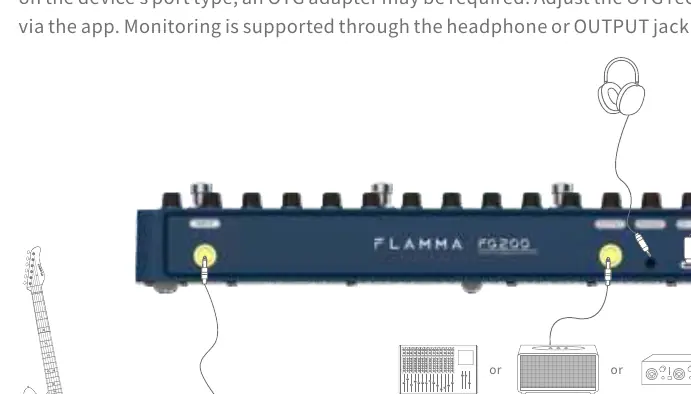

OTG Connection: Connect the FG200 to a smartphone or tablet using a USB cable and an OTG adapter (sold separately) for digital recording. Monitoring is supported via the OUTPUT or PHONES jacks.

Operating Modes

• PRESET Mode: The screen displays 'P' and the preset number. Use footswitches A/B/C/D to switch presets. Press A+B or C+D to navigate preset groups. To save, press BANK +/- to choose a group, then press and hold any footswitch (A/B/C/D).
• LIVE Mode: The screen displays 'L' and the preset number. Each footswitch independently controls a specific module. To save settings, edit parameters and press and hold any footswitch.

Effects Modules

The FG200 includes seven effects modules: GATE, BOOST, AMP, CAB, MOD, DELAY, and REVERB. Use the module knob to select effects and adjust parameters. The screen provides precise values (1-100) for adjustments.

Additional Functions

• Drum Machine: Press and hold footswitches B+C to enter. Use A/B to switch drum types, C to set BPM, and D to toggle on/off.
• Tuner: Press and hold footswitches A+B to activate. The screen indicates pitch status (Flat, Sharp, In Tune).
• Bluetooth Playback: Use the Flamma app to enable Bluetooth. The screen indicator flashes during pairing and remains solid when connected.
• USB OTG Recording: Use the USB-C port for digital recording to mobile devices.

Technical Specifications

• Input: 6.35mm, 2MΩ
• Output: 6.35mm, 100Ω
• Headphone Output: 3.5mm, 32Ω
• Battery: 2000mAh (Up to 6 hours life)
• Charging: DC 5V/2A (USB-C to USB-A cables only)
• Dimensions: 311mm x 67.5mm x 49.7mm
• Weight: 578g
