User Manual for FLEX CS 68 18-EC Cordless Circular Saw
Quick guide and user manual for the FLEX CS 68 18-EC cordless circular saw. Includes setup, blade installation, cutting adjustments, safety warnings, and maintenance.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential instructions for the safe and efficient operation of the FLEX CS 68 18-EC cordless circular saw. Always read the safety instructions before use. Ensure the battery is charged and the blade is correctly installed before starting any work.
Overview
The saw features a main handle, auxiliary handle, depth and angle adjustment levers, a lower guard, and a dust extraction adapter. Refer to the diagram on page 3 for a complete list of components.
Setup and Operation
Battery Installation
Insert the charged battery into the tool until it clicks into place. To remove, press the release button and pull the battery out.
Installing the Blade
Warning: Use only 190mm saw blades rated for 5800/min (RPM) or greater. Use protective gloves when handling the blade.
- Remove the blade wrench from its storage area.
- Press the shaft-lock button and use the wrench to turn the blade until the shaft-lock engages.
- Turn the wrench counterclockwise to remove the blade stud and outer washer.
- Retract the lower guard, slide the blade through the foot slot, and mount it against the inner washer.
- Reinstall the outer washer, tighten the stud by hand, and then tighten an additional 1/8 turn (45°) with the wrench.
Adjustments
- Cutting Depth: Loosen the depth-adjustment lever, set the desired depth using the scale, and tighten the lever. Ensure no more than one tooth length extends below the material.

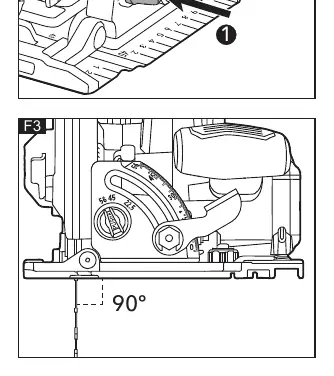

- Cutting Angle: Use the bevel-preset knob for 22.5°, 45°, or 56° settings, or the bevel-adjustment lever for custom angles.
Cutting Techniques
Always hold the saw firmly with both hands. For plunge cuts, set the bevel to zero, align the guide notch, and gradually lower the saw into the material using the front of the foot as a hinge point.
Maintenance and Care
Regularly clean the tool and ventilation slots with dry compressed air. Repairs must be performed by an authorized service center. Dispose of the tool and batteries according to local environmental regulations.
Manufacturer information
FLEX
Practical help
Common problems
Saw blade binds or kicks back
Ensure the blade is sharp, the workpiece is properly supported, and the cutting depth is correctly set. Do not force the saw.
LED light flashes rapidly
The tool or battery is overloaded or too hot. Allow the tool to cool down.
LED light flashes slowly
Battery charge is low. Recharge the battery pack.
Before use
- Check that all parts are present and undamaged.
- Charge the battery fully.
- Ensure the blade is sharp and correctly installed.
- Check that the lower guard moves freely and closes instantly.
- Ensure the workpiece is securely supported.
Specs in practice
- No-load speed
- Up to 5800 /min (RPM).
- Blade diameter
- 190 mm.
- Depth of cut at 90°
- 68 mm.
- Depth of cut at 45°
- 50.2 mm.
Images and diagrams
- Figure A: Overview of all components.

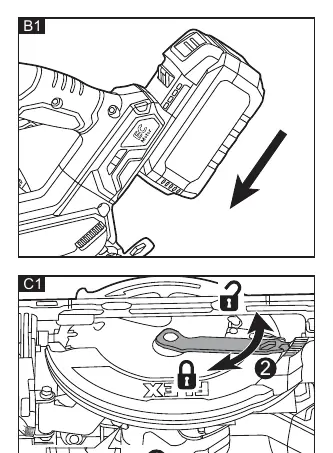

- Figure B: Battery insertion and removal.

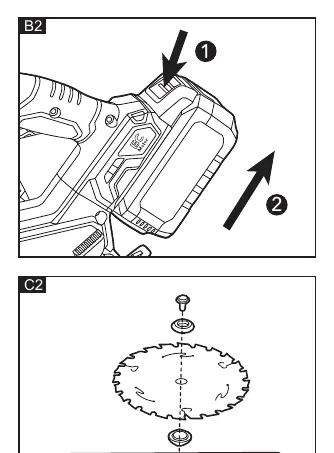

- Figure C: Blade installation procedure.
- Figure D: Dust extraction setup.

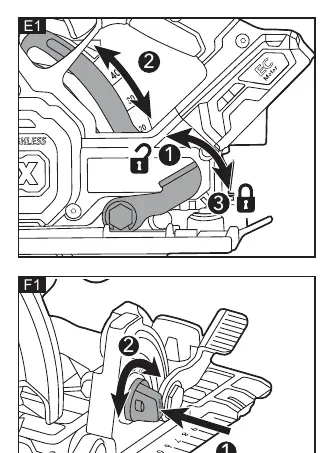

- Figure E: Depth adjustment.
Model compatibility
- Use only 190mm saw blades rated 5800/min (RPM) or greater.
- Not recommended to use 18V 2.5Ah battery pack for best performance.
