User Manual for FLEX CSM 57 18-EC Metal Circular Saw
Quick guide for the FLEX CSM 57 18-EC battery-powered metal circular saw. Includes setup, blade installation, cutting procedures, safety warnings, and maintenance.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential instructions for the safe and efficient operation of the FLEX CSM 57 18-EC metal circular saw. Always read the general safety instructions provided in the separate booklet (leaflet no. 315915) before use. This tool is designed for commercial use in industry and trade for cutting metal materials and is not suitable for wood or stone cutting wheels.
Overview

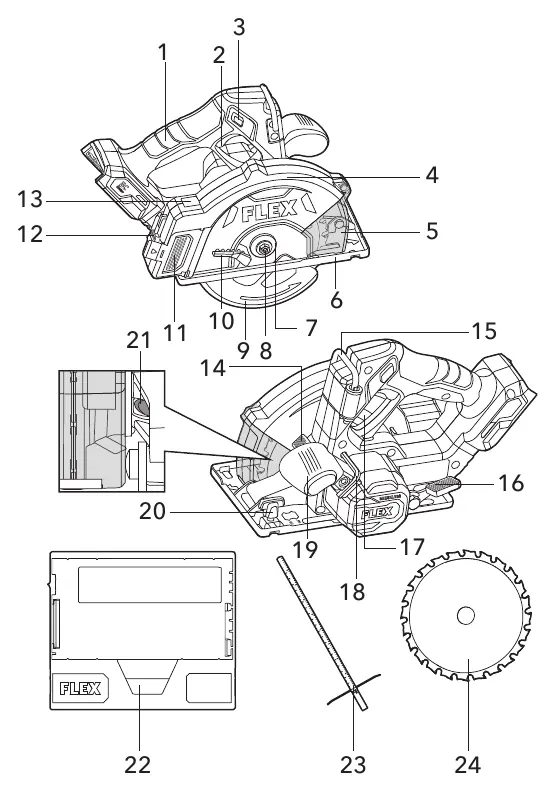

The saw features a main handle, trigger switch, lock-off button, upper and lower guards, base plate, chip box, depth adjustment lever, and rafter hook. Refer to Figure A for the complete component list.
Operation
Battery Installation
Insert the charged battery into the tool until it clicks into place. To remove, press the release button and pull the battery out.
Blade Installation
Use only 136-150 mm metal saw blades rated for 4500/min (RPM) or greater. Use the hex key (18) to operate the shaft-lock button (14) and blade bolt (8). Ensure the blade teeth and arrow point in the same direction as the arrow on the lower guard.
Adjusting Cutting Depth
Loosen the depth-adjustment lever (16), align the indicator on the depth scale (17) with the desired depth, and tighten the lever. The blade should extend about 3 mm below the material being cut.
Rip Fence and Track Adaptor
Use the rip fence (23) for accurate parallel cuts. The track adaptor (22) allows the use of a track (not supplied) for precision straight-line cutting.
Switching On and Off
Depress the lock-off button (3) and squeeze the trigger switch (2) to start. Release the trigger switch to stop.
Maintenance and Care
Always remove the battery before performing any work on the tool. Regularly clean the tool and ventilation slots using dry compressed air. Repairs must be carried out by an authorized customer service center.
Manufacturer information
FLEX
Practical help
Common problems
Saw binds or stalls
Release the trigger switch immediately, hold the saw motionless in the workpiece until the blade comes to a complete stop, and investigate the cause.
LED light flashes rapidly
The tool or battery is overloaded or too hot. Let the tool rest or place the tool and battery separately under airflow for cooling.
LED light flashes slowly
The battery charge is low. Recharge the battery.
Before use
- Unpack the tool and accessories
- Check for missing or damaged parts
- Ensure the battery is fully charged
- Wear eye protection
- Check the lower guard for free movement
Specs in practice
- Rated voltage
- 18 Vdc
- No-load speed
- 4500 /min
- Blade diameter
- 136-150 mm
- Depth of cut at 90°
- 57 mm
Images and diagrams
- A: Overview of product features
- B1-B2: Battery insertion and removal
- C1-C2: Blade installation procedure
- D1-D2: Chip box operation
- E: Depth adjustment
Model compatibility
- Use only 136-150 mm metal saw blades rated 4500/min or greater.
- Not designed for use with wood or stone cut-off wheels.
