FMS 1:6 Jimny LJ1 RC Crawler Instruction Manual
Official instruction manual for the FMS 1:6 scale Jimny LJ1 RC crawler, covering transmitter setup, vehicle operation, maintenance, and technical specifications.
Table of contents
Product Overview
The FMS 1:6 scale Jimny LJ1 is an officially licensed RC crawler that captures the legendary spirit of the original off-road vehicle. It features a robust metal beam, a non-load-bearing chassis, and realistic front and rear leaf spring suspension. The interior is highly detailed, featuring adjustable windshields, linked steering, and soft-rubber-wrapped seats that can be collapsed to accommodate 1:6 scale figures. The vehicle is powered by an integrated system under the hinged hood, housing the motor, ESC, receiver, and battery for easy access and maintenance.
Transmitter and Operation
The vehicle is controlled by the FS-G4P 4-channel transmitter, which utilizes 2.4GHz AFHDS technology. Before operation, ensure the transmitter is powered on first, followed by the receiver. The transmitter includes various functions such as channel reversing, trim adjustments, and servo travel (D/R) settings. A beginner mode is available, which limits the throttle to 50% for new users. The system also supports failsafe settings to protect the vehicle in case of signal loss.
Maintenance and Safety
Proper maintenance is essential for the longevity of your RC crawler. Always check the gear mesh between the pinion and spur gears if components are replaced to prevent premature wear. When charging LiPo batteries, always use a LiPo-safe bag on a non-flammable surface and never charge them while installed in the vehicle. If the vehicle is not in use for an extended period, disconnect and remove the battery to prevent leakage. Always store batteries in a cool, dry place and inspect them for damage before use.
Troubleshooting
If the motor fails to start, check all battery connections and ensure the ESC is receiving power. If the red LED on the ESC blinks, the throttle signal may be abnormal; try resetting the throttle trim to neutral. For issues where the vehicle runs in reverse, swap the motor wire connections or reverse the throttle channel on the transmitter. If the vehicle stops suddenly, it may have triggered low-voltage or overheat protection; allow the ESC to cool down or replace the battery pack.
Manufacturer information
FMS Model
Practical help
Common problems
Motor does not work, no sound, LED off
Check battery wire connections or replace defective connectors/switch.
Motor does not work, red LED blinks
Check throttle wire connection or set throttle trim to neutral.
Car runs backward when giving forward throttle
Swap two motor wire connections or reverse the throttle channel.
Car cannot go backward
Check jumper position or set throttle trim to neutral.
Motor stops suddenly during operation
Check for low-voltage or overheat protection; cool down ESC or replace battery.
Before use
- Ensure transmitter batteries are fully charged.
- Check that the throttle is at the lowest position.
- Ensure all transmitter switches are in the up position.
- Verify that the receiver is connected to power.
- Confirm the battery is securely installed.
- Check that the gear mesh is not too tight.
- Ensure the transmitter is turned on before the receiver.
Specs in practice
- Ground clearance
- 50mm
- Approach/Departure angle
- 41° / 48°
Images and diagrams

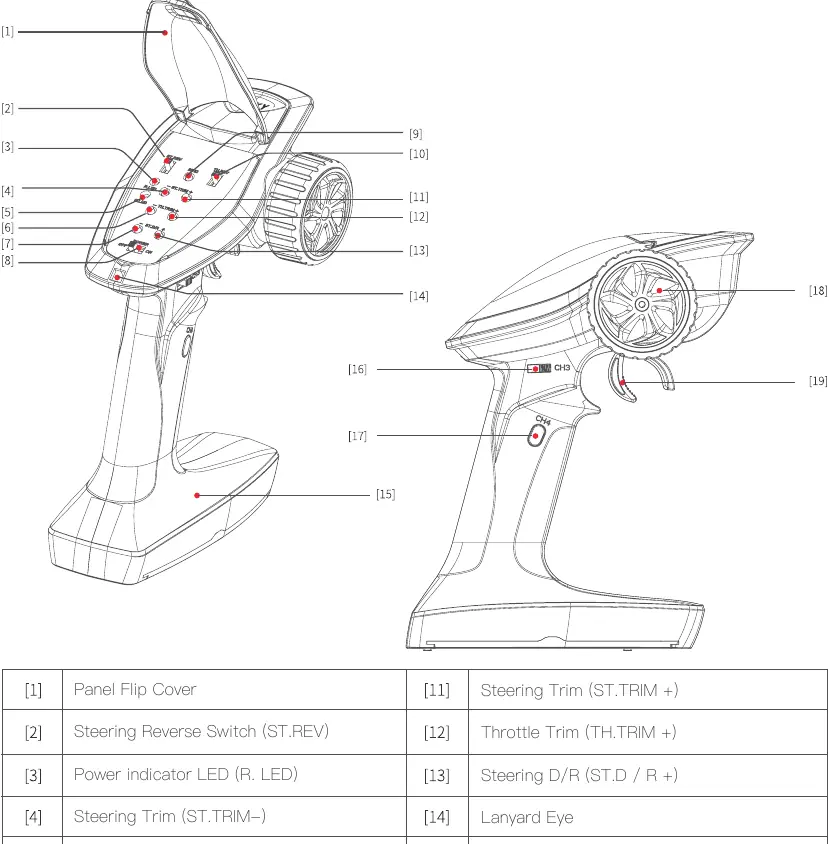

- The transmitter features a flip cover for trim and D/R adjustments.
- The throttle trigger controls forward and backward movement.
- The steering wheel controls the front axle steering.
- The ESC wiring diagram shows connections for battery, motor, and receiver.
- The assembly diagrams illustrate the installation of mirrors, top bow, and body components.
Model compatibility
- Compatible with 2-3S LiPo or 5-9 cell NiMH batteries.
- ESC supports 540 or 550 size motors.
- Transmitter uses 4 x AA batteries.
- Designed for 1:6 scale RC enthusiasts.
