User Manual for Focal IC TOY 165, IS TOY 165, IS TOY 690 & IS TOY 165 TWU Car Speakers
Quick guide for Focal IC TOY 165, IS TOY 165, IS TOY 690, and IS TOY 165 TWU car speakers. Includes installation tips, technical specifications, safety warnings, and running-in instructions.
Quick answers from the manual
Quick answer
- These speakers are designed for specific Toyota, Lexus, and Subaru vehicles. Installation requires checking vehicle compatibility online and following the provided mounting steps. p. 14, 15, 17
Key actions
- Check vehicle compatibility p. 3, 14, 15, 17
- Perform running-in period p. 9
Problems and fixes
Speaker does not fit
Check available space in the vehicle before cutting.
p. 9Maintenance and reset
- Clean the speaker from debris and metallic particles before mounting. p. 9
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Nominal power | 60W RMS | Continuous power handling | p. 7, 16, 17, 18 |
| Nominal impedance | 4 Ohm | Speaker impedance | p. 7, 17, 18 |
Where to find it in the PDF

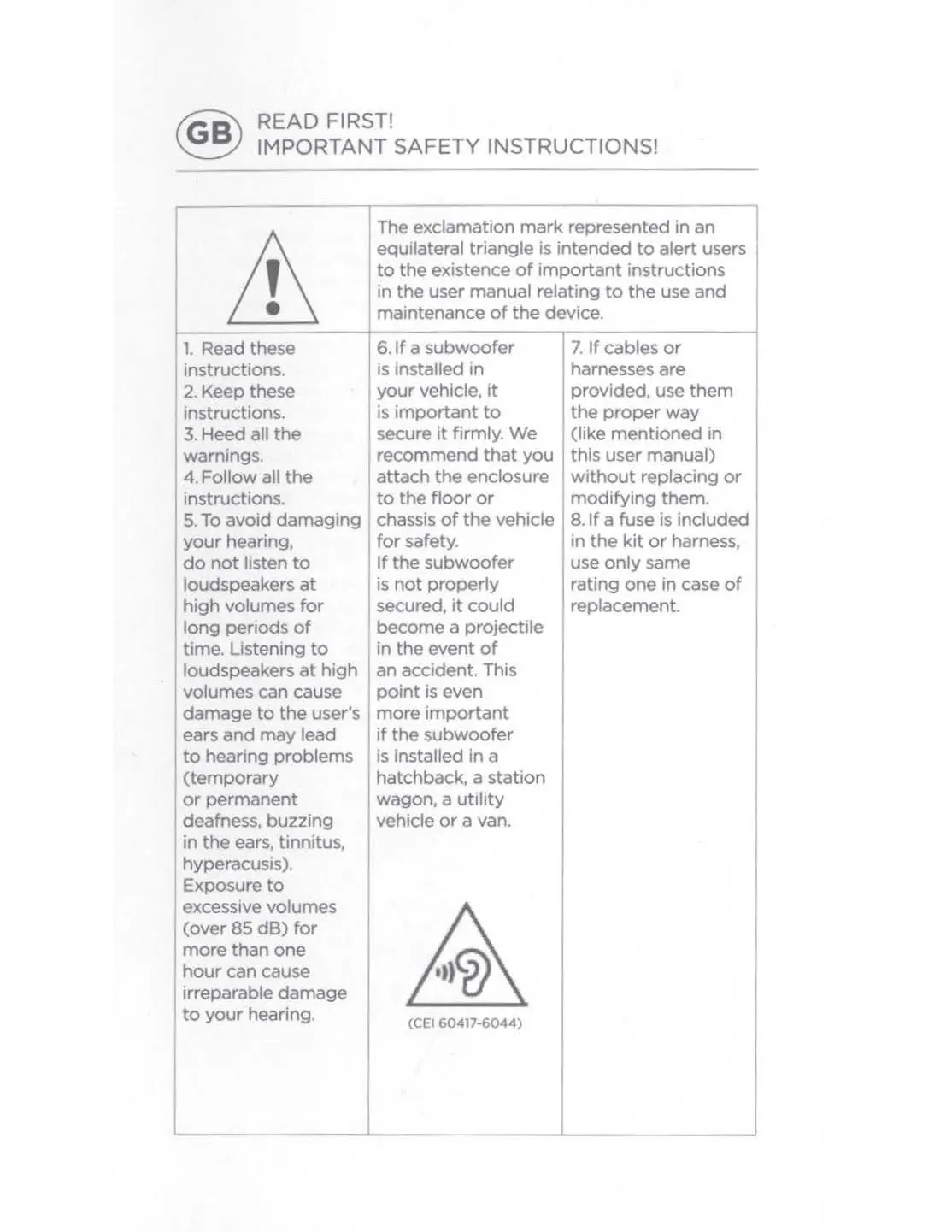

- Safety Instructions p. 2
- Parts List p. 5
- Tweeter Installation p. 6
- Specifications p. 7, 18, 19
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation and usage guidelines for the Focal Inside speaker kits designed for Toyota, Lexus, and Subaru vehicles. Before beginning, it is essential to verify your vehicle's compatibility online at www.focal-inside.com. The manual covers safety instructions, installation procedures, technical specifications, and maintenance recommendations.
Important recommendations
Before attempting any installation, check the available space in your vehicle to ensure the speakers will fit correctly. In the case of assembly in the original location, verify there is sufficient space between the speaker and the protection grille. Ensure the speaker is clean from debris and metallic particles, especially after drilling, before mounting.
Running-in period
To ensure the complex mechanical elements of your speakers work in harmony, a running-in period is required. Once the system is installed, run the drive units with a medium volume setting using music that contains a full bandwidth of frequencies (sub-bass through treble). This period should last for a few weeks to allow the speakers to reach their full potential.
Installation
The installation process varies by model. Refer to the parts list provided in the manual to identify the correct components (A-F) for your specific kit (IC TOY 165, IS TOY 165, IS TOY 690, or IS TOY 165 TWU). For the TWU tweeter, follow the specific fitting steps shown in the manual, which involve unlocking the housing and connecting the wiring.
Technical specifications
The speakers feature Polyglass cones and inverted dome tweeters. Nominal power for most models is 60W RMS, with varying frequency responses and crossover configurations depending on the specific kit. Detailed parameters for each model are provided in the technical sheets section of the manual.
Warranty and disposal
Focal loudspeakers are covered by the official distributor's warranty in your country. Please register your product online at www.focal.com/warranty to validate your coverage. When disposing of the product, do not discard it with household waste; use the appropriate return and collection systems available in your region to ensure responsible recycling.
Official resources from the manual
Manufacturer information
Focal
Practical help
Common problems
Speaker does not fit in the vehicle location
Check available space in the vehicle before cutting; verify compatibility online at www.focal-inside.com.
Distorted sound or poor performance
Ensure the speaker is clean from debris and metallic particles, especially after drilling, before mounting.
Before use

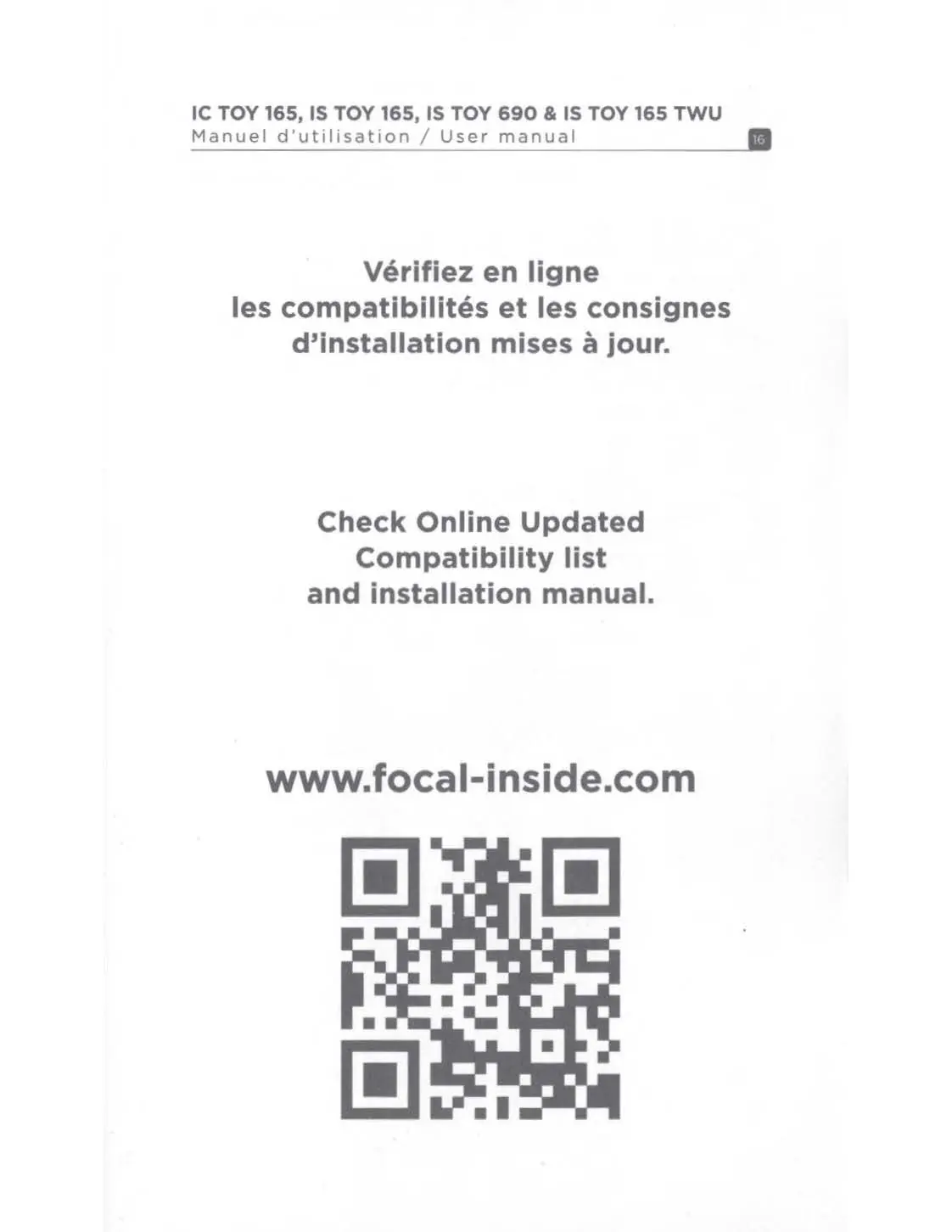

- Check vehicle compatibility online at www.focal-inside.com
- Verify available space in the vehicle before installation
- Ensure the speaker is clean from debris and metallic particles
- Follow the running-in period for optimal performance
Specs in practice
- Nominal power
- Continuous power handling (RMS) for daily use.
- Frequency response
- The range of frequencies the speaker can reproduce.
Images and diagrams

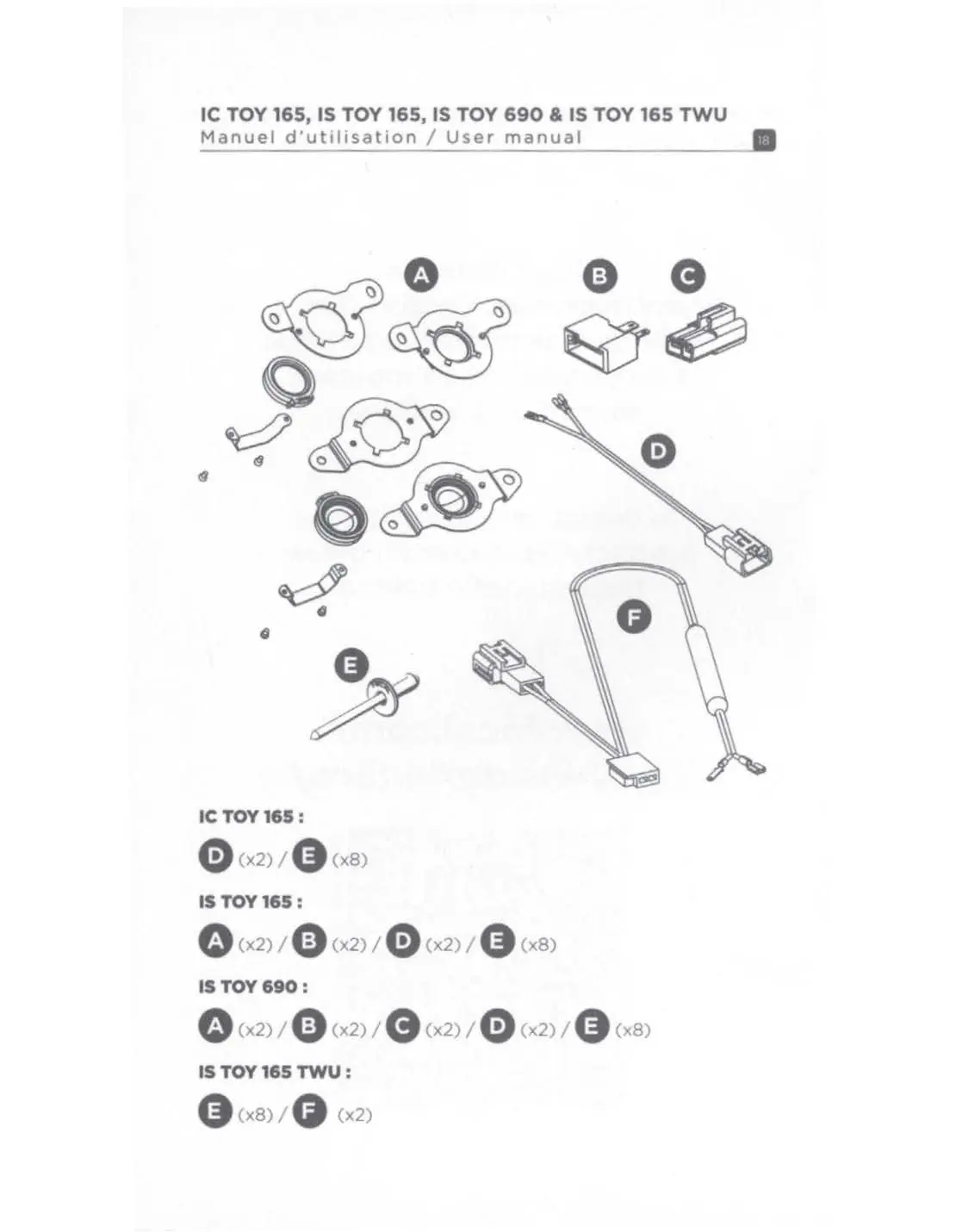

- Parts list shows components A-F for different models

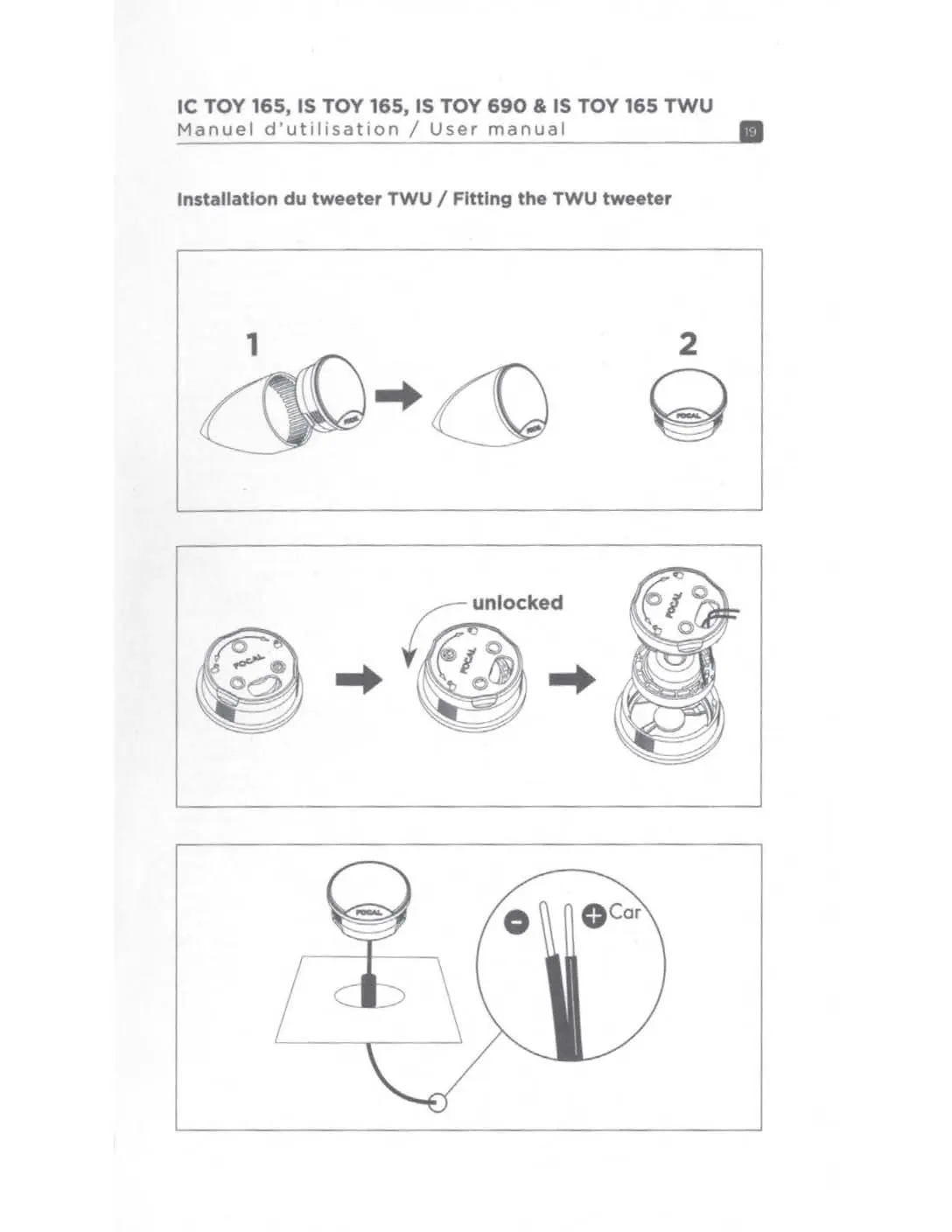

- Tweeter installation steps show unlocking and mounting process
Model compatibility
- Compatible with specific Toyota, Lexus, and Subaru vehicles
- Check online compatibility list before installation
