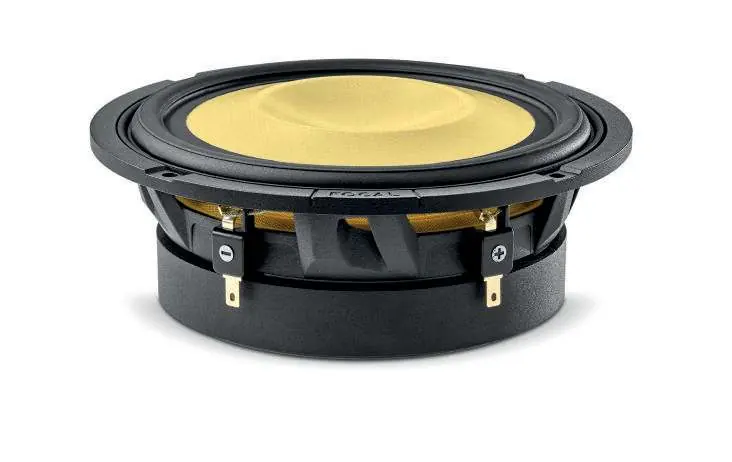

User Manual for Focal K2 Power M 6.5 KM Component Woofer
Quick guide for the Focal K2 Power M 6.5 KM component woofer. Includes installation steps, wiring diagrams, active filter frequency settings, and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

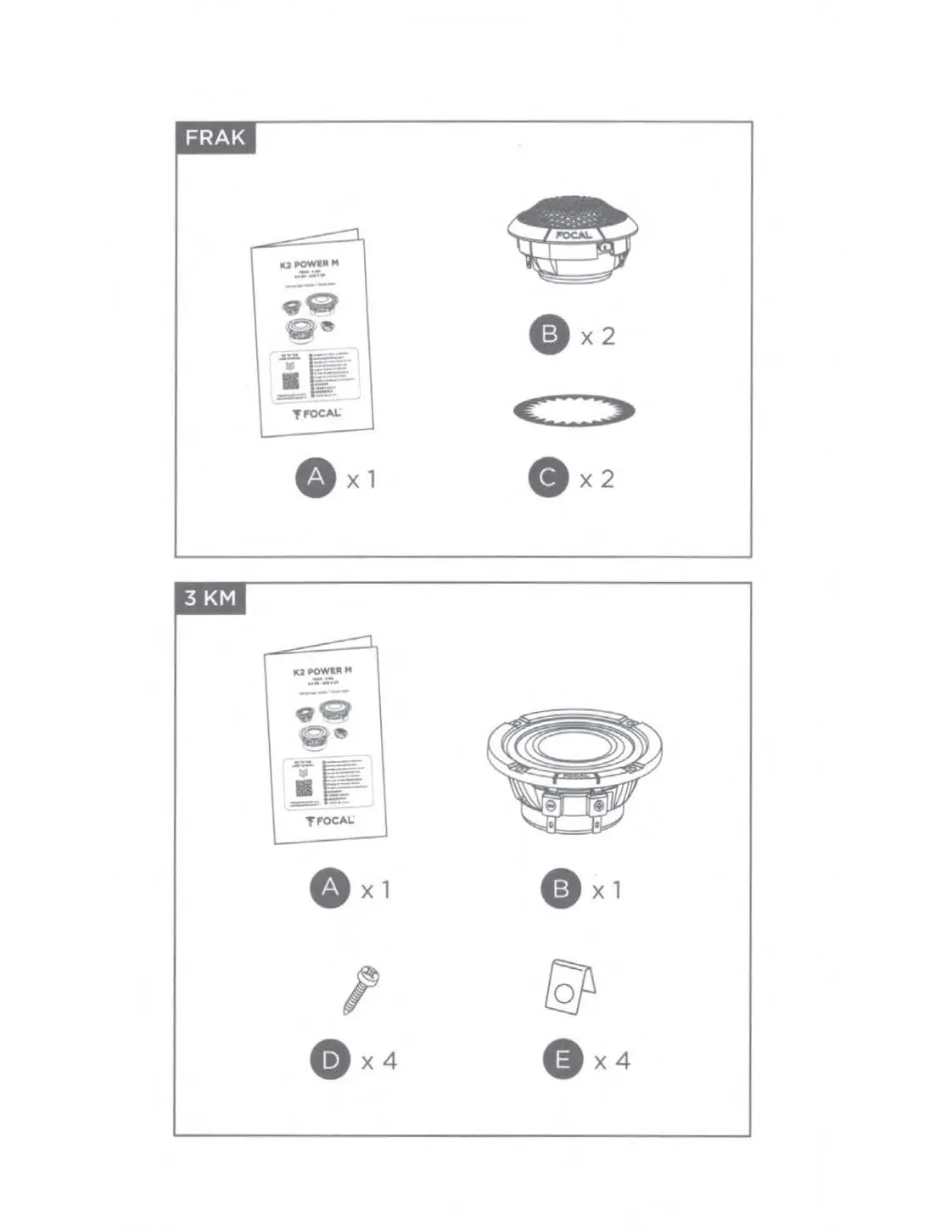

This document provides installation and configuration guidelines for the Focal K2 Power M series, specifically the 6.5 KM component woofer. It covers component identification, mounting procedures, wiring, and recommended active filter settings for optimal performance in an active audio system.
Installation
The 6.5 KM woofer is designed for custom automotive installations. Ensure the mounting depth of 54mm is available in your chosen location. The speaker can be mounted with or without the provided grille. Follow the mechanical drawing provided in the manual to ensure proper fitment and secure the speaker using the provided screws.
Wiring
Connect the speaker to your amplifier using the positive (+) and negative (-) terminals. Ensure the wiring polarity is correct to maintain phase alignment. The system is designed for active setups, meaning each driver should be connected to a dedicated amplifier channel controlled by a DSP (Digital Signal Processor) to manage the crossover frequencies.

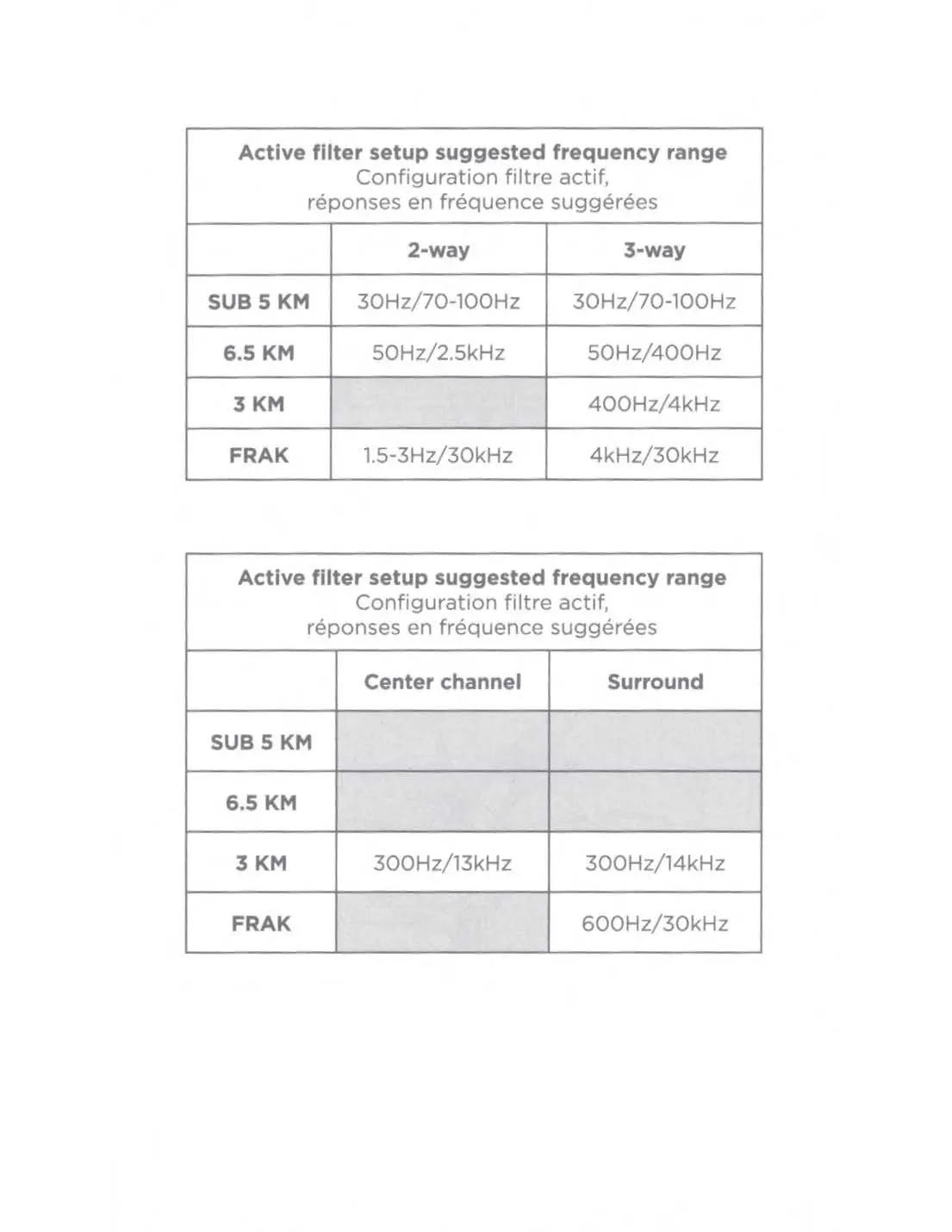

Active filter setup
Properly configuring the active filter is critical for sound quality and speaker longevity. The following frequency ranges are suggested for the 6.5 KM model:
- 2-way system: 50Hz to 2.5kHz
- 3-way system: 50Hz to 400Hz
Ensure your DSP is configured within these ranges to prevent damage to the speaker and ensure optimal frequency reproduction.
Technical specifications
- Nominal power: 120W RMS
- Maximum power: 240W
- Frequency response: 50Hz - 5kHz
- Impedance: 4 Ohm
- Sensitivity: 93dB
- Mounting depth: 54mm
- Voice-coil diameter: 60mm
Manufacturer information
Focal
Practical help
Common problems
Distorted sound or speaker damage
Ensure the active filter settings on your DSP are within the recommended frequency ranges (50Hz-2.5kHz for 2-way or 50Hz-400Hz for 3-way).
Incorrect sound stage or phase issues
Verify that the positive (+) and negative (-) wiring from the amplifier matches the speaker terminals correctly.
Before use
- Verify the amplifier power matches the speaker's nominal power (120W RMS).
- Ensure the installation location has sufficient depth (54mm).
- Check that the active filter frequency ranges are set correctly for your specific system configuration (2-way or 3-way).
- Confirm the wiring polarity (+/-) matches the amplifier output.
- Ensure the speaker is securely mounted using the provided hardware.
Specs in practice
- Nominal power
- 120W RMS - The continuous power the speaker can handle without damage.
- Frequency response
- 50Hz-5kHz - The range of frequencies the speaker is designed to reproduce.
Images and diagrams

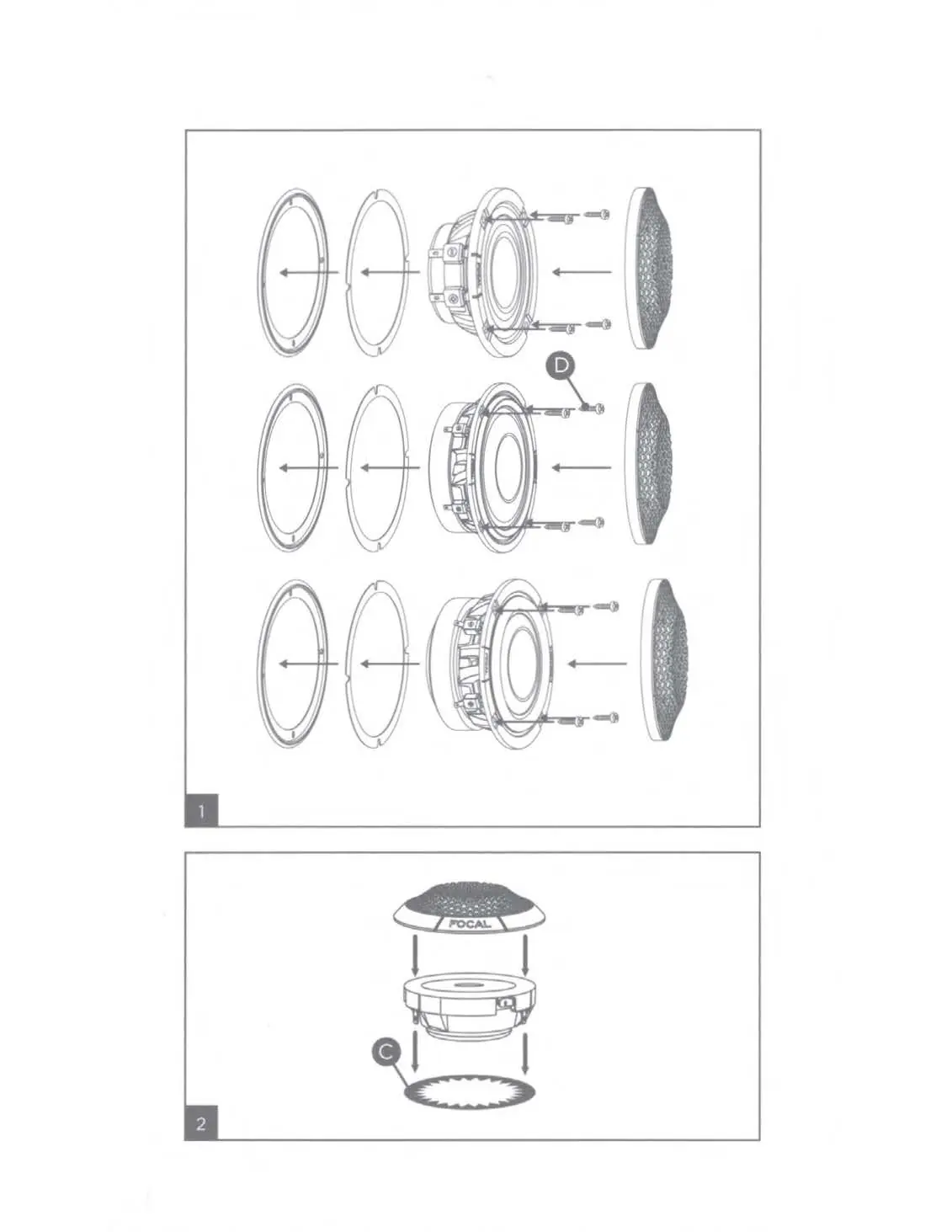

- Page 4 illustrates the assembly of the speaker with the grille.

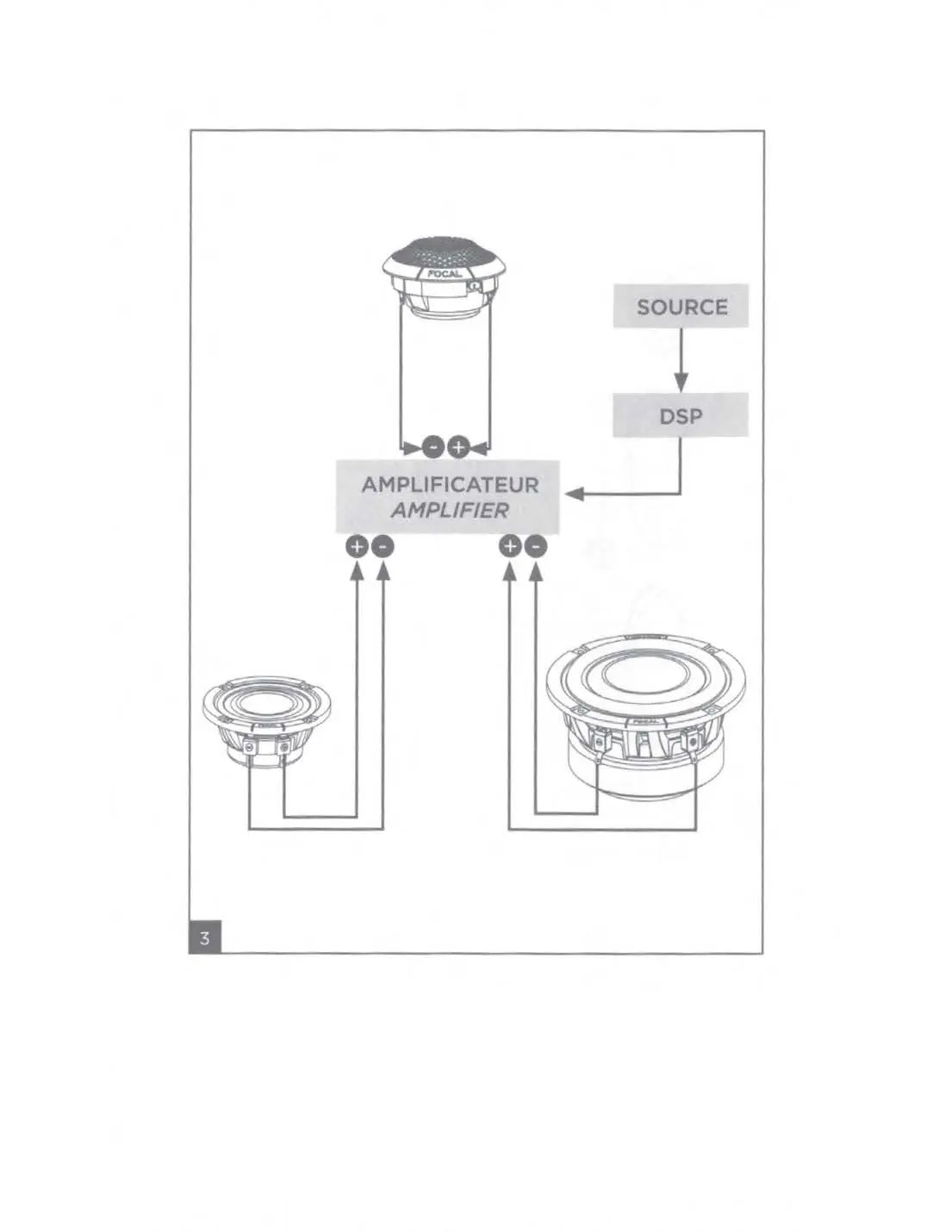

- Page 5 shows the wiring connection between the source, DSP, amplifier, and speakers.

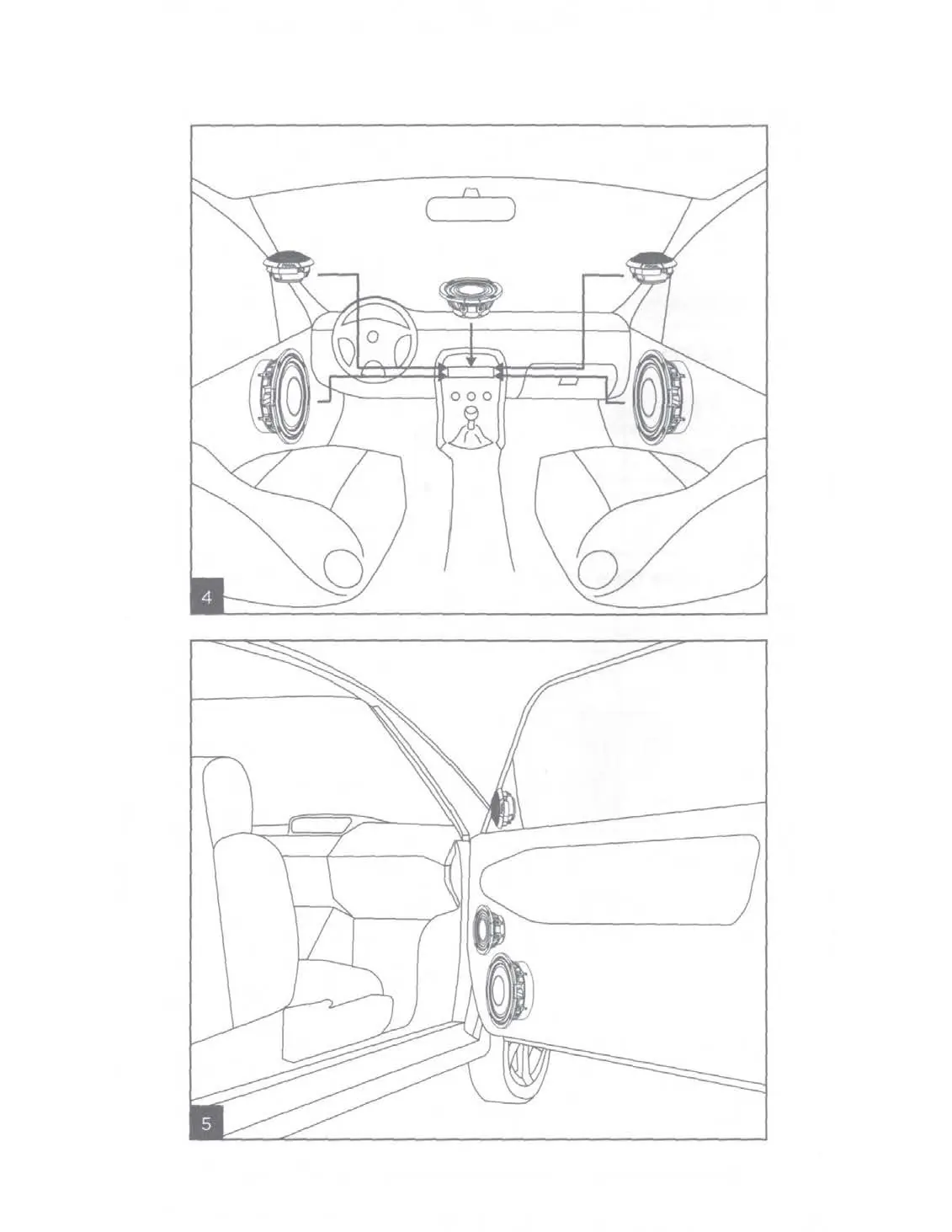

- Page 7 displays typical installation locations in a vehicle.
- Page 12 provides a mechanical drawing with dimensions for mounting.
Model compatibility
- Designed specifically for active audio systems.
- Requires an external amplifier and DSP for optimal performance.
- Specific frequency ranges apply to 2-way and 3-way configurations.
