Installation Guide for Garmin GPSMAP 15X3 Marine Chartplotter

Quick guide from the manual

This document provides essential installation instructions for the Garmin GPSMAP 15X3. Before beginning, ensure you have the necessary tools: a drill with a 14 mm (9/16 in.) bit, a jigsaw or rotary tool, a file, sandpaper, and marine sealant. Always disconnect the vessel's power supply before starting the installation to prevent injury or damage. Ensure the mounting location is flat, vertical, and has sufficient clearance behind the surface for cables and brackets.

Mounting Considerations

The device can be mounted using either a flush-mount or bail-mount method. When flush-mounting, the surface curvature must not exceed 0.5 mm (1/64 in.). Ensure the location allows access to the back of the surface for securing brackets and connecting cables. The device should not be installed closer to a magnetic compass than the compass-safe distance specified in the technical data.

Flush Mounting the Device

To flush mount the device, follow these steps:

1. Trim the included template and secure it to the desired location.
2. Drill holes inside the corners of the template's solid line.
3. Cut the mounting surface along the inside line using a jigsaw or rotary tool.
4. Place the device in the cutout to test the fit, refining with a file if necessary.
5. Install the foam gasket on the back of the device.
6. Apply marine sealant along the inside of the bezel.
7. Secure the device using the included brackets, knobs, and thumbscrews.
8. Tighten the thumbscrews by hand only, then lock them with the wingnuts.

Bail Mounting the Device

If you prefer a bail mount, you can purchase an optional bail-mount bracket. Use the bracket as a template to mark and drill pilot holes. Secure the bracket to the surface, install the bail-mount knobs on the sides of the device, and place the device into the bracket, tightening the knobs to secure it.

Wiring and Connections

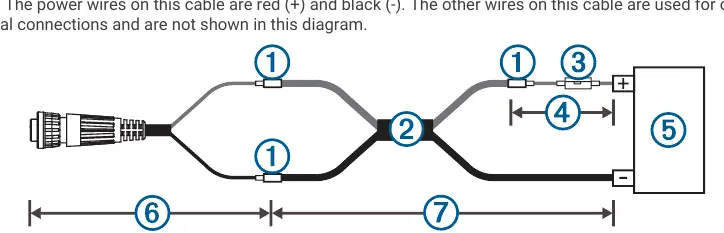

The device features several ports on the rear, including Power, NMEA 0183, Sonar, USB, J1939, NMEA 2000, and Garmin Marine Network. When connecting the power cable, do not remove the in-line fuse holder. If extending power wires, use the appropriate wire gauge for the length of the extension. Always cover unused connectors with the attached weather caps to prevent corrosion.

Network Considerations

The device supports NMEA 2000 and Garmin Marine Network connections. When connecting to an existing NMEA 2000 network, ensure only one power cable is used. If connecting third-party devices to the Garmin Marine Network, a PoE Isolation Coupler is required to prevent damage. The J1939 port is used for engine network connections; consult the engine manufacturer's documentation for specific requirements.

Specifications

The device operates on 10 to 32 Vdc and has an IPX7 water rating. The display resolution is 1920 x 720 pixels. The compass-safe distance is 50 cm (19.7 in.). For detailed PGN information and NMEA 0183 sentences, refer to the full technical reference sections in the manual.
