Assembly Instructions for GE 22043LO Pre-Lit Christmas Tree
Quick guide for assembling and maintaining your GE 22043LO Pre-Lit Christmas Tree with Color Choice LED technology. Includes setup steps, lighting mode list, and troubleshooting tips.
Quick answers from the manual
Quick answer
- The GE 22043LO is a pre-lit Christmas tree that requires assembly of two sections and branch shaping. It operates on 120V and features 9 selectable lighting modes. p. 1
Key actions
- Assemble the tree p. 1
- Shape the branches p. 1
First start
- Remove red protective cap from pole, insert into base, connect sections, and shape branches. p. 1
Show 4 more answers Show less
Problems and fixes
Tree section not illuminating
Check for cut wires, loose bulbs, or disconnected plugs between sections.
p. 1Maintenance and reset
- Disconnect from power before cleaning or maintenance. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Lighting Modes | 9 | Includes Steady White, Multi, SLO-GLO, and Flashing options. | p. 1 |
Where to find it in the PDF
- Assembly and Operation p. 1
Table of contents
Quick guide from the manual
This document provides assembly and operation instructions for the GE 22043LO Pre-Lit Christmas Tree. The product is designed for indoor use only (120V). Please retain the shipping carton for future storage.
Assembly Instructions
- Remove and unwrap all parts. Set the base in a clear area on a flat surface.
- Remove the red-colored plastic protective cap from the bottom of the pole.
- Place the pole into the planter base.
- Insert the top section into the bottom section. Ensure the cord does not enter the opening to avoid damaging the wires.

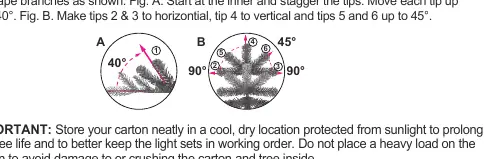

Shaping the Branches
Proper shaping is essential for the tree's appearance:
- Start at the inner branches and stagger the tips.
- Move each tip up to 40 degrees.
- Position tips 2 and 3 horizontally (90 degrees).
- Position tip 4 vertically.
- Position tips 5 and 6 at a 45-degree angle.
Lighting Modes
The tree features Color Choice LED technology with the following modes:
- 1. Steady White
- 2. Steady Multi
- 3. SLO-GLO
- 4. White SLO-GLO
- 5. Multi SLO-GLO
- 6. White Flashing
- 7. Multi Flashing
- 8. Change/Twinkle Flashing
- 9. Off (DC)
Troubleshooting
If a section of the tree does not illuminate:
- Check that section for cut or damaged wires.
- Ensure all electrical connections between tree sections are properly made.
- Check for loose or missing bulbs.
- Verify that all factory connections are secure.
Safety and Maintenance
Important: Disconnect the tree from the power source before performing any maintenance or cleaning. Do not use or install any additional Christmas lighting or ornamentation powered by a light bulb socket, as this may cause damage or personal injury and will void the limited warranty.
Practical help
Common problems
Tree section does not illuminate
Check for cut or damaged wires, loose or missing bulbs, and ensure all electrical connections between sections are secure.
Before use
- Ensure the base is on a flat, clear surface.
- Remove the red plastic protective cap from the pole bottom.
- Ensure the cord does not get pinched when inserting the top section.
- Verify the power source is 120V.
- Keep the shipping carton for future storage.
Show more Show less
Specs in practice
- Color Choice LED
- Technology allowing selection between 9 different lighting modes.
Images and diagrams
- The assembly diagram illustrates the 2-section structure of the 5ft tree.
- The schematic diagram shows the connection between the planter base and the control box.
Model compatibility
- For indoor use only.
- Do not add extra lighting or ornaments powered by a light bulb socket.
