Gear4music 15W Guitar Amp User Manual
Quick guide for the Gear4music 15W Guitar Amp. Learn how to use the control panel, adjust EQ settings, and understand technical specifications for models ES-52, LBL-10, and S15A.
Table of contents
Quick guide from the manual
This manual provides essential safety information and operating instructions for the Gear4music 15W Guitar Amp. Ensure you read the safety precautions before connecting the device to a power source.
Safety Information
- Do not open the cover: There are no user-serviceable parts inside. Refer servicing to qualified personnel.
- Placement: Avoid locations near heat sources (radiators), direct sunlight, excessive dust, or mechanical vibration.
- Moisture: Do not expose the product to dripping or splashing. Do not place liquid-filled objects (like vases) on the unit.
- Ventilation: Ensure adequate air circulation. Do not obstruct vents with items like newspapers, tablecloths, or curtains.
- Power: The appliance must be earthed. Ensure the mains outlet is easily accessible for quick disconnection.
Control Panel Functions

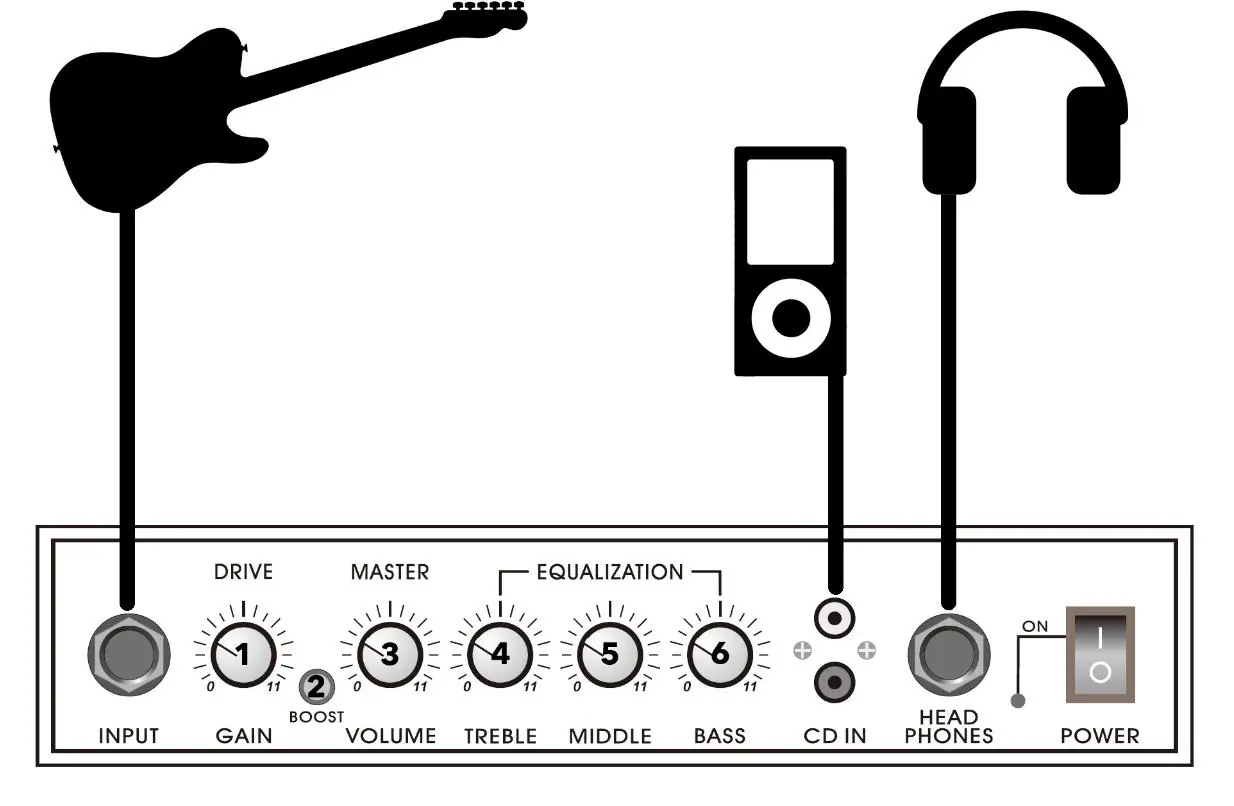

The control panel allows you to shape your sound and connect your instruments.
- 1. Gain/Drive: Adjusts the gain/drive level (ES-52 only).
- 2. Boost: Switches between clean (raised) and distortion (depressed) channels (ES-52 only).
- 3. Master Volume: Adjusts the overall output sound volume.
- 4. Treble (EQ): Cuts or boosts high frequencies (10KHz).
- 5. Middle (EQ): Cuts or boosts mid frequencies (440Hz).
- 6. Bass (EQ): Cuts or boosts low frequencies (100Hz).
- 7. Presence: Increases or decreases bass response (LBL-10 only).
Specifications
- Output Power: 15W Maximum Power at 4Ω
- Rated Voltage: 240V 50/60Hz
- Input Sensitivity: 6mV at 1KHz
- Input Impedance: 470KΩ
- Speaker: 6.5"
- Power Consumption: 19W
Customer Support
If you have any issues or questions about your product, please contact the Gear4music Customer Service Centre on 0330 365 4444 or [email protected].
Practical help
Before use
- Ensure the mains outlet is easily accessible.
- Check that the amplifier is placed in a well-ventilated area.
- Ensure the device is earthed.
- Keep away from heat sources, direct sunlight, and moisture.
- Do not place liquid-filled objects on the amplifier.
Specs in practice
- Output Power
- 15W Maximum Power at 4Ω
- Treble Control
- 24dB cut/boost at 10KHz
- Middle Control
- 5dB cut/boost at 440Hz
- Bass Control
- 12dB cut/boost at 100Hz
- Input Sensitivity
- 6mV at 1KHz
Images and diagrams
- 1: Gain/Drive - Adjusts gain level (ES-52 only).
- 2: Boost - Switches between clean and distortion (ES-52 only).
- 3: Master Volume - Controls overall output volume.
- 4-6: Equalization - Adjusts Treble, Middle, and Bass frequencies.
- 7: Presence - Adjusts bass response (LBL-10 only).
