The Harley Benton Mighty-15TH is a 15-watt tube amplifier head for electric guitars. Before operating, ensure the device is placed on a stable surface with adequate ventilation. Always connect the speaker cabinet to the appropriate output impedance before switching the power on. The amplifier features a switchable power mode (15W/7W) and an effects loop for external sound processors.
Safety instructions
This device contains high voltages. Never remove the housing covers. Ensure the power cable is in good condition and the mains voltage matches the device requirements. Do not block ventilation areas to prevent overheating. If the device is exposed to temperature fluctuations, allow it to reach room temperature before switching it on.
Features
- 15W tube amplifier head with switchable 7W power mode.
- Class A circuit.
- Controls: Gain, Bass, Middle, Treble, Volume.
- Effects loop for external processors.
- Boost switch with footswitch option.
- Speaker outputs for 8 and 16 Ohm impedance.
Installation and starting up
Unpack the unit and check for transportation damage. Create all connections while the device is switched off. Use high-quality, short cables to minimize signal loss. Ensure the speaker cabinet impedance matches the output jack used.
Connections and controls

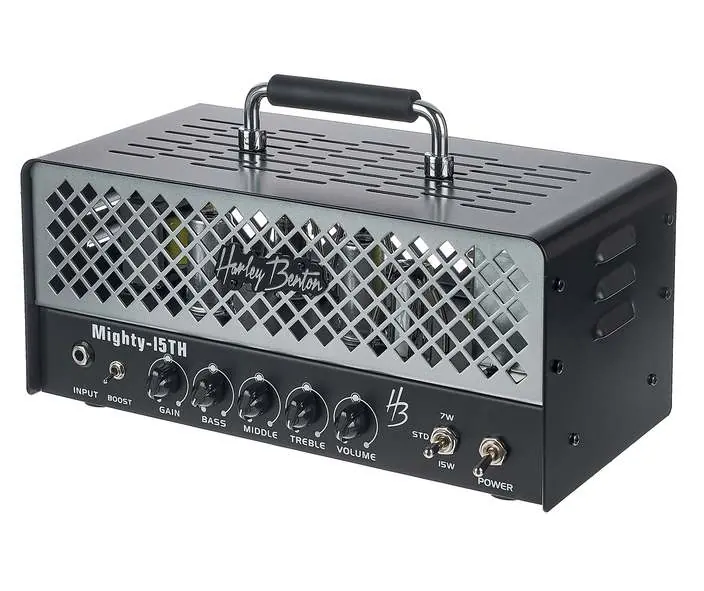

Front Panel: Includes the instrument input, boost switch, EQ controls (Gain, Bass, Middle, Treble), Volume, Power mode selector (STD/7W/15W), and the main Power switch.
Rear Panel: Features the mains power input with fuse holder, speaker outputs (1x16 Ohm, 1x8 Ohm, 2x16 Ohm), effects loop (Send/Return), and a footswitch connection for the boost function.
Technical specifications
- Tubes: 2x 12AX7 (preamp), 2x EL84 (power), 1x 6E2 (indicator).
- Output Power: Max 15W at 8 or 16 Ohm.
- Dimensions: 330 mm x 162 mm x 146 mm.
- Weight: 5.9 kg.
- Ambient Conditions: 0 °C to 40 °C, 20% to 80% relative humidity.
Cleaning
Clean the exterior regularly with a dry, soft cloth. For stubborn dirt, use a slightly dampened cloth. Never use solvents or alcohol, as these can damage the finish.
Protecting the environment
Dispose of packaging materials through recycling facilities. This product is subject to the WEEE directive; do not dispose of it with household waste. Use an approved waste disposal firm or local facility.
Practical help
Common problems
No sound output
Ensure the power switch is on, the volume is turned up, and the speaker cabinet is correctly connected to the appropriate output impedance.
Distorted or weak sound
Verify that the speaker cabinet impedance matches the output jack used (8 Ohm or 16 Ohm). Mismatched impedance can damage the power amp.
Excessive noise
Check all instrument and patch cables. Ensure the effects loop is not causing issues by bypassing it.
Before use
- Check for transportation damage
- Ensure the power outlet matches the device voltage
- Connect the speaker cabinet before turning on the amp
- Use high-quality shielded cables
- Ensure adequate ventilation around the unit
Specs in practice
- 8 Ohm / 16 Ohm
- Impedance settings for connecting speaker cabinets. Using the wrong output can damage the amplifier.
- Effects Loop
- Allows connection of external sound processors like compressors or delays between the preamp and power amp.
Images and diagrams

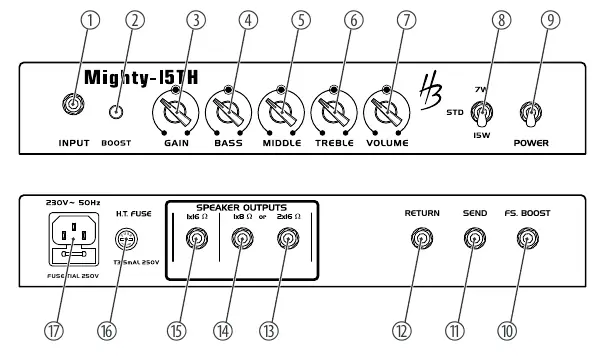

- Front panel features input, boost, gain, EQ controls, power mode switch, and power switch.
- Rear panel features power input, fuse, speaker outputs, and effects loop (send/return).
Model compatibility
- Requires a speaker cabinet with 8 or 16 Ohm impedance.
- Compatible with standard 1/4 inch instrument cables.
- Footswitch connection requires a standard 1/4 inch jack.
