Installation Guide for Golden Lighting 0307-FM10 Flush Mount
Step-by-step installation guide for the Golden Lighting 0307-FM10 flush mount fixture. Includes wiring diagrams, mounting instructions, and safety precautions for a secure setup.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides installation instructions for the Golden Lighting 0307-FM10 flush mount fixture. Important: All installation work should be performed by an accredited professional. Always shut off the power supply at the fuse or circuit breaker before beginning. Ensure you use only the specified bulbs and do not exceed the maximum recommended wattage.
Parts Identification
The fixture assembly consists of the following components:
- A: Mounting Screws
- B: Mounting Strap
- C: Nuts
- D: Junction Box Screws
- E: Ground Screw
- F: Canopy
- G: Deco Nuts
- H: Side Screws
- I: Glass Holder
- J: Glass Shade
Installation Steps
- Preparation: Remove the old fixture and mounting strap. Attach the mounting strap (B) to the junction box using screws (D). Ensure mounting screws (A) are attached to the strap (B) and secured with nuts (C).
- Wiring: Have an assistant support the fixture. Connect the fixture wires to the house supply wires:
- Hot: Smooth, black, or transparent with black inner thread.
- Neutral: Ribbed, white, or transparent with white inner thread.
- Ground: Copper, bare metal, green, or transparent with green inner thread.
Twist wire pairs together and secure with a wire connector. If no house ground wire exists, wrap the fixture ground wire around the ground screw (E) on the mounting strap.

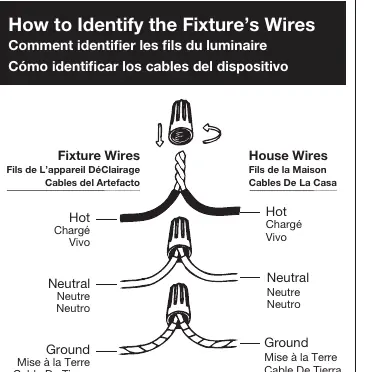

Wiring diagram showing connections for Hot, Neutral, and Ground wires. - Finishing: Lift the glass shade (J) to the glass holder (I) and secure it with side screws (H). Lift the canopy (F) over the mounting strap (B) and secure it with deco nuts (G) until snug against the ceiling. Install the light bulb (not provided) and restore power.
Lighting Placement Tips
For optimal lighting, consider the following placement guidelines:
- Kitchen Islands: Center a linear pendant over the island. If using multiple pendants, space them one for every 24 inches of island length. Fixtures should hang at least 30 inches above the countertop.
- Dining Tables: Fixtures should hang at least 30 inches above the table. Use a fixture that is 12 inches narrower than the width of the table.
- Open Areas: The bottom of the fixture should hang at least 7.5 feet from the floor. Ensure there is clearance for any opening doors.
Manufacturer information
Golden Lighting
Practical help
Common problems
Fixture is not flush against the ceiling
Adjust the deco nuts (G) on the mounting screws (A) to ensure the canopy (F) is pulled tight against the ceiling.
Glass shade is loose
Ensure the small side screws (H) are fully tightened into the glass holder (I).
Unsure of wire identification
Refer to the wiring diagram: Hot wires are smooth/black/transparent with black thread; Neutral wires are ribbed/white/transparent with white thread; Ground wires are copper/bare/green/transparent with green thread.
Before use
- Turn off power at the circuit breaker.
- Verify all parts (A-J) are present in the yellow bag.
- Ensure you have an assistant to support the fixture weight during wiring.
- Check that the junction box is secure.
- Confirm you have the correct light bulb (not included).
Specs in practice
- Neutral Wire
- Completes the circuit; identified by ribbed texture, white color, or transparent wire with white inner thread.
Images and diagrams
- The wiring diagram illustrates the correct connection of Hot, Neutral, and Ground wires from the house to the fixture.

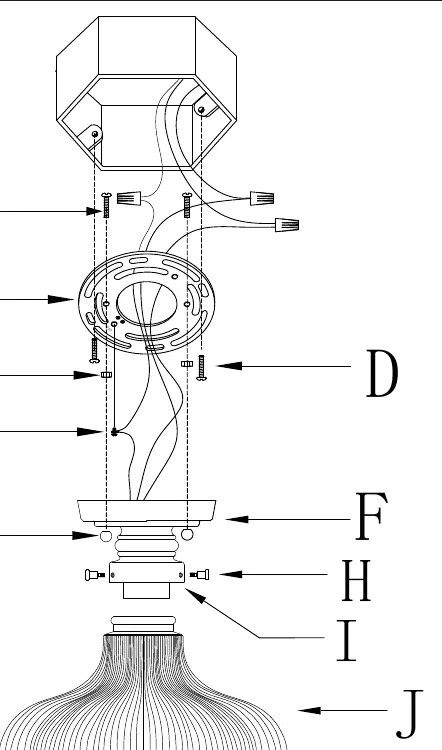

- The assembly diagram shows the vertical stacking order of the mounting strap, canopy, and glass shade components.
Model compatibility
- Requires professional installation.
- Do not exceed the maximum wattage specified for the bulb.
- Ensure the junction box is compatible with the mounting strap (B).
