Güde GRK Series Radial Mitre Saw User Manual
Quick guide for the Güde GRK series radial mitre saws. Includes assembly, operation, safety instructions, maintenance, and troubleshooting.
Table of contents
Quick guide from the manual
This manual provides essential information for the safe and efficient operation of the Güde GRK series radial mitre saws. Always read the full safety instructions before starting the machine.
Safety
Always wear safety goggles and ear protection. Do not wear gloves, loose clothing, or jewelry that could get caught in rotating parts. Secure workpieces using clamps or a vice. Never operate the saw in wet or rainy conditions.
Assembly
Place the saw on a stable, flat surface. For stationary use, bolt the machine to a workbench using the provided mounting holes. For model #55003, assemble the stand as illustrated in the manual.
Operation
Switch on the saw using the switch on the inner side of the handle. Allow the blade to reach maximum speed before beginning the cut. Use the locking levers to adjust for skew (13) and mitre (14) cuts. Always hold the workpiece firmly against the stop.
Blade Replacement
Ensure the machine is unplugged and the blade is at a complete standstill. Remove the cover by unscrewing the retaining screws. Lock the blade using the locking knob, then unscrew the blade bolt (note: it has a left-hand thread). Replace the blade, ensuring the teeth point in the direction of rotation.
Maintenance
Regularly clean the motor of sawdust and dust to ensure proper cooling. Lubricate the rotation axle and the protective cover lever occasionally with sewing machine oil if movement becomes stiff.
Troubleshooting
If the cut angle is incorrect, adjust the saw head position. If the motor fails to start, check the carbon brushes and the switch.
Practical help
Common problems
Cut angle is incorrect
Adjust the saw head position as described in the assembly and first start-up section.
Motor does not work
Check if carbon brushes are worn or if the switch is defective; consult a professional.
Before use
- Check for missing, bent, or damaged parts
- Ensure the saw blade is sharp and correctly installed
- Verify all safety guards are functional and properly adjusted
- Secure the workpiece with clamps
- Wear appropriate PPE (safety goggles, ear protection, dust mask)
Specs in practice
- Cutting Capacity
- Varies by model (e.g., 70x305mm at 90° for GRK 250/300)
Images and diagrams
- Fig 1: Overview of controls and components
- Fig 2, 3, 4: Blade replacement procedure

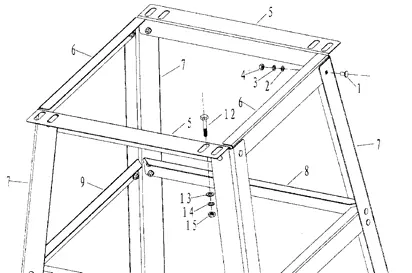

- Fig 7: Stand assembly for model #55003
Model compatibility
- Use only recommended saw blades
- Connect to a 230V circuit protected by a 16A fuse and RCD
