User Manual for HiKOKI CR 10DL Cordless Reciprocating Saw
Quick guide for the HiKOKI CR 10DL Cordless Reciprocating Saw. Includes safety instructions, operation, blade selection, charging, and maintenance.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides instructions for the HiKOKI CR 10DL Cordless Reciprocating Saw. It covers safety, operation, maintenance, and specifications.
Safety Warnings
Always wear eye protection and earplugs. Keep the work area clean and well-lit. Do not operate in explosive atmospheres. Keep children and bystanders away.
Charging
Before using the tool, charge the battery. Connect the charger to a power source. Insert the battery firmly until it touches the bottom of the charger. The pilot lamp indicates the charging status (e.g., solid red for charging, blinking red for complete).
Operation
Mounting and dismounting the blade: Ensure the switch is off and the battery is removed. Pull the back of the saw blade to check it is securely mounted. If the blade is broken, use the tip of another blade to remove it.
During use: Press the base firmly against the workpiece. Do not apply unreasonable force to the saw blade.
Maintenance and Inspection
Turn off the switch and remove the battery before maintenance. Regularly inspect the blade and mounting screws. Keep the motor clean and free from oil or water. Store in a cool, dry place.
Manufacturer information
HiKOKI
Practical help
Common problems
Motor stops during use
Battery is empty (charge it) or tool is overloaded (release switch, remove cause of overload).
Battery overheated
Stop using, let it cool down.
Blade not cutting efficiently
Blade is dull or damaged; replace it.
Lever movement is sluggish
Accumulated sawdust/chips; clean and lubricate blade holder area.
Before use
- Ensure switch is OFF
- Remove battery before adjustments
- Check blade is securely mounted
- Check battery charge level
- Wear eye and ear protection
Specs in practice
- No-Load Speed
- 0 – 2700 min–1
- Capacity (Wood)
- Depth 50 mm
Images and diagrams

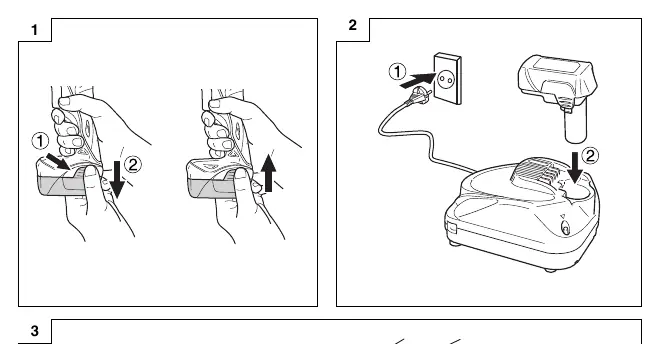

- Fig 1: Battery removal/insertion
- Fig 2: Charging

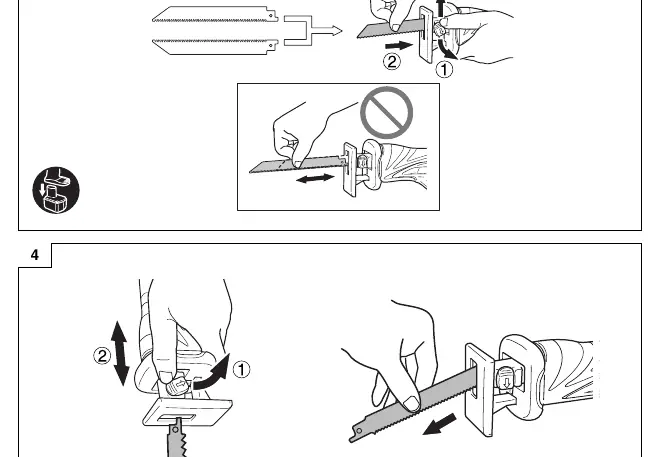

- Fig 3: Blade mounting
- Fig 5: Lubrication points
- Fig 9: Securing workpiece
Model compatibility
- Use only designated genuine HiKOKI batteries.
