Installation Manual for Haier 1U26MADFRA Room Air Conditioner
Comprehensive installation and maintenance guide for the Haier 1U26MADFRA series air conditioner. Includes safety precautions, piping and wiring instructions, vacuuming procedures, and troubleshooting codes.
Quick answers from the manual
Quick answer
- This manual provides installation, maintenance, and troubleshooting procedures for Haier air conditioners using R32 refrigerant. It is intended for qualified personnel. p. 1, 3, 20
Key actions
- Installation p. 20, 21, 22
- Troubleshooting p. 27
First start
- Activate power supply and use remote controller to press ON/OFF. p. 9
Problems and fixes
E7
Communication fault between indoor and outdoor units
p. 27
F13
Lack of refrigerant
p. 27Error codes
| Code | Meaning | Action | Pages |
|---|---|---|---|
| E1 | Indoor temperature sensor failure | Check sensor | p. 27 |
| F20 | High pressure protection | Check system pressure | p. 27 |
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Refrigerant | R32 | Flammable refrigerant | p. 3, 5 |
Where to find it in the PDF
- Installation Instructions p. 3, 5, 6, 7
- Troubleshooting p. 27
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential installation, maintenance, and troubleshooting procedures for the Haier air conditioner series using R32 refrigerant. Important: Installation must be performed by qualified personnel only. The unit uses R32 refrigerant, which is flammable; strict adherence to safety protocols regarding ventilation, fire sources, and leak detection is mandatory.
Safety Precautions
- Refrigerant R32: This unit is filled with R32. Ensure the installation area is well-ventilated and free from ignition sources.
- Installation: Do not install in enclosed spaces. Ensure the foundation can support the unit's weight.
- Electrical: Use a dedicated power supply circuit. Ensure reliable grounding. Do not use tapped wires or extension leads.
- Leakage: If a leak is suspected, ventilate the area immediately and evacuate personnel.
Installation Instructions
Site Selection
- Ensure the installation position allows for easy maintenance.
- Avoid placing obstacles near air inlets/outlets.
- Keep electrical appliances, power switches, and high-temperature items away from the indoor unit.
Piping and Wiring
- Piping: Use specialized connection pipes for R32. Ensure proper tightening of flare nuts using a torque wrench.
- Vacuuming: Use a vacuum pump to evacuate the system. Maintain vacuum for at least 15 minutes and ensure pressure remains below 60Pa.
- Leak Testing: Perform leak testing using soap bubbles or specialized equipment after installation.
- Wiring: Follow the wiring diagram provided in the manual. Ensure all connections are secure and comply with local regulations.
Maintenance and Troubleshooting
Maintenance
- Regularly inspect the unit for refrigerant leaks and grounding reliability.
- Do not use unauthorized parts for replacement.
- Welding of refrigerant pipelines on-site is strictly prohibited.
Troubleshooting
The unit features a self-diagnosis system. Error codes are displayed on the indoor panel or via LED flashes on the outdoor unit. Common issues include communication faults (E7), sensor failures (E1, E2), and refrigerant leaks (F13).
Manufacturer information
Haier
Practical help
Common problems
Refrigerant leak detected
Ventilate the area immediately, close the outdoor unit valves, and contact a qualified technician.
Unit vibrates or makes noise
Check if the installation is firm and the foundation is level.
Condensation or dripping
Verify that the unit is fully insulated and the drainage is smooth.
Communication fault (E7)
Check the wiring connection between the indoor and outdoor units.
Before use
- Ensure the installation area is well-ventilated.
- Verify that the power supply voltage matches the nameplate.
- Confirm that all refrigerant valves are open.
- Check that the unit is properly grounded.
- Ensure no fire sources are within a 3-meter radius.
- Verify that the drainage hose is correctly positioned.
Images and diagrams
- Wiring diagrams illustrate the correct connection points for power and control cables.

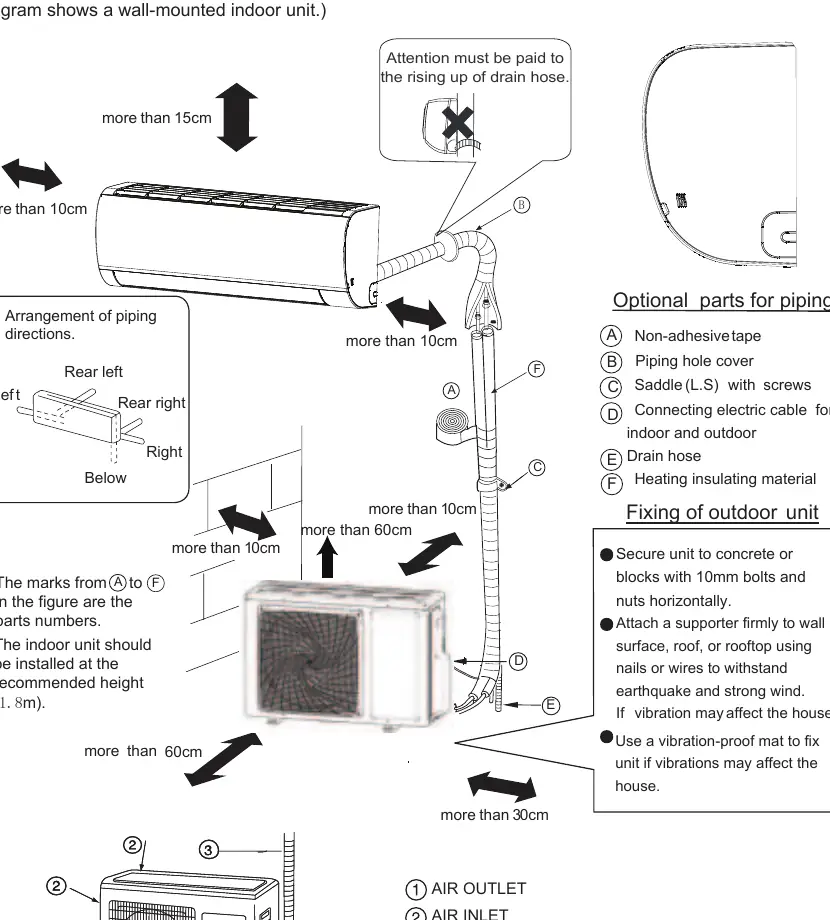

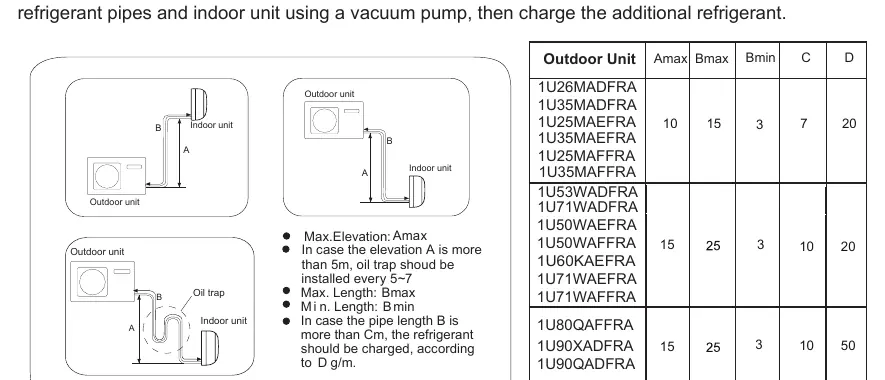

- Piping layout diagrams show the correct positioning of drain hoses and connector wires.
