Haier Ductless Accessories Compatibility Guide
A comprehensive compatibility guide for Haier ductless HVAC accessories, including wind baffles, controllers, cassette panels, and filter boxes. Use this guide to identify the correct parts for your specific indoor and outdoor unit models.
Quick answers from the manual
Quick answer
- This document is a compatibility guide for Haier ductless HVAC accessories. Use the tables on pages 1 and 4 to match wind baffles, controllers, cassette panels, and filter boxes to your specific indoor or outdoor unit model. p. 1, 4
Key actions
- Check accessory compatibility p. 1, 4
- Install wind baffles p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| QACT17B Power Supply | 12V AC | Required power supply for wired controller | p. 3 |
| UACT32A Power Supply | 24VAC | Required power supply for central controller | p. 3 |
Where to find it in the PDF
- Wind Baffles & Top Covers p. 1
- Indoor Unit Accessories p. 2
- Controllers p. 3
- Indoor Unit Compatibility Table p. 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document serves as a compatibility and selection guide for Haier ductless HVAC accessories. It helps users identify which wind baffles, controllers, cassette panels, and filter boxes are compatible with specific indoor and outdoor unit models. Always verify your specific unit model number against the compatibility tables provided on pages 1 and 4 before purchasing or installing accessories.
Wind Baffles & Top Covers
Wind baffles and top covers are designed to protect outdoor units in cold or harsh climates. They are fabricated from 20 gauge G90 galvanized steel.
- Front Wind Baffle: Required for all climates when the unit is mounted on a flat roof or facing prevailing winds.
- Low Ambient Cooling (below 23°F / 5°C): Front, side, and back wind baffles, plus a top cover, are required.
- Low Ambient Heating (below 5°F / -15°C): Side, back wind baffles, and a top cover are strongly recommended.
Indoor Unit Accessories
The guide lists various accessories for indoor units:
- Cassette Panels: Required for cassette indoor units; sold separately. The remote controller (WJ26X35394) is included with the cassette panel.
- Refrigerant Detection Sensor (RDS): Required for certain highwall and cassette indoor units based on room sizing requirements. It is factory-installed on console and ducted units.
- Supply Plenums: Available for ducted indoor models.
- MERV Return Air Filter Boxes: Available for ducted indoor models to improve air filtration.
Controllers
Haier offers several control options:
- Wired Controller (QACT17B): Compatible with all indoor unit types. Features include precise temperature control, fan speed adjustment, and error code reporting.
- Remote Controllers: Different models (WJ26X35393, WJ26X35813, WJ26X35394) ship with specific indoor units (standard highwalls, consoles, or premium highwalls/cassettes).
- 5” Central Controller (UACT32A): A touch screen interface for managing up to 31 ductless zones and 1 central 24V HVAC zone. Requires a 24VAC power supply.
Manufacturer information
Haier
Practical help
Common problems
Unit installed on a flat roof or facing prevailing wind
A front wind baffle is required for all climates.
Low ambient cooling below 23°F (5°C)
Front, side, and back wind baffles, plus a top cover, are required.
Refrigerant Detection Sensor (RDS) requirement
Check room sizing requirements to determine if RDS is needed for highwall and cassette units. It is factory-installed on console and ducted units.
Before use
- Identify your outdoor unit model number.
- Identify your indoor unit model number.

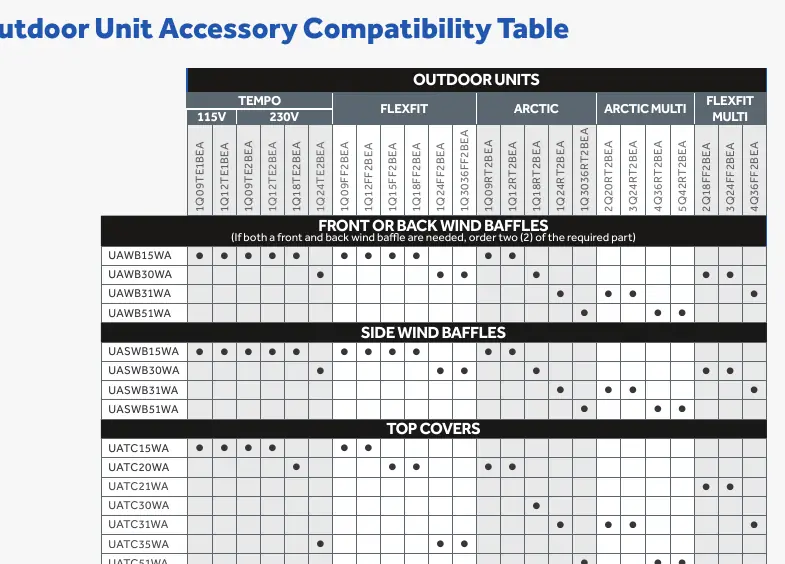

- Consult the Outdoor Unit Accessory Compatibility Table (Page 1) for wind baffles and top covers.

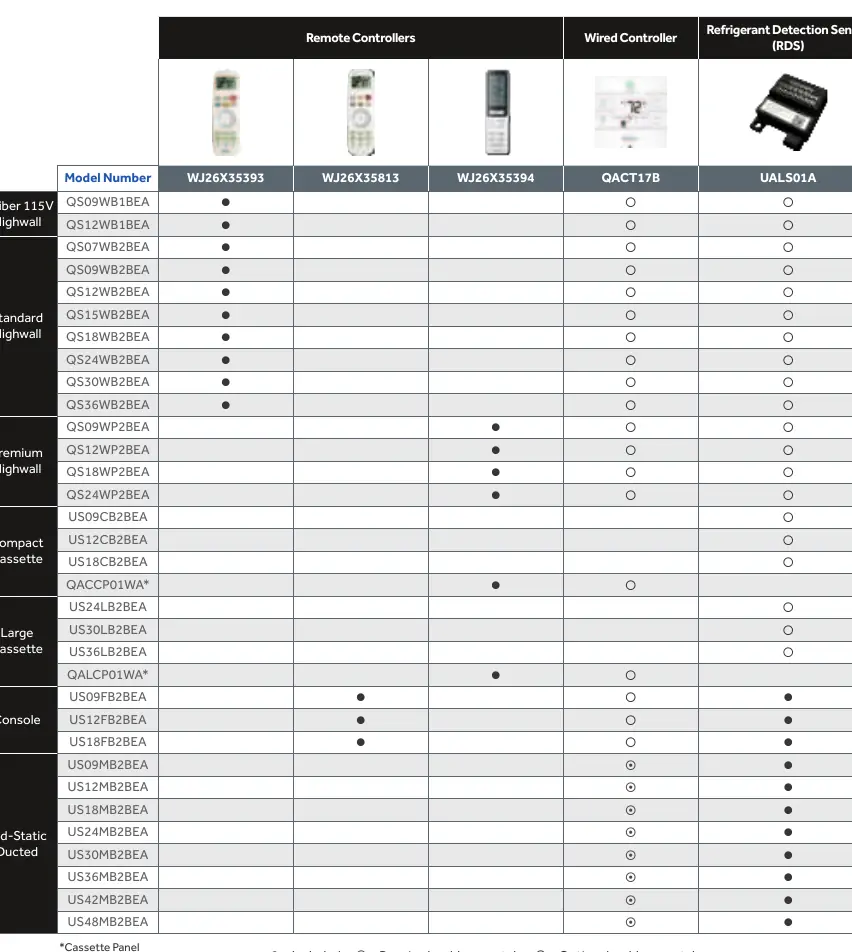

- Consult the Indoor Unit Accessory Compatibility Table (Page 4) for controllers and RDS.
- Verify if the accessory is included with your unit or must be purchased separately.
Specs in practice
- QACT17B Power Supply
- 12V AC
- UACT32A Power Supply
- 24VAC (field supplied transformer needed if not connecting to 24V central HVAC system)
- UACT32A Temperature Set Range (Ductless/VRF)
- 60-86°F (16-30°C)
- UACT32A Temperature Set Range (Central)
- 40-99°F (5-37°C)
Images and diagrams
- The wind baffle assembly diagram shows the correct placement of the front, side, and back baffles, along with the top cover on the outdoor unit.
Model compatibility
- Always cross-reference your specific model number with the compatibility tables on pages 1 and 4.
- Some accessories are factory-installed on specific models; check the compatibility table to see if they are required or optional.
