User Manual for Hama HDMI Splitter 2-Way

Important Information from the Manual

This document provides instructions for the Hama HDMI Splitter 2-Way. It is designed to split one HDMI signal to two output devices. Ensure you have the necessary HDMI cables, as they are not included in the package. If your cable length exceeds 10 meters, a repeater is required to maintain signal quality.

Package Contents

• HDMI splitter with integrated USB cable
• Operating instructions

Safety Notes

• The product is intended for private, non-commercial use only.
• Protect the product from dirt, moisture, and overheating; use only in dry environments.
• Do not bend or crush the cable.
• Do not attempt to service or repair the product yourself.
• Use the product only in moderate climatic conditions.
• Keep out of reach of children.

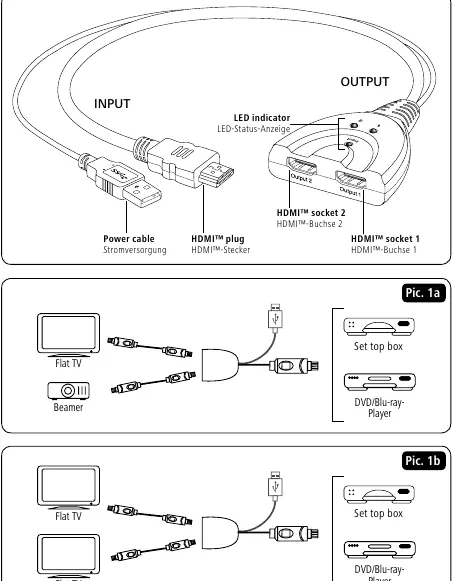

Installation and Connection

Follow these steps to connect your devices:

1. Connect the integrated HDMI plug to your HDMI source device (e.g., Blu-ray player or set-top box).
2. Connect your two HDMI playback devices (e.g., flat-screen TV and projector, or two flat-screen TVs) to the HDMI sockets using HDMI cables (not included).
3. Connect the integrated USB cable to an unused USB port on your TV or set-top box for power. Alternatively, use an external USB power supply unit.
4. Switch on the desired source and playback devices.

Troubleshooting

If you encounter issues, check the following:

• No picture: Ensure all cables are connected correctly, the correct channel is set on the output device, and all devices are switched on.
• No sound: Verify that all devices are connected properly and switched on.

Care and Maintenance

Clean this product only with a slightly damp, lint-free cloth. Do not use aggressive cleaning agents.

Technical Data

• Connections: 1 HDMI input, 2 HDMI outputs
• HDMI resolutions: 24/30Hz/2160P, 24/50/60Hz/1080p/1080i/720p/576p/576i/480p/480i
• Supported audio formats: DTS-HD/Dolby-trueHD/LPCM7./DTS/Dolby-AC3/DSD HD(HBR)
• Power supply: 5V via USB cable
