This document provides installation and maintenance instructions for the Hansgrohe Fixfit series wall outlets. The product is designed exclusively for drinking water and must be installed in compliance with local plumbing codes and AS 3500 standards. Ensure the included backflow preventer is installed to meet AS/NZS 2845.1 requirements.
Safety Notes
- Wear gloves during installation to prevent crushing and cutting injuries.
- The product is intended for bathing, hygienic, and body cleaning purposes only.
- Do not use silicone containing acetic acid during installation.
Installation Instructions
- Inspect the product for transport damage before installation; claims for surface damage will not be honored after installation.
- Pipes and fixtures must be installed, flushed, and tested according to applicable standards.
- Ensure the backflow preventer is installed. Note that the necessary sleeve must be provided by the installer.
- Follow the specific assembly sequence provided in the diagrams, ensuring proper wall clearance and connection to G 1/2 fittings.
Maintenance
Non-return valves must be checked regularly in accordance with EN 806-5 and national or regional regulations, at least once a year.
Contact Information
Hansgrohe, Auestraße 5-9, D-77761 Schiltach. Phone: +49 (0) 78 36/51-1282. Fax: +49 (0) 7836/511440. Email: [email protected]. Internet: www.hansgrohe.com
Official resources from the manual
Manufacturer information
Hansgrohe SE
Practical help
Common problems
Surface damage claims
Inspect the product for transport damage before installation. Claims for surface damage are not honored after the product has been installed.
Backflow compliance
The enclosed backflow preventer must be installed to meet AS/NZS 2845.1 requirements. The installer must provide the necessary sleeve.
Before use
- Inspect product for transport damage
- Ensure pipes are flushed and tested
- Verify compliance with local plumbing codes (AS 3500)
- Ensure backflow preventer is available
- Obtain necessary sleeve for backflow preventer
- Use non-acetic acid silicone
Images and diagrams

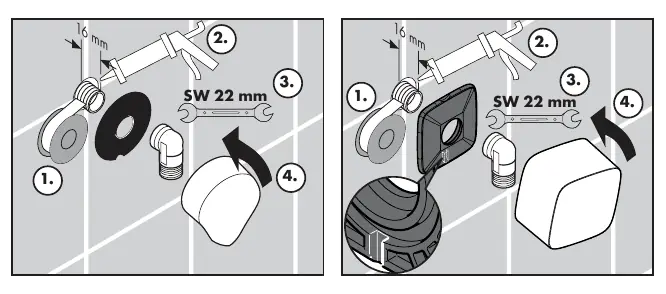

- Page 2 shows the assembly sequence: 1. Wall preparation, 2. Applying sealant, 3. Tightening with a 22mm wrench, 4. Final assembly.

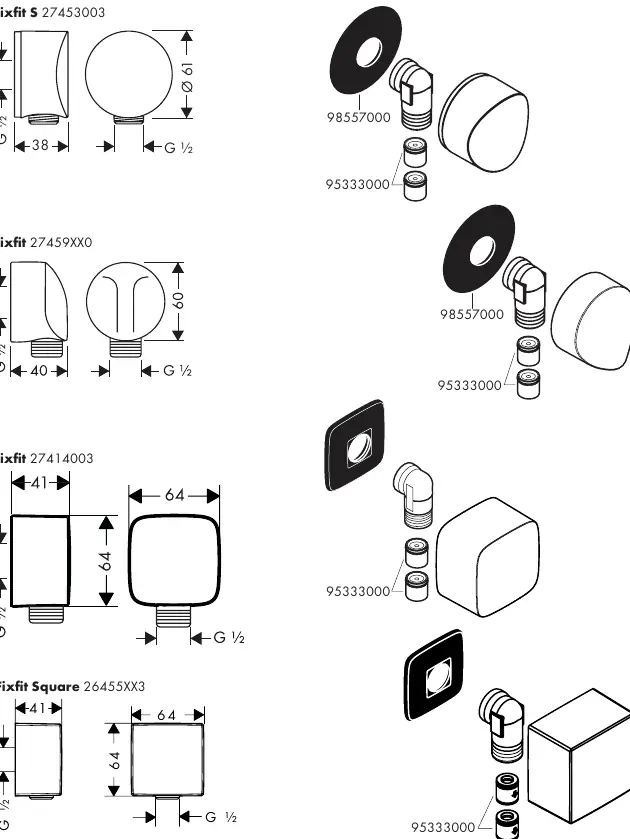

- Page 3 provides dimensional drawings for Fixfit S, Fixfit, and Fixfit Square models, showing G 1/2 connections and component breakdown.
