Installation Manual for Hansgrohe Tecturis and Rebris Pillar Valves
A comprehensive installation and user guide for Hansgrohe Tecturis and Rebris series pillar valves. Includes step-by-step mounting instructions, technical specifications, and maintenance advice.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides installation and usage instructions for the Hansgrohe Rebris S 80, Rebris E 80, Tecturis E 80, and Tecturis S 80 pillar valves. The product is designed exclusively for drinking water. It is recommended to flush the system after installation and after prolonged periods of non-use (e.g., overnight), discarding the first half-liter of water.
Safety and Installation
- Wear gloves during installation to prevent crushing and cutting injuries.
- Inspect the product for transport damage before installation; surface or transport damage reported after installation will not be honored.
- Pipes and fixtures must be installed, flushed, and tested according to applicable national standards.
- Do not use silicone containing acetic acid.
Technical Data
- Operating pressure: max. 1 MPa
- Recommended operating pressure: 0.1 - 0.5 MPa
- Test pressure: 1.6 MPa
- Equipped with EcoSmart flow limiter.
Installation Procedure
The installation steps vary slightly by model (Rebris vs. Tecturis). Generally, the process involves:
- Preparing the mounting surface (ensure correct hole diameter).
- Installing the valve body and sealing.

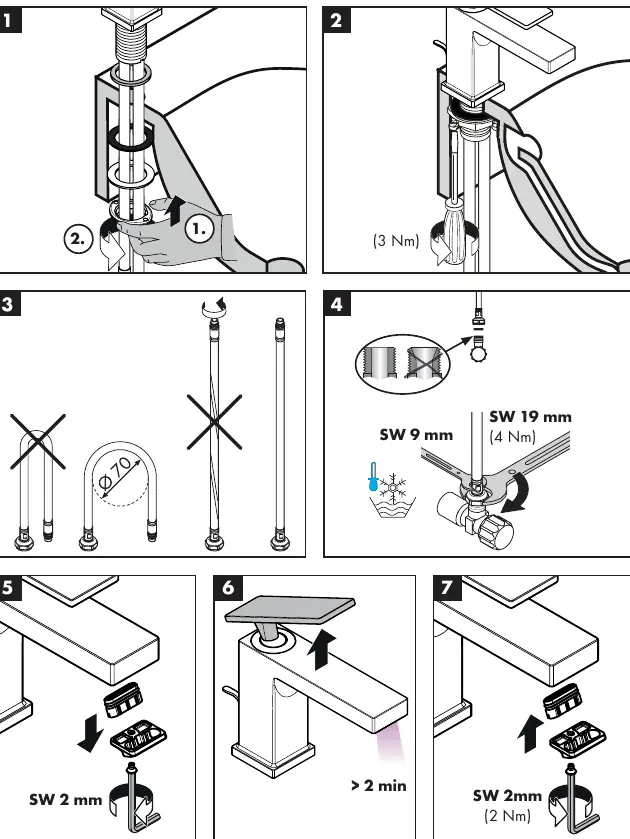

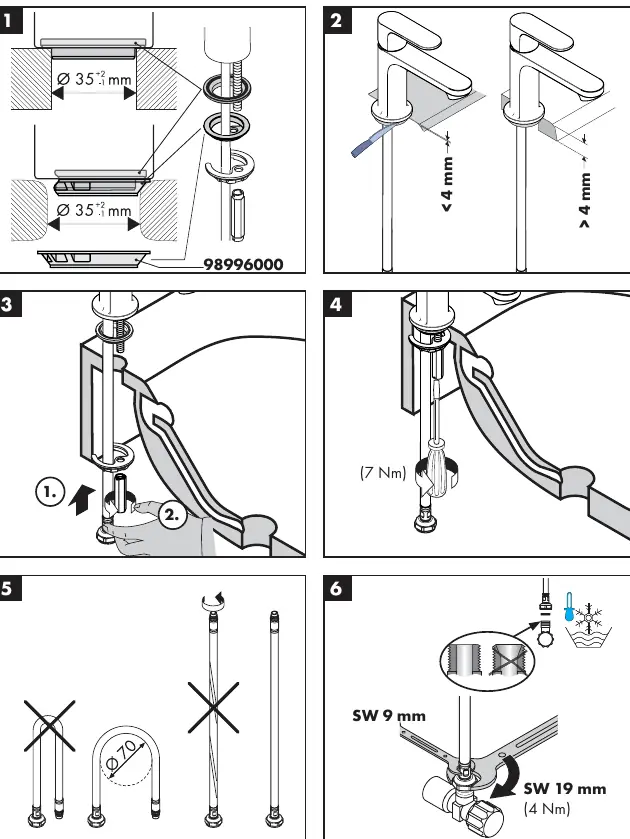

- Connecting the water supply lines (ensure proper torque settings, e.g., 7 Nm for Rebris, 3 Nm for Tecturis).
- Flushing the system for at least 2 minutes after installation.
Maintenance and Cleaning
Regular cleaning is recommended. For detailed cleaning instructions, warranty information, and contact details, visit the official website at www.hansgrohe.com/cleaning-recommendation.
Official resources from the manual
Manufacturer information
Hansgrohe SE
Practical help
Common problems
Surface or transport damage
Inspect the product thoroughly before installation. Damage reported after installation is not covered.
Water quality after stagnation
Flush the system for at least 2 minutes after prolonged periods of non-use; do not use the first half-liter for drinking.
Before use
- Check for transport damage before starting.
- Ensure pipes are flushed and tested according to local standards.
- Verify that no acetic acid-containing silicone is used.
- Ensure the valve is installed with the provided seals.
Specs in practice
- Operating pressure
- Maximum pressure the valve can handle (1 MPa).
- Recommended operating pressure
- Optimal pressure range for best performance (0.1 - 0.5 MPa).
Images and diagrams
- Flow diagrams show the relationship between pressure (MPa) and flow rate (l/min).
- Dimensional drawings provide necessary clearance and mounting hole sizes.
Model compatibility
- Designed exclusively for drinking water systems.
- Compatible with standard G 3/8 supply connections.
