User Manual for Harbor Freight CoverPro 10 Ft. x 17 Ft. Portable Garage
Quick guide for the Harbor Freight CoverPro 10 Ft. x 17 Ft. Portable Garage (Item 62860). Includes assembly steps, anchoring instructions, maintenance tips, and safety precautions.
Table of contents
Manual images
Click an image to enlargeQuick Guide
This portable garage is designed for temporary use only. It is not intended for long-term shelter and does not meet tent flammability standards. Assembly requires at least 3 workers. Do not assemble in windy conditions and ensure the installation surface is flat, level, and hard. Always check for hidden utility lines before anchoring.
Specifications
- Overall Dimensions: 10' W x 17' L
- Center Height: 8'
- Side Height: 6' 3"
- Pole Diameter: 1.34"
Assembly Instructions
Before starting, review all safety information. Finger tighten all connections until the entire frame is assembled, then tighten with a wrench.
Frame Assembly

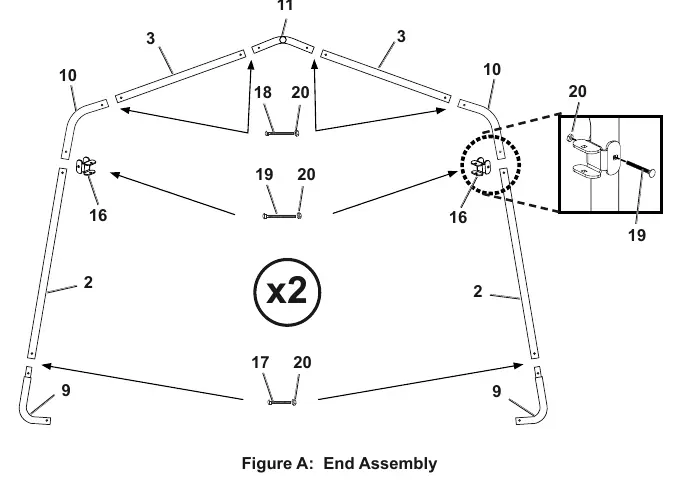

- Construct two End Assemblies using 3-Way Connectors, Rafters, Roof Corners, Stabilizers, Corner Legs, Corner Feet, Bolts, and Nuts.
- Construct two Middle Assemblies using 4-Way Connectors, Rafters, Roof Corners, Stabilizers, Middle Legs, Middle Feet, Bolts, and Nuts.

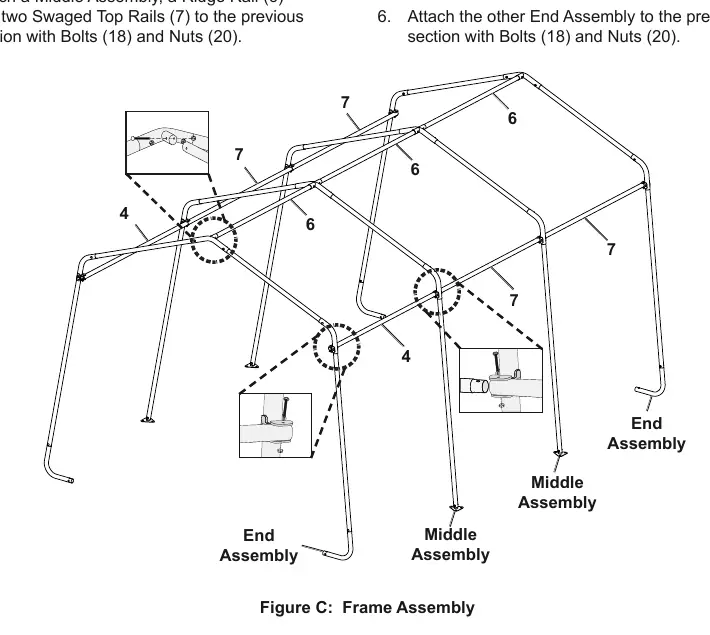

- Connect the End and Middle assemblies using Ridge Rails and Top Rails.
Anchoring the Frame
Once the frame is positioned, leveled, and squared:

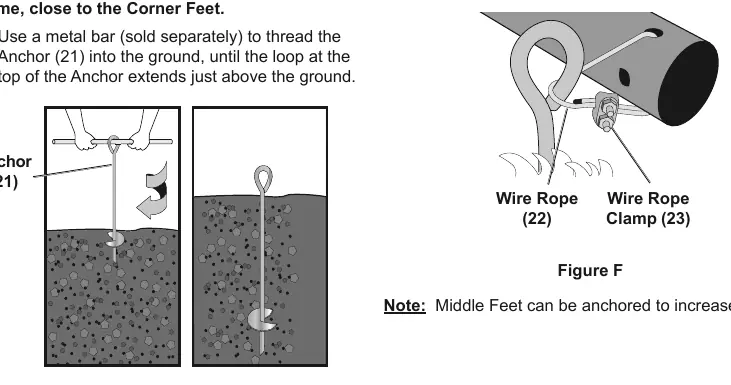

- Use a metal bar to thread the Anchors into the ground until the loop is just above the surface.
- Insert a Wire Rope through the Anchor and Corner Foot.
- Secure the Wire Rope using a Wire Rope Clamp and tighten the nuts evenly.
- Repeat for all corners. Middle feet can also be anchored for increased stability.
Attaching Covers
- Front and Back Covers: Position covers with zippers facing outside. Remove the Ridge Rail from the 3-Way Connector, place the strap over the connector, and reattach the rail. Tighten straps to wrap flaps around the frame. Secure to Corner Legs using Ratchets.

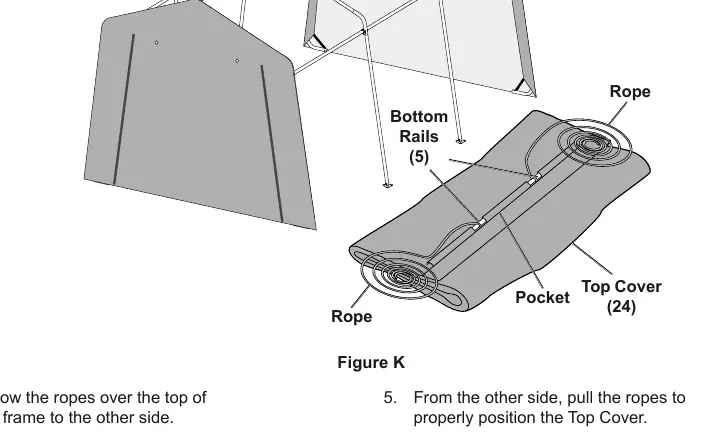

- Top Cover: Lay the cover on the ground, slide Bottom Rails into the pocket, and tie ropes to the rails. Throw ropes over the frame, pull the cover into position, and secure corners to the outside of the Corner Legs with Ratchets.
- Final Steps: Unzip and roll up the front cover, then install Bungee Cords. Secure Bottom Rails to legs using Corner/Middle Clamps.
Maintenance
- Monthly Inspection: Check for loose ratchet tie-downs, anchors, tube connections, and rail clamps. Inspect for torn/frayed covers or ropes, and cracked/bent parts.
- Cleaning: Remove debris from the cover using a broom or mop. Clean periodically with mild soap and water. Do not use bleach or harsh abrasives.
Manufacturer information
Harbor Freight Tools
Practical help
Common problems
Frame is unstable or shifting
Ensure the frame is leveled and squared. Check that all anchors are properly installed and wire ropes are tightened.
Cover is loose or flapping
Tighten the ratchets on the corners and ensure all straps are pulled taut. Do not overtighten to avoid damaging the straps.
Parts missing or damaged
Contact Harbor Freight technical support at 1-888-866-5797.
Before use
- Ensure assembly area is flat, level, and hard.
- Verify no hidden utility lines are present before anchoring.
- Ensure at least 3 workers are available for assembly.
- Check that all bolts and nuts are tightened before use.
- Ensure the cover is free of accumulated snow, rainwater, or debris.
Specs in practice
- Overall Dimensions
- 10 feet wide by 17 feet long footprint.
- Center Height
- 8 feet at the highest point of the roof.
Images and diagrams
- Figure A/B: Shows the construction of end and middle frame assemblies.
- Figure D: Illustrates how to square and level the frame using diagonal measurements.
- Figure E/F: Details the anchoring process using wire rope and clamps.

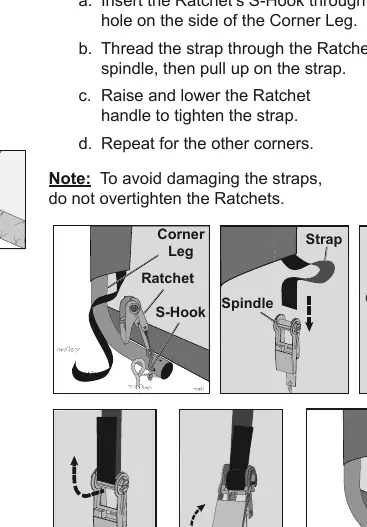

- Figure J: Shows the correct way to thread straps through ratchets to secure covers.
Model compatibility
- For temporary use only; not for long-term shelter.
- Does not meet tent flammability standards; do not use grill, heater, or ignition sources inside.
