Parts List and Circuit Diagram for Hendi Percolator Concept Line 13L
Technical guide for Hendi Percolator Concept Line 13L (211588). Includes a detailed exploded view, complete bill of materials with part numbers, and a circuit diagram for maintenance and repair.
Table of contents
Manual images
Click an image to enlargeTechnical Documentation Overview
This document serves as a technical reference for the Hendi Percolator Concept Line 13L (211588). It includes an exploded view of the appliance, a comprehensive bill of materials (BOM) for identifying replacement parts, and a circuit diagram for electrical troubleshooting.

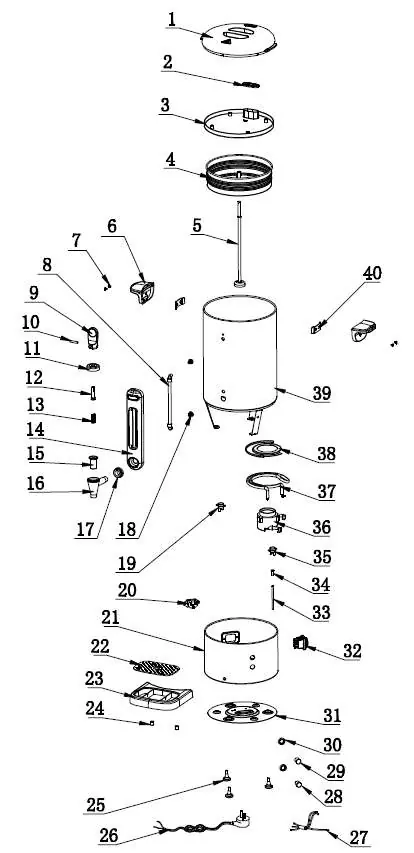

Exploded View and Parts List
The exploded view illustrates the assembly of the percolator, identifying 40 individual components. The Bill of Materials (BOM) lists these items, providing part numbers for components such as the heating elements, faucet assembly, and thermostat. Please note the following regarding the parts list:
- nss: Indicates the item is not sold separately.
- n/a: Indicates the item is not available.
- Included items: Some part numbers include multiple sub-components (e.g., the faucet assembly includes the lever, pin, cover, axle, spring, and gasket).
Electrical Specifications
The appliance utilizes two distinct heating elements:
- Boiler heating element: 1650W.
- Keep-warm heating element: 100W.
Safety components are integrated into the electrical system to prevent overheating:
- Thermostat: Regulates temperature at 88°C.
- Hi-limiter: Safety switch that cuts power at 175°C.
- Thermal fuse: Final safety protection that blows at 216°C (not shown in the drawing; obtain locally).

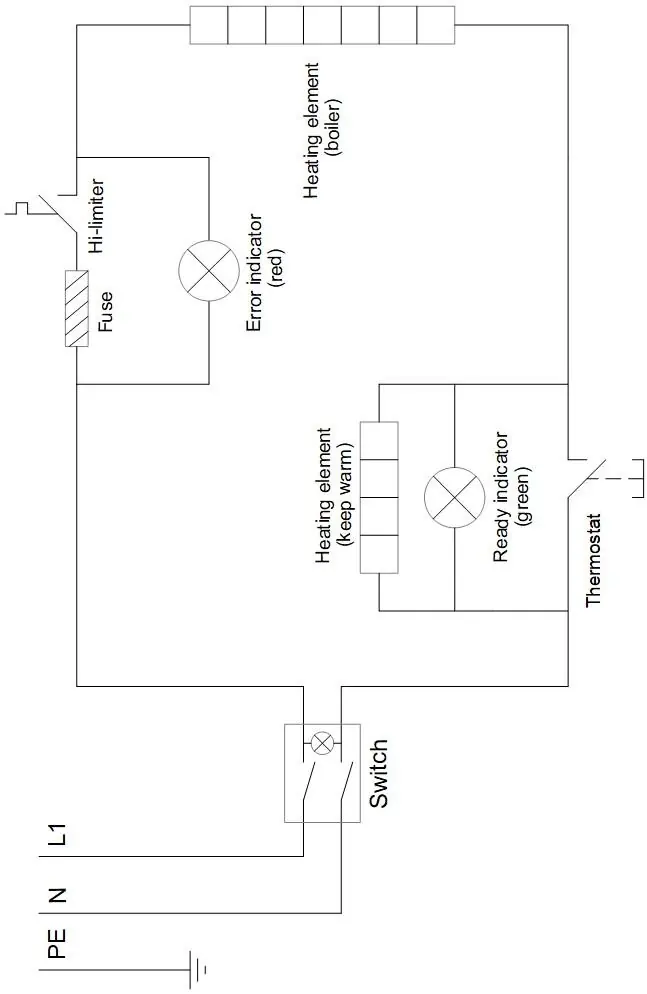

Circuit Diagram
The wiring diagram details the electrical connections between the power input, main switch, heating elements, indicator lights, and safety limiters. This diagram is intended for use by qualified service personnel to diagnose electrical faults, such as issues with the heating elements or indicator lights.
Manufacturer information
HENDI Tools for Chefs
Practical help
Common problems
Appliance not heating
Check the hi-limiter (175°C) and thermal fuse (216°C) for continuity using the circuit diagram.
Leaking faucet
Inspect the faucet silicone gasket (Item 15) and the faucet assembly (Item 16) for wear or damage.
Before use
- Verify the model number is 211588.
- Ensure the power cord (Item 26) is securely connected to the C14 socket (Item 20).
- Check that the drip tray (Item 23) is properly positioned.
- Ensure the lid (Item 3) is correctly seated.
Specs in practice
- Heating element (boiler)
- 1650W element responsible for the brewing process.
- Heating element (keep warm)
- 100W element responsible for maintaining the temperature.
- Thermal fuse
- Final safety protection that blows at 216°C.
Images and diagrams
- The circuit diagram shows the path from the power input through the switch to the heating elements and safety limiters.
- The red indicator light is associated with the boiler heating element.
- The green indicator light is associated with the keep-warm heating element.
Model compatibility
- This parts list is specific to the Hendi Percolator Concept Line 13L, model 211588.
