Instruction Manual for Hikoki NT 1865DAA & NT 1865DSA Cordless Finish Nailer
Quick guide for the Hikoki NT 1865DAA and NT 1865DSA cordless finish nailers, covering operation modes, nail loading, depth adjustment, maintenance, and troubleshooting.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential operating instructions for the Hikoki NT 1865DAA and NT 1865DSA cordless finish nailers. Always ensure the battery is removed before performing maintenance, clearing jams, or adjusting the tool. Wear eye and ear protection during operation.
Operation modes
The nailer features two operation modes, selectable via the operation panel (except for New Zealand models of NT1865DSA, which are fixed to full sequential mode):
- Full Sequential Actuation: Press the push lever against the wood, then pull the trigger.
- Contact Actuation: Allows for rapid nailing by holding the trigger and bouncing the push lever against the workpiece.

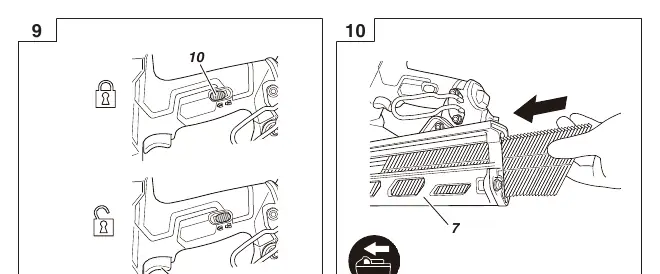

Loading nails
- Remove the battery.
- Insert the nail strip into the back of the magazine.
- Slide the strip forward.
- Push the nail feeder (A) to engage the nail feeder (B) with the nail strip.
Adjusting the nailing depth
If nails are driven too deep or too shallow, adjust the depth:
- Remove the battery.
- Turn the adjuster on the tool.
- Turn toward the shallow side if nails are too deep, or toward the deep side if nails are too shallow.
Maintenance and troubleshooting
Regularly clean the magazine and the push lever mechanism using a blower or brush to prevent jams. If the tool fails to operate, check the battery charge, ensure the push lever is not obstructed, and verify that the trigger lock is disengaged. If the tool is too hot or cold, allow it to reach an adequate temperature before use.
Manufacturer information
HiKOKI
Practical help
Common problems
Nailer does not operate (Power switch ON)
Ensure the tool is pressed firmly against the workpiece, the trigger is pulled firmly, and the switch lock lever is in the OFF position.
Nailer operates, but no nail is driven
Check for a jam, ensure the magazine is clean, and verify that the correct nails are being used.
Weak drive or slow cycle
Adjust the nailing depth setting or check if the driver blade is worn.
Before use
- Ensure all screws are tightened.
- Verify that the push lever and trigger move smoothly.
- Check that the battery is fully charged.
- Ensure the correct nail type is loaded.
- Confirm the nailing operation mode is set correctly.
Specs in practice
- Applicable Nail (NT1865DAA)
- 15 Gauge finish nails (34° angle), 32 mm to 64 mm length.
- Applicable Nail (NT1865DSA)
- 16 Gauge finish nails (straight), 25 mm to 64 mm length.
Images and diagrams
- Fig. 1-2: Identification of parts and operation panel.
- Fig. 6: Power switch operation.
- Fig. 8: Nailing operation mode selection.
- Fig. 10-12: Nail loading procedure.
- Fig. 17-18: Nailing depth adjustment.
Model compatibility
- New Zealand models of NT1865DSA are restricted to full sequential actuation mode only.
- Use only genuine Hikoki batteries.
- Operating temperature range is 0°C to 40°C.
