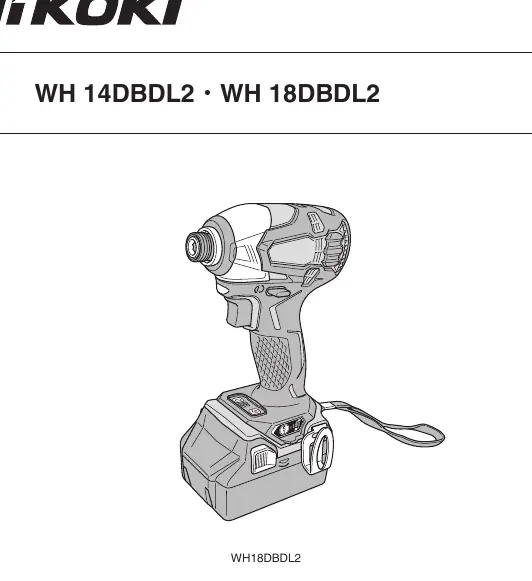

User Manual for HiKOKI WH 14DBDL2 and WH 18DBDL2 Cordless Impact Driver

Quick guide from the manual

This manual provides essential information for the safe and efficient operation of the HiKOKI WH 14DBDL2 and WH 18DBDL2 cordless impact drivers. Always read the safety warnings before use.

Safety Warnings

Follow all general power tool safety warnings. Specifically for this impact driver, hold the tool by insulated gripping surfaces when performing operations where the fastener may contact hidden wiring. Ensure the battery is securely installed and do not allow foreign matter to enter the battery connection hole.

Battery Charging

Charge the battery using the specified charger. The pilot lamp indicates the charging status:

• Blinking red: Before charging.
• Continuous red: While charging.
• Blinking red (0.5s): Charging complete.
• Blinking red (1s): Overheat standby.
• Flickering red: Charging impossible (malfunction).

Operation

The tool features a tightening mode selector switch on the side of the body. Modes include:

• Normal mode: For smooth and gentle tightening.
• Power mode: For heavy-load work requiring more force.
• Self-drilling screw mode: For tightening self-drilling Teks screws.

Maintenance and Inspection

Regularly inspect the driver bit for wear. Keep the motor winding clean and free from oil or water. Store the tool in a place where the temperature is less than 40°C and out of reach of children.

Troubleshooting

If the tool does not operate normally, check the battery charge, ensure the battery is inserted firmly, and check for foreign matter in the battery terminal. If the tool stops suddenly, it may be overloaded or overheated; allow it to cool down.
