HiKOKI CV 18DA Cordless Multi-Tool User Guide
Quick guide for the HiKOKI CV 18DA Cordless Multi-Tool, covering battery charging, tool mounting, operation, maintenance, and safety warnings.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential operating and safety instructions for the HiKOKI CV 18DA Cordless Multi-Tool. Always read the full safety warnings before use. Key operations include battery installation, mounting accessories, and adjusting the vibration frequency.
Device Description

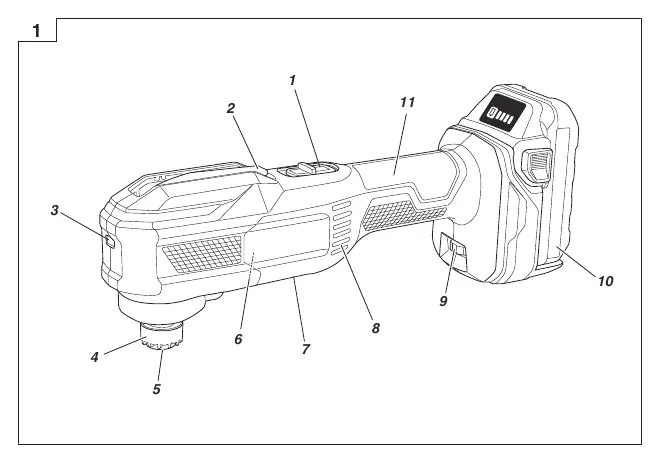

The CV 18DA is a cordless multi-tool featuring a variable speed dial (1-6), an LED light for visibility, and a quick-release lever for changing accessories. It is designed for flush cutting, pocket cutting, peeling, and sanding.
Mounting and Operation
- Battery: Slide the battery into the tool until it clicks. Use the indicator switch to check remaining power.
- Accessories: Push the lever down to open the attachment ring, insert the desired blade or pad, and release the lever to lock it in place.
- Dust Collection: Attach the dust collection adapter (for use with specific models) to the tool.
- Operation: Use the switch to turn the tool on/off. The LED light activates automatically when the tool is on.
- Speed Adjustment: Use the dial to set the vibration frequency between 6000 and 20000 min-1 based on the material and task.
Maintenance and Inspection
- Tool Inspection: Regularly check the application tool for wear. Replace dull or damaged blades immediately to prevent motor overload.
- Screws: Periodically inspect all mounting screws and ensure they are tight.
- Motor: Keep the motor windings clean and free from oil or water.
- Terminals: Keep the tool and battery terminals free of dust and swarf to prevent short circuits.
- Cleaning: Wipe the exterior with a soft, dry cloth or a cloth moistened with soapy water. Do not use solvents.
Safety
Always wear eye protection. Do not use the tool in wet conditions. Hold the tool firmly by the insulated gripping surfaces. If the tool is overloaded, the motor may stop; release the switch and clear the cause of the overload before restarting.
Manufacturer information
HiKOKI
Practical help
Common problems
Motor stops during operation
The tool may be overloaded or the battery may be overheated. Release the switch, clear the cause of the overload, or let the battery cool down.
Battery does not charge
Check if the battery is fully inserted. Ensure no foreign matter is on the terminals. If the pilot lamp still does not blink, the battery or charger may be faulty.
Tool vibrates excessively or accessory is loose
Follow the instructions in Fig. 5 to re-attach the application tool securely.
Before use
- Ensure the work area is clean and well-lit.
- Check that the battery is fully charged.
- Verify that the application tool is securely attached.
- Ensure no hidden obstructions (wiring, pipes) are in the cutting area.
- Wear appropriate personal protective equipment (eye protection, dust mask).
Specs in practice
- No-load speed
- 6000–20000 min-1 (adjustable via dial)
Images and diagrams
- Fig. 2: Correct holding position on the housing.
- Fig. 3: Battery removal and insertion.

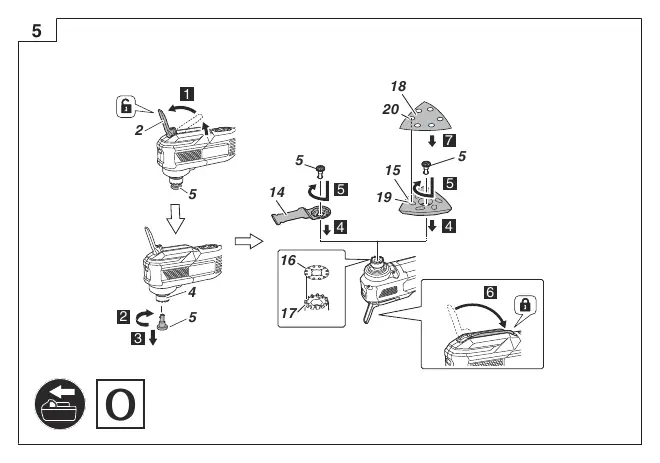

- Fig. 5: Procedure for mounting application tools.
- Fig. 7: Switch operation and LED light.
- Fig. 8: Adjusting the operating speed dial.
Model compatibility
- Use only genuine HiKOKI batteries.
- Dust collection adapter is for use with MSU93D only.
